Caution disabling the hood switch on the bar feeder is required to view
the laser target and align the bar feeder.
Caution manually moving the pusher with the pendant when the hood is
disabled.
Note: As alignment is adjusted verify distance from bar feeder to lathe does
not change.
String Alignment Procedure
Not supplied is the rear centering plug and spindle plug. These items can be made for the string
alignment. These items are not available from Edge Technologies. The string is included with all
Minuteman models. The standard alignment procedure by an Edge Technician is by laser
alignment.
The following steps for basic string alignment-
1. In order to achieve a correct alignment, prepare a nylon string 1.27mm. (.050”).

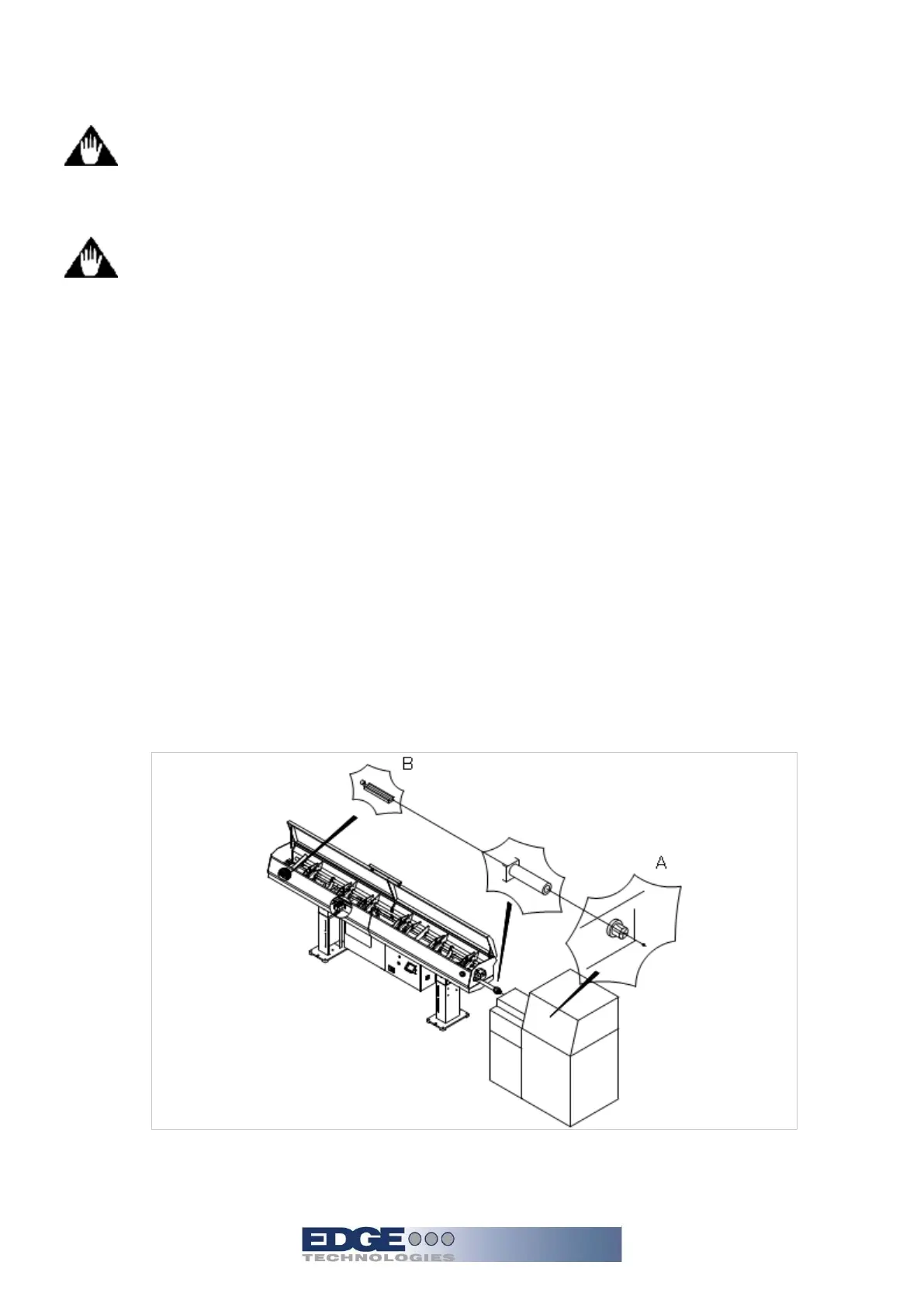

2. Pull the nylon string from the lathe (A) to the end of the bar feeder (B)
