Caution cutting of the hard nose should be carefully performed.
The hard nose on the Minuteman is cut to size once the bar feeder is aligned and anchored. The
oil gathering device is then attached to the end of the nose for ejected oil to gather and return to
the with a drain hose to the bar feeder. Each hardnose internal diameter is specific to the
channel set used.

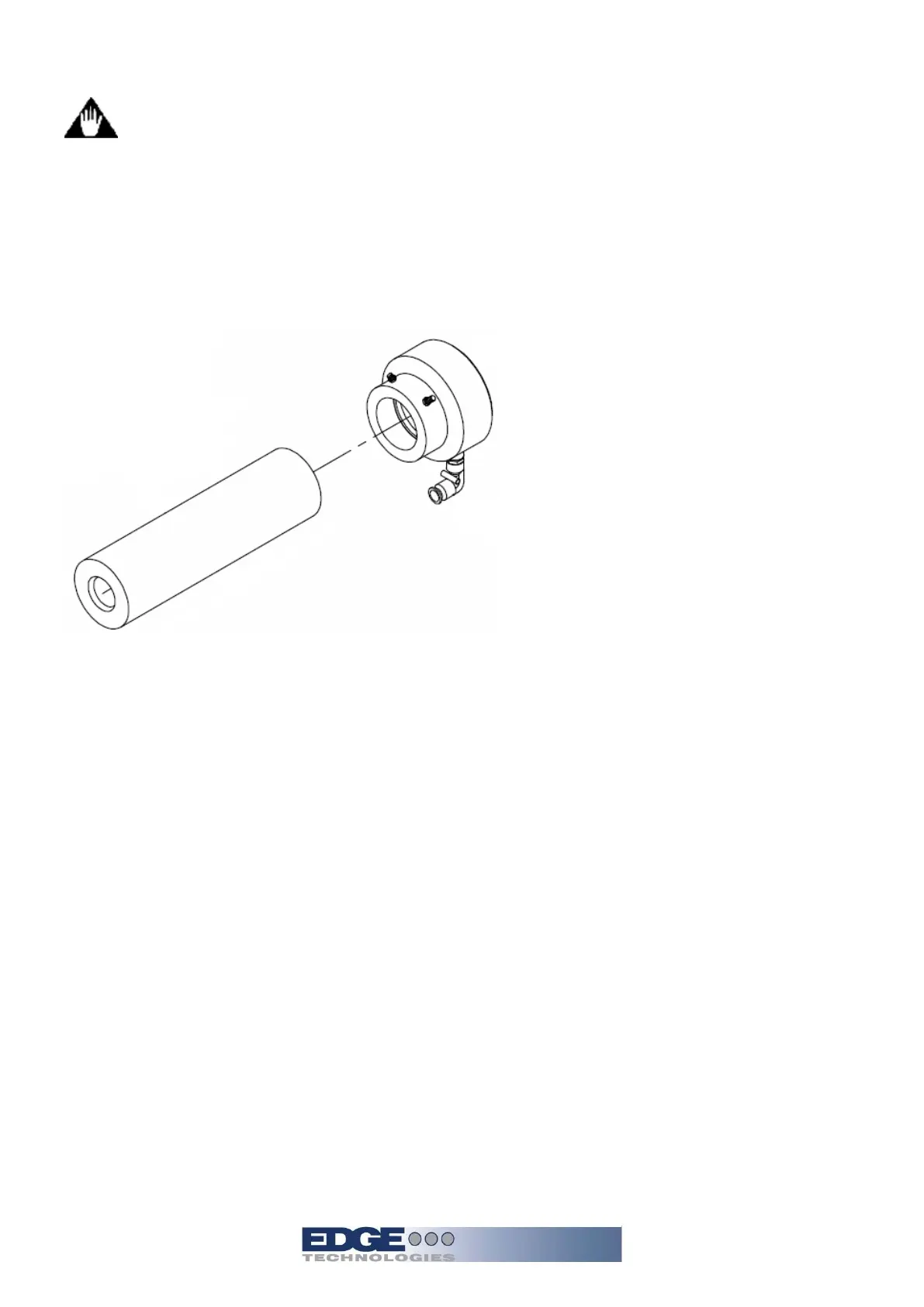

The hardnose must be cut slightly shorter
to allow for the installation of the oil
gathering device at the end.
The oil collector is held in place by 2 screws and lock nuts. There is about 2 inches of insertion
avaiable of the hard nose. This is used to close up any gap between the lathe sheet metal and
attaching seal.
