MINUTEMAN 320
49
REV 13.1:2020
4.11 Axial Track Programing Tech Tip
Anytime bar feed configuration is changed from one operational mode to another certain
position parameters must be changed in order for proper operation. If these parameters are
not changed machine alarms can be produced or excessive remnants will be observed.
During initial setup it is required to measure and record the following
• Parameters, Max end of bar
• Facing distance
• MAVD opening position
Warning do not allow bar pusher collet to make contact with lathe
collet during operation. Damage to machines could occur.

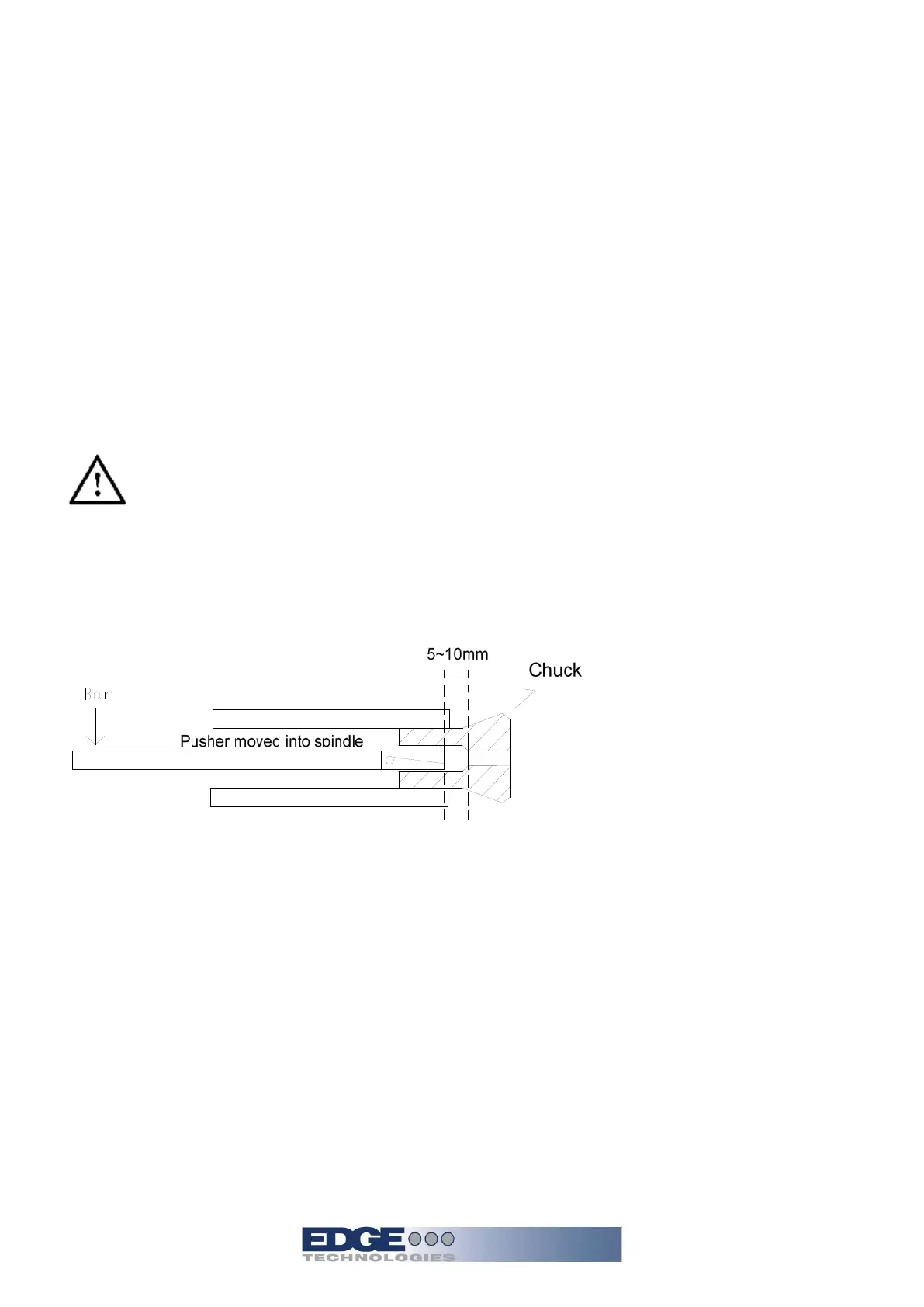

A 5 mm to 10mm clearance must be maintained between the lathe collet and bar feeder collet
when setting the max end of bar position.
