4.22 Hardnose Oil Collector
Caution install the hardnose when lathe and bar feeder is in
emergency stop.

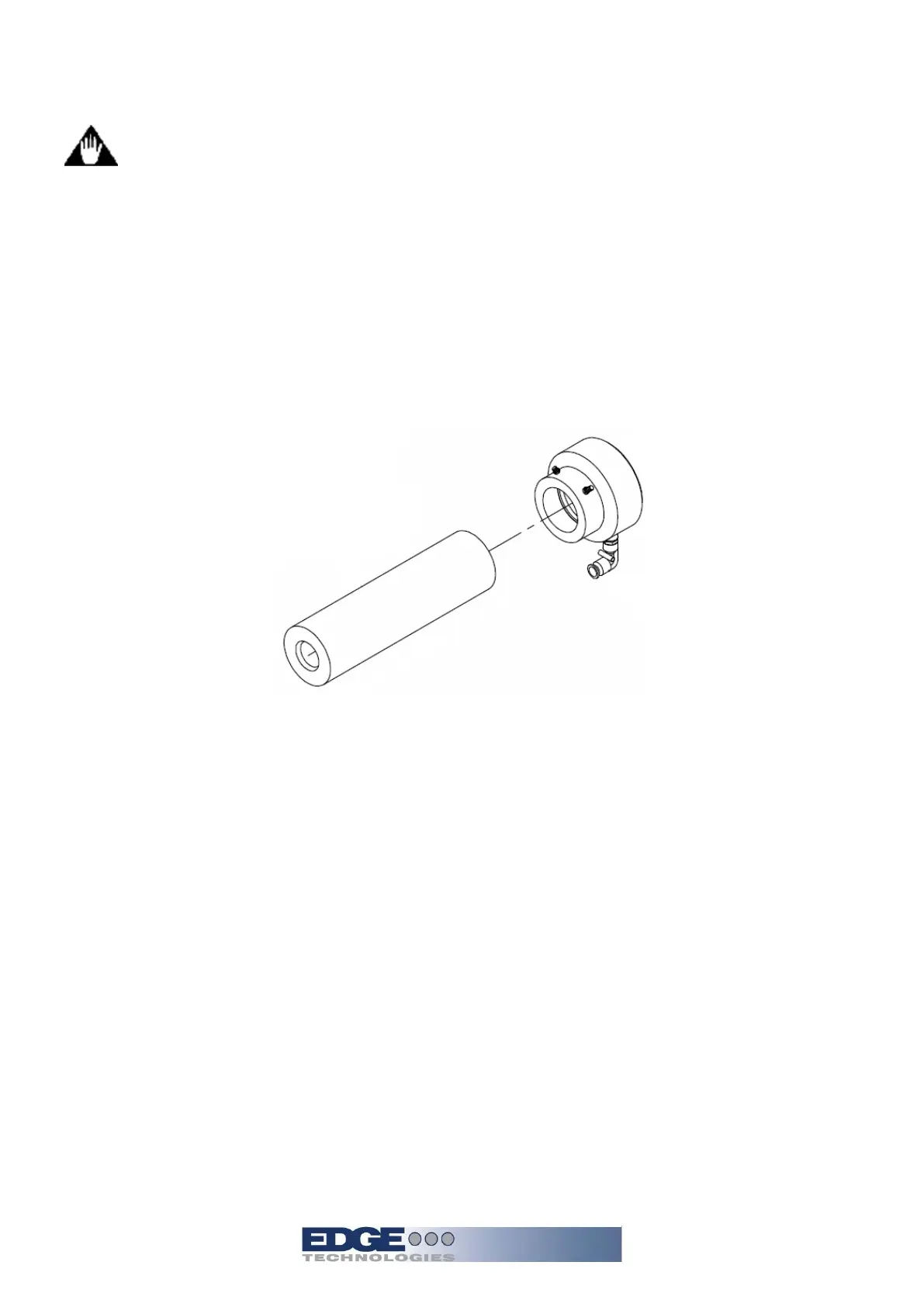

The oil collector on the hard nose is plumbed to allow oil flow back to the bar feeder. The inside
diameter of the hard nose must match the pusher and guide channel set. When measuring the
distance requirements, be sure the lathe spindle liner is installed. Allow for space to remove the
oil collector from the hardnose without interference. Anytime a new hard nose is used it must be
cut to fit.
