MINUTEMAN 320
70
REV 13.1:2020
Caution when removing or installed the drip pan be sure lathe and bar
feeder are in emergency stop.
The tray setup with the retaining ring is used only on the 3 stage nose.

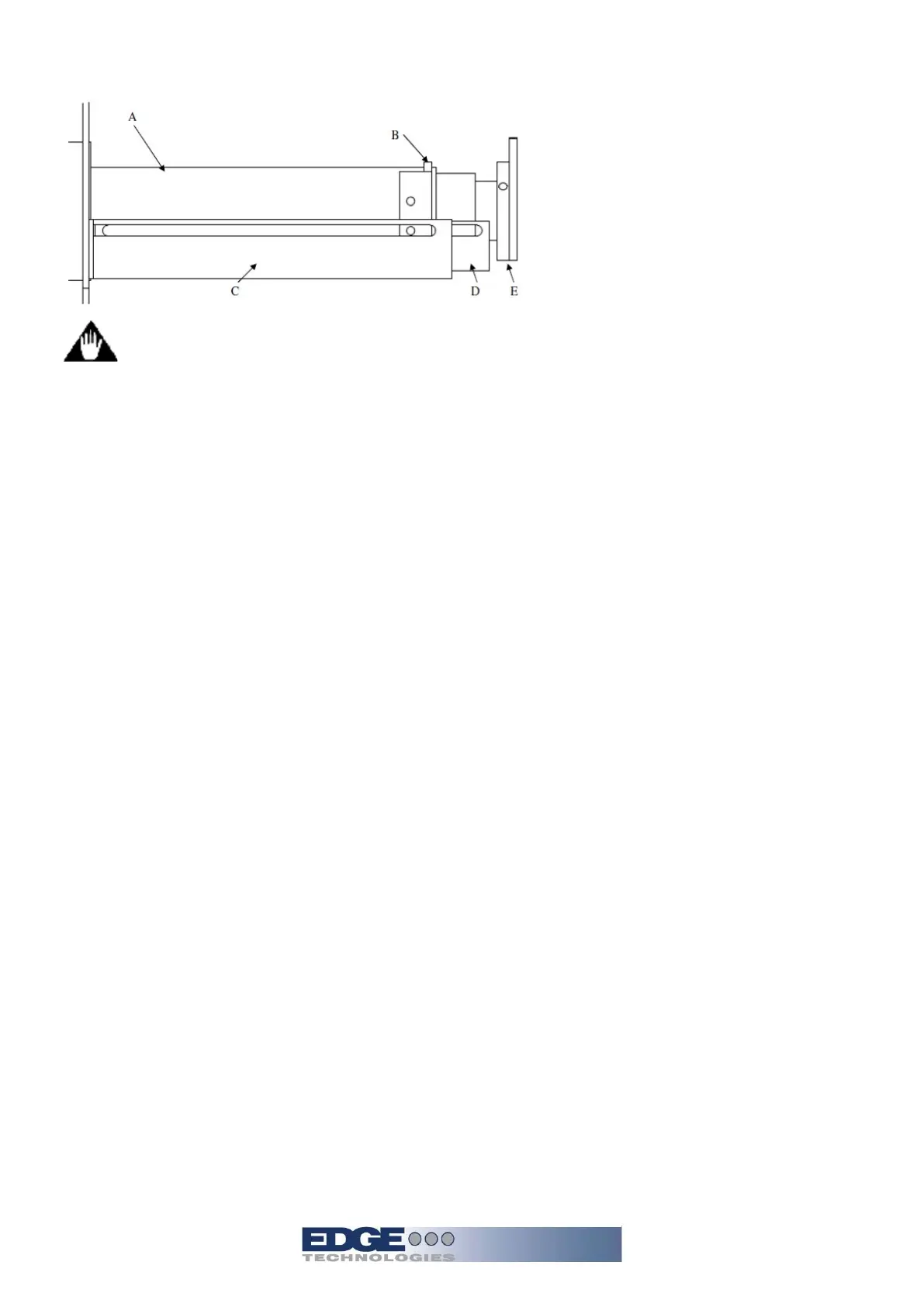

Installation steps of the drip pan
MAVD must be installed and telescoping nose must be cut to installation length.
1. Be sure the lathe headstock is at least 6 inches from the Z- position (position closest to
the bar feeder)
2. Set emergency stop on lathe and bar feeder.
3. Attach oil tray to front plate of bar feeder.
4. If using the install ring with the 3 stage nose, start by sliding the nose (A) through ring (B).
5. Slide the nose onto the mounting flange and tighten the mounting screws and locking
nuts.
6. Line the (B) ring mounting holes to the oil pan slot.
7. Slide inner tray (D) all the way back toward bar feeder.
8. Caution reset the emergency stop switches on the lathe and bar feeder to move lathe
headstock closest to the bar feeder. Be very careful moving the headstock as to not make
any physical contact with bar feeder components. Once in position set the emergency
switches on the lathe and bar feeder.
9. Slide inner tray toward moveable anti-vibration device (E) until there is a gap of 3-5mm.
10. Using sheet metal shears or cutoff wheel to contour the end of the drip pan may be an
option for oil control.
11. Lock tray in place at ring.
12. Verify no contact is made between the drip tray.
13. Reset the emergency stop switches on the lathe and bar feeder.
