4.3 Distance From Lathe
Caution verify proper installation distance or machine crash may
occur.
Verifying the proper install location is critical for complete material utilization and collapsing of
the telescoping nose.

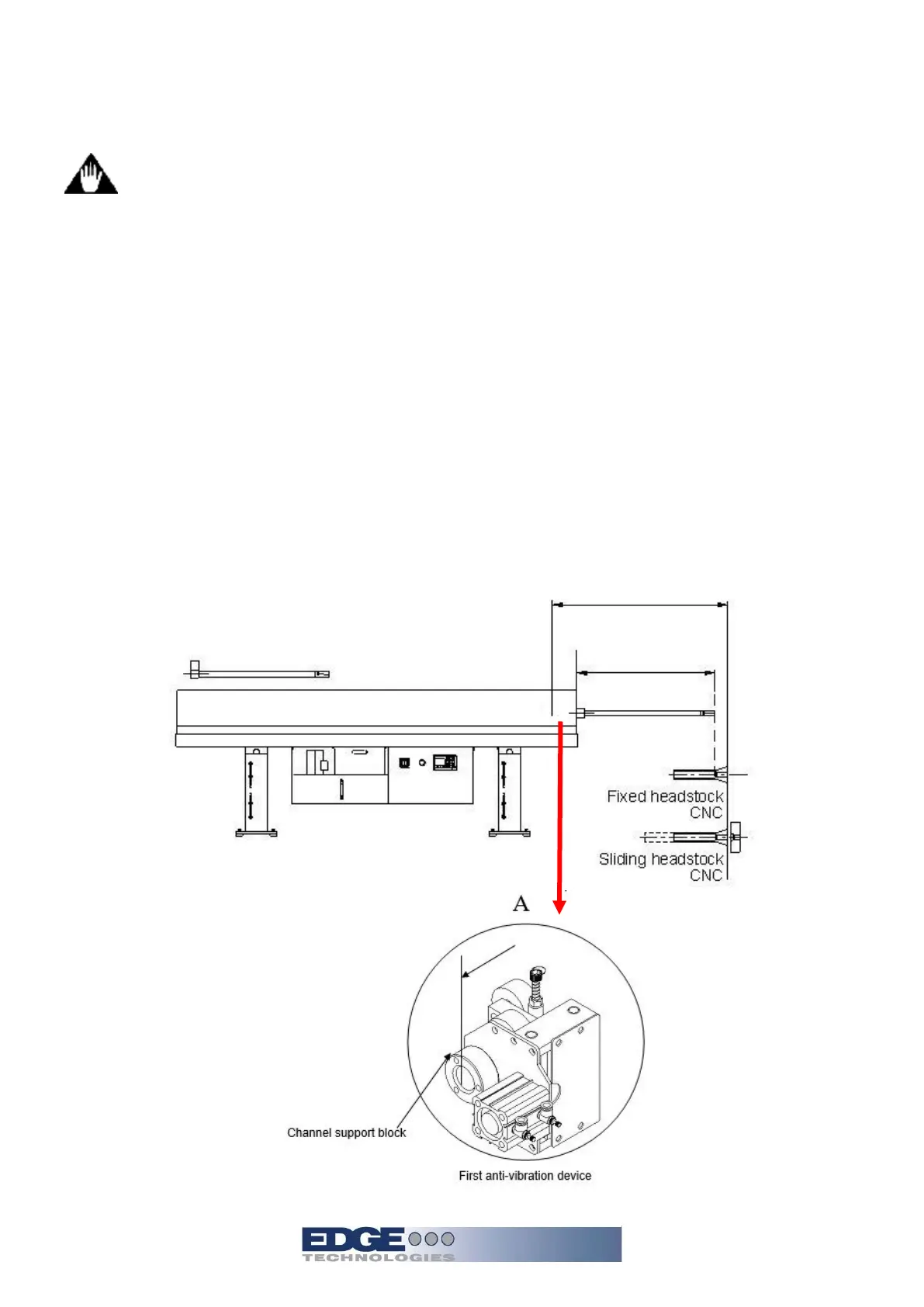

The bar feeder must be set the proper distance from the lathe. The set distance from the bar
feed to the lathe is 1346 mm (53 inches). Measure from the face of the lathe collet to the first
anti-vibration device channel support block face (See inset A). For sliding headstock lathes
make sure headstock has gone to Z+ over travel limit toward the guide bushing. For lathes that
have both a fixed headstock and sliding headstock modes set Z axis at the maximum distance
away from the bar feeder.
