MINUTEMAN 320
50
REV 13.1:2020
4.12 Nose Block Alignment
Caution do not adjust nose block when electrical power is applied to
bar feeder.
The nose block is aligned by way of 4 jack screws at the mounting flange of the nose block
device. The vertical mounting plate holes on the bar feeder are threaded for the bushing block
mounting flange. There are nuts on the screws as well. The 4 jack screws can then be used to
adjust the alignment of the bushing block and attached nose.
Use incremental adjustments to fine tune the nose block alignment. Always check for alignment
once an adjustment has been made.

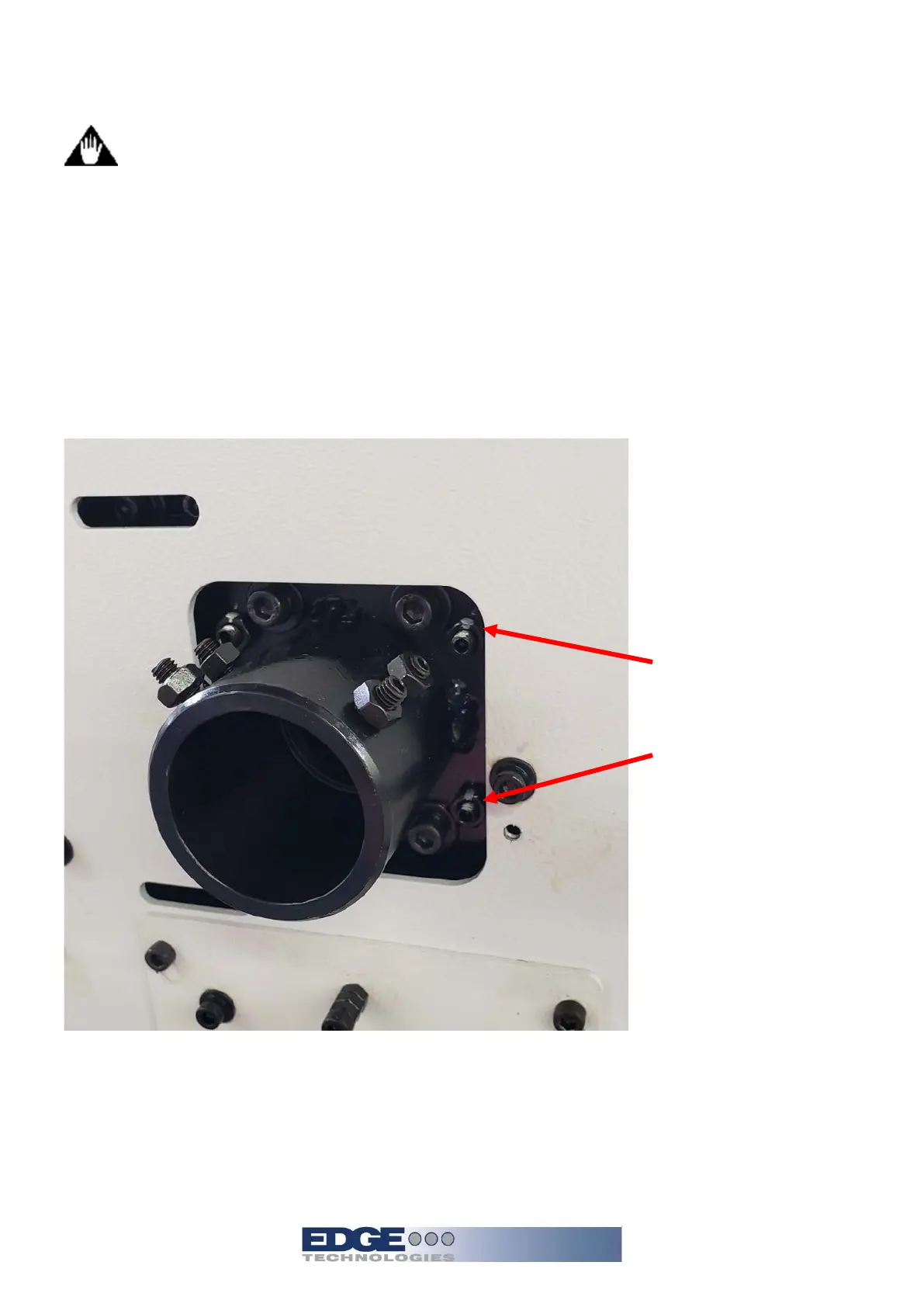

Loosen lock nuts (4) for
adjustment
Tighten lock nut (4)
once adjust.
