5.9 Pre-feed Pusher and Pusher
Caution do not replace pusher or pre-feeder pusher with electrical
power applied to lathe or bar feeder.
Warning the correct pusher length must be used for the correct
length of bar feeder or machine damage may occur.
The pre-feed pusher and pusher diameters must match as a set with the corresponding guide
channel and components sizes.
Care must be taken during the removal and installation of the pre-feed pusher
screws. A fresh allen wrench and screws should be used to avoid screw head stripping.
Caution adjustment of the pusher home position may require power
applied to the bar feeder. Only trained operators are to make adjustments.

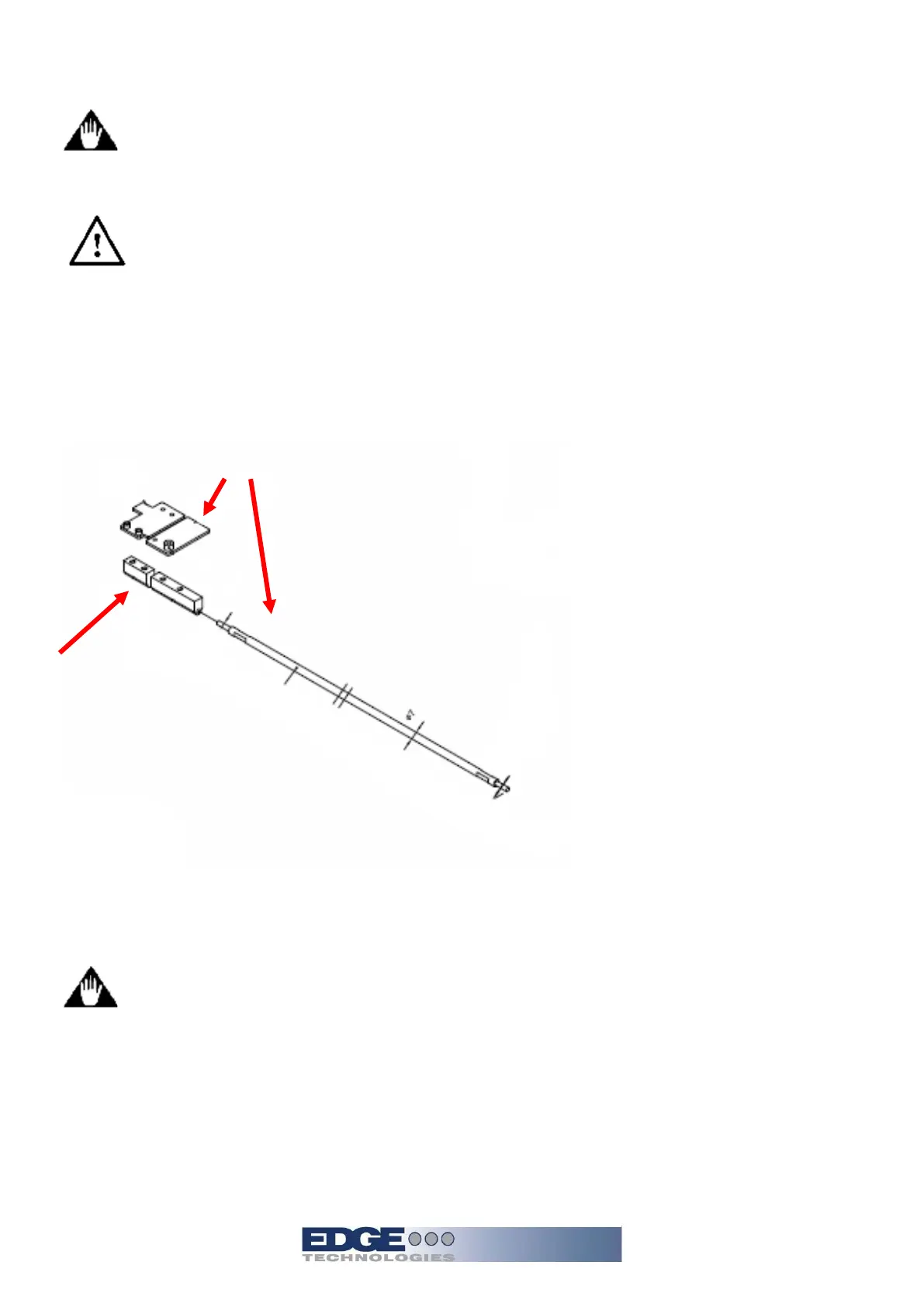

Basic layout of Minuteman
pusher. See the parts section
for part details.
Pre-feed
pusher and
flag
Pusher and flag
