MINUTEMAN 320
13
REV 13.1:2020
2.3.4 Compressed Air Supply Including Oil
Warning working with compressed air, proper PPE is required in
accordance with federal state and local laws.
Shop air must be present for machine installation
1. The supply hose for compressed air supply must be larger than 8mm
2. Pressure must be over 5~7kg / cm
2
, 71.11 – 99.56 PSI, Consumption about 50L/H。
3. Connect the air supply tube into (A). Pull up and rotate knob counter clockwise (B) and
set the pressure at 6kg / cm
2
, 71.11 – 99.56 PSI
Air system Lubricant viscosity of 32, temperature 40℃, ISO VG type.
Oil level should be checked monthly. Be sure to use the recommended oil or damage to the
pneumatic system will result.
Adjust control air lubrication from cylinder, (C), 1-2 drops／1000 L air if necessary.
Air Unit Lubricating Oil – ISO VG32
BP Castrol Chevron Mobil Shell
Energol HLP 32 Hyspin VG32 Regal R&O 32 DTE 24 or Light Tellus 32

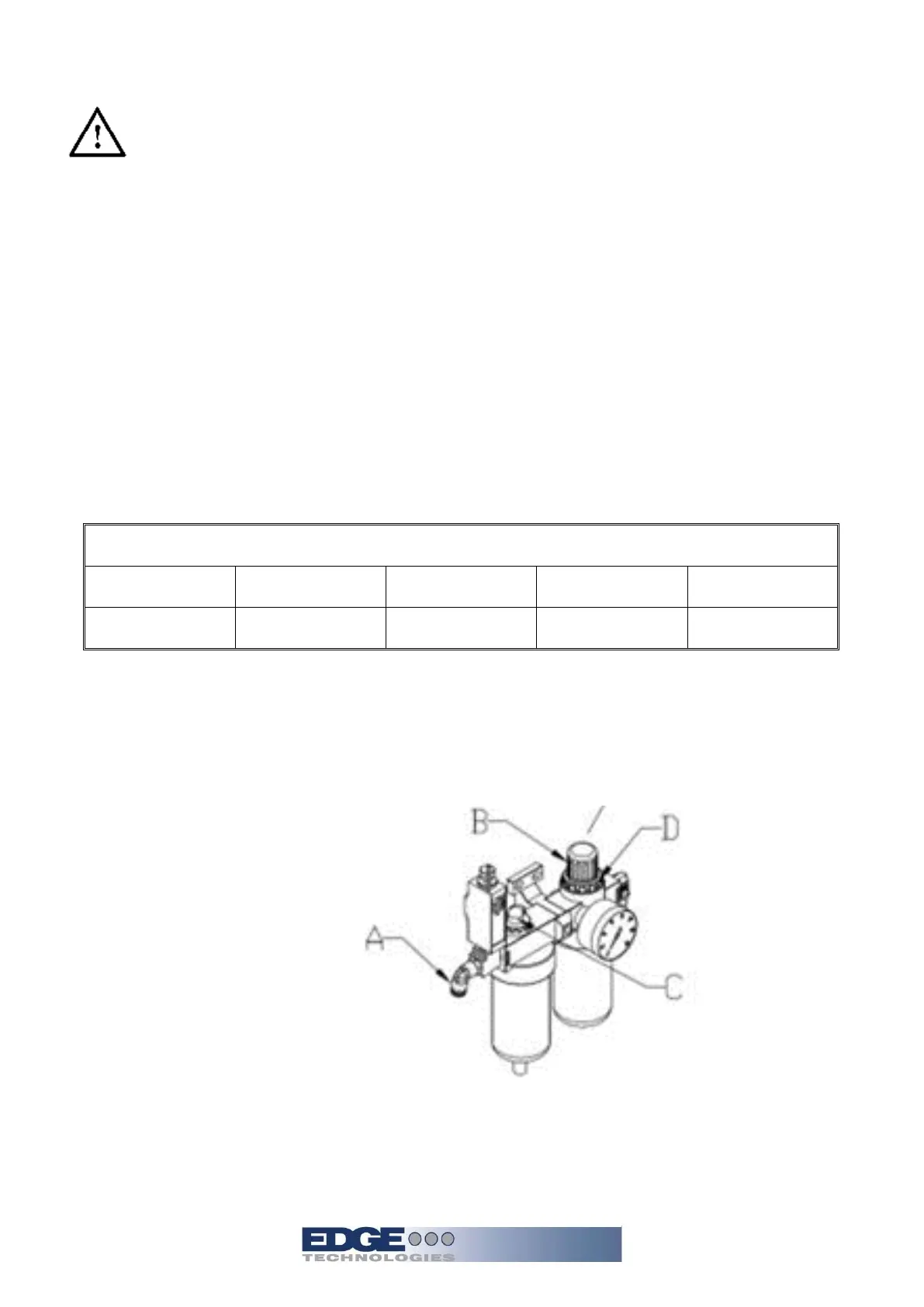

A: Air supply fitting
B: Air regulator knob
C: Oil supply knob
D: Lock ring
