MINUTEMAN 320
29
REV 13.1:2020
• Adaptation kit. Check parts and test. If not familiar with the application, call Edge
Technologies and request an assembly/detail drawing and or pictures.
• Guide channel, pushers, collets and noses. Make sure that all is available and correct
according to the customer’s pick ticket in the bar feeder.
• Spindle liners. Check that I.D. matches pusher, test-fit in the lathe, verify that the
retaining ring is available and functional, and finally make sure that the liner can be
removed once the loader is installed.
• Hardware needed to align, level and anchor the bar feeder to the ground? Is a pigtail
required?

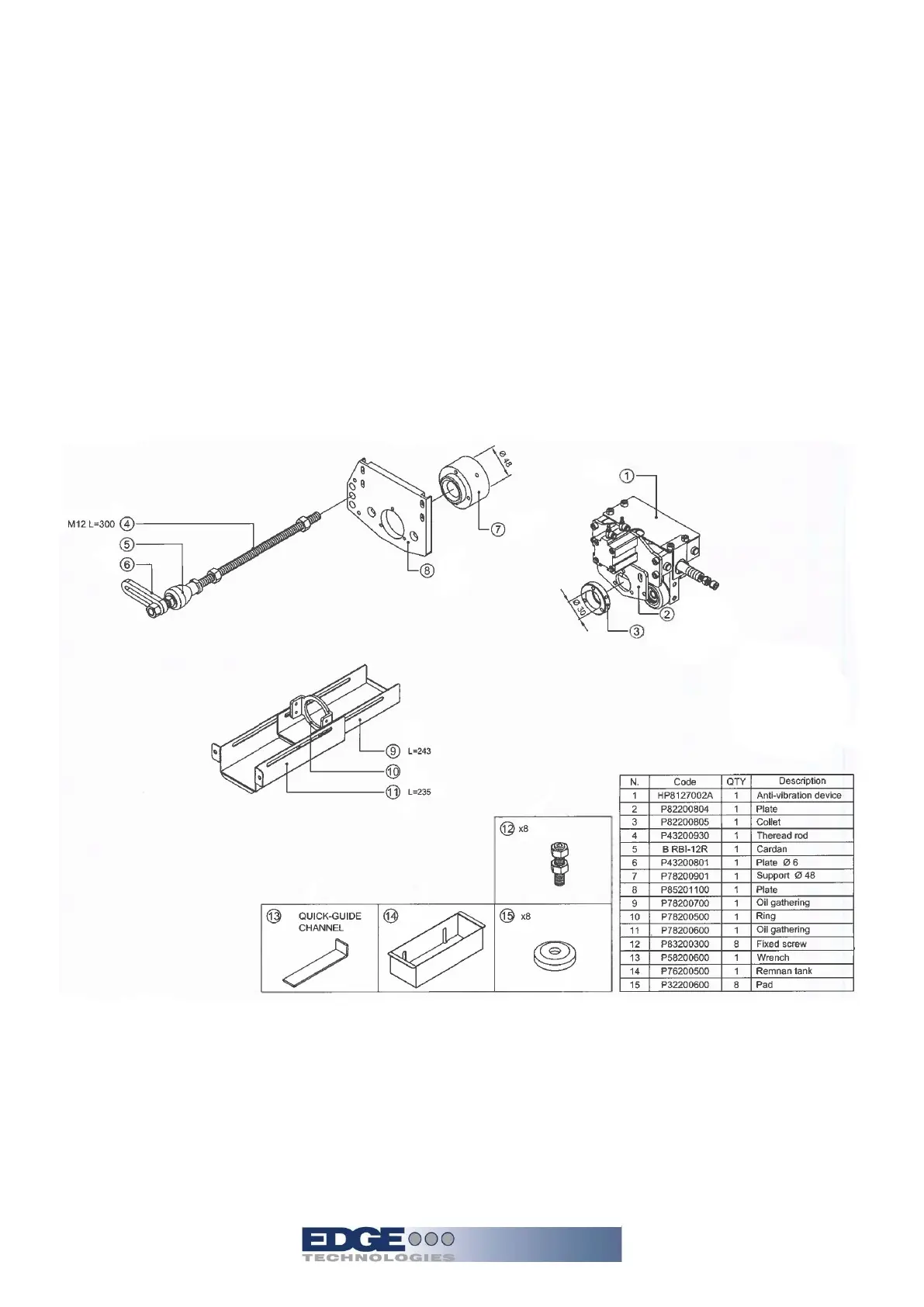

4.2.2 Swiss Headstock Shipped Components
