Warning AVD bar adjustment must be performed anytime the
centering procedure has been performed.
The AVD (Anti Vibration Device) is located at the exit point of the bar feeder. This roller steady
functions similar to the MAVD to manage vibrations, however the AVD is stationary. The AVD
centering may be adjusted through the end plate slide holes. AVD construction and operation is
identical to the MAVD. AVD CENTERING ADJUSTMENT MUST BE PERFOMRED AFTER
MAVD AND TELESCOPINMG NOSE ALINGMENT HAS BEEN PERFORMED.

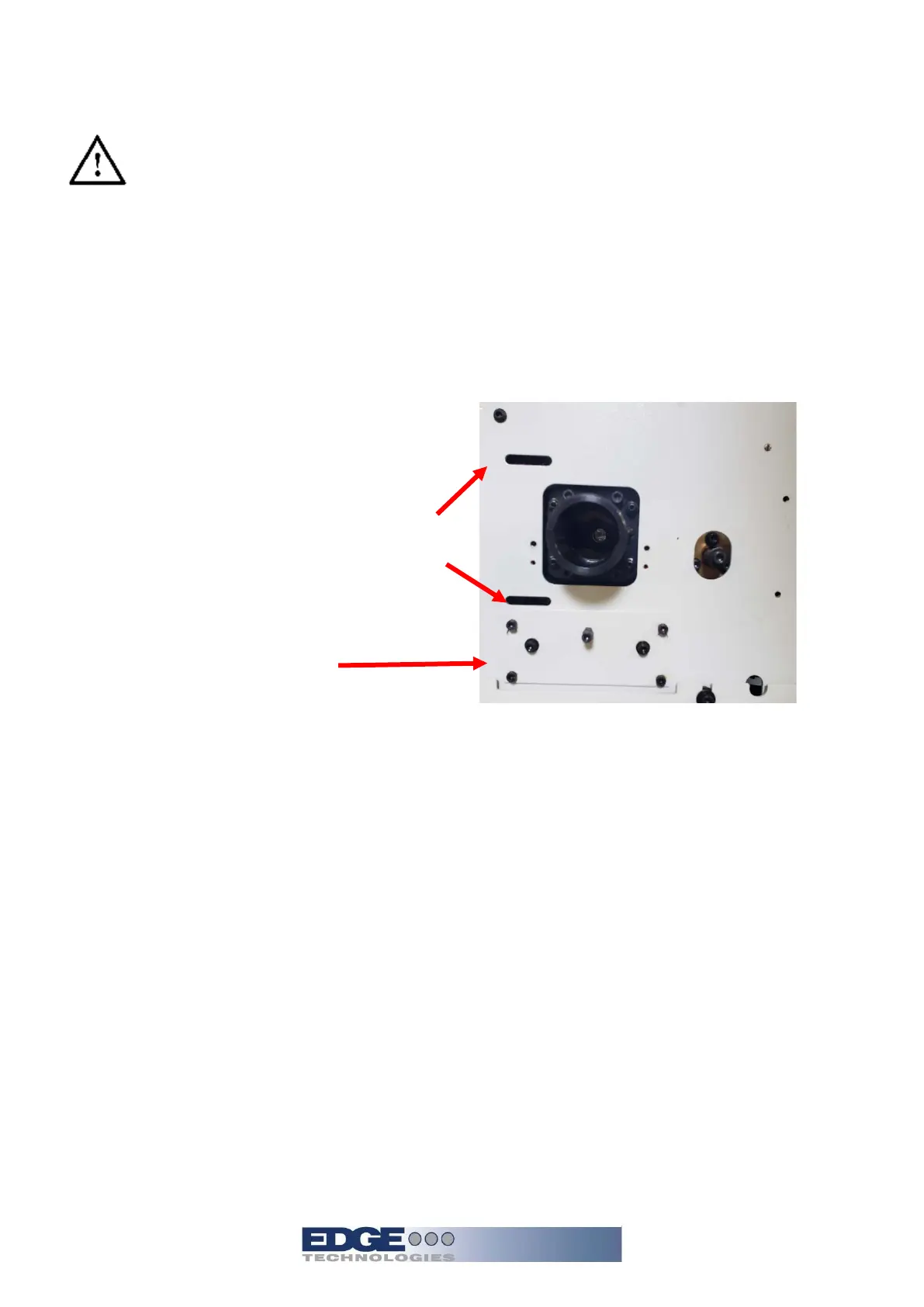

Access location for 2 upper and 2 lower AVD
mounting screws that must be loosened in order
to center.
Lower AVD roller access panel
