Loosen 4 attaching screws, 2 on
each side.

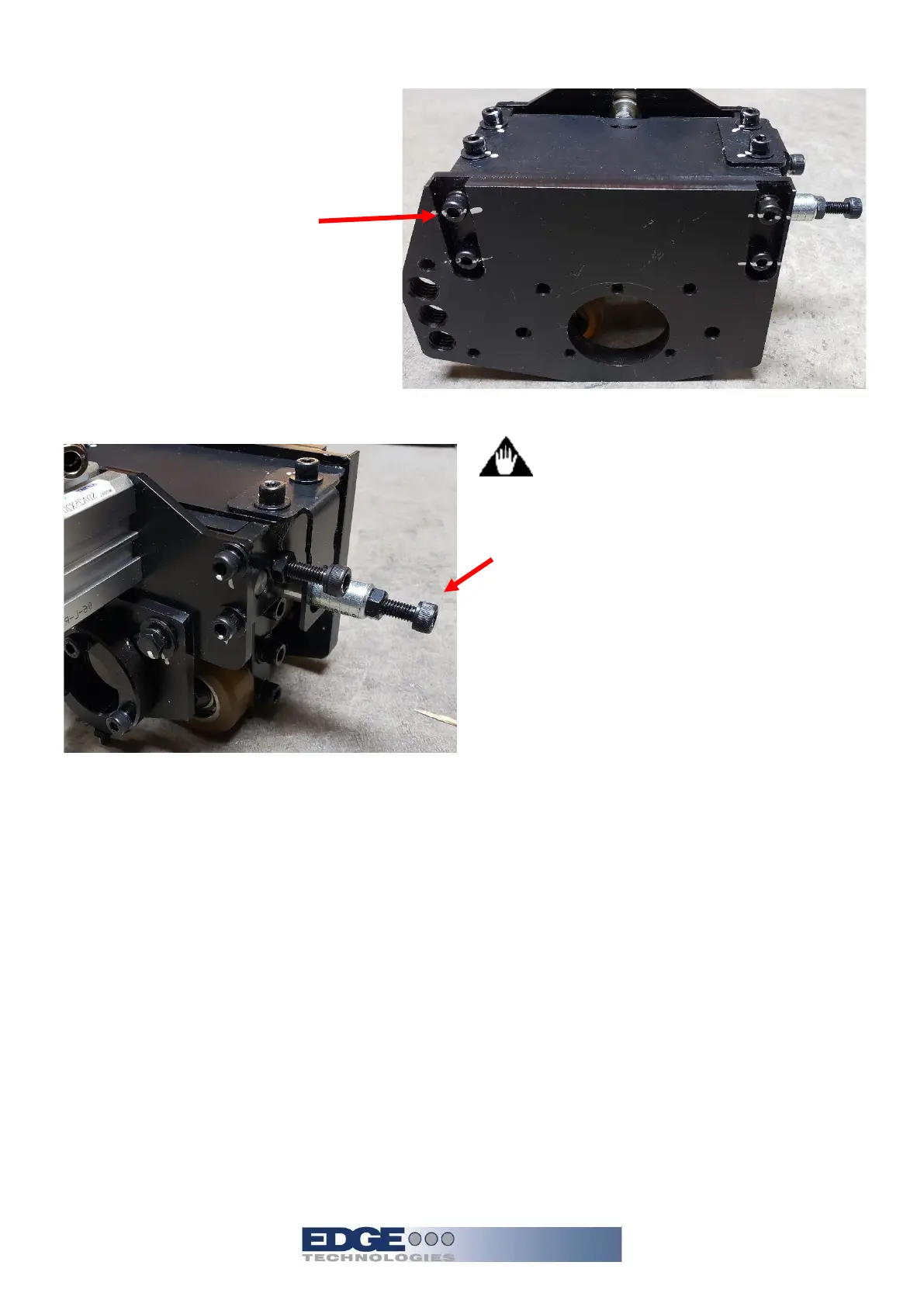

11. Unscrew the MAVD close screw to allow the rollers to grip the pusher.
Caution pinch hazard if
proper observation is not adhered
to.
Loosen the lower lock nut and rotate the
screw counterclockwise until all 4 rollers
make equal contact with the pusher.
12. Allow the MAVD to find center on the pusher.
13. Once center has been found, tighten the 4 MAVD attaching screws.
14. Tighten the MAVD adjustment screw so the rollers are no longer contacting the pusher.
15. Remove air supply from bar feeder.
16. Reverse MAVD cylinder air lines to original positions.
17. Attach the telescoping nose cinch plate. Take note to the nose, as it may droop due to wear. It
may be necessary to raise the nose up as cinch screws are tightened.
18. Reattach synchronization rod bolt.
19. Reconnect air supply.
20. Reset emergency stops on the bar feeder and lathe.
21. Follow the MAVD bar adjustment procedure.
