Warning do not install level pads over cracked concrete with uneven
surfaces.
Warning drilling anchor holes at an angle may affect the final
aligning of the bar feeder.
Caution wear protective eyewear when operating a hammer drill or
hammer to strike a floor anchor.
When the alignment is completed the bar feeder must be anchored to the floor to prevent it from

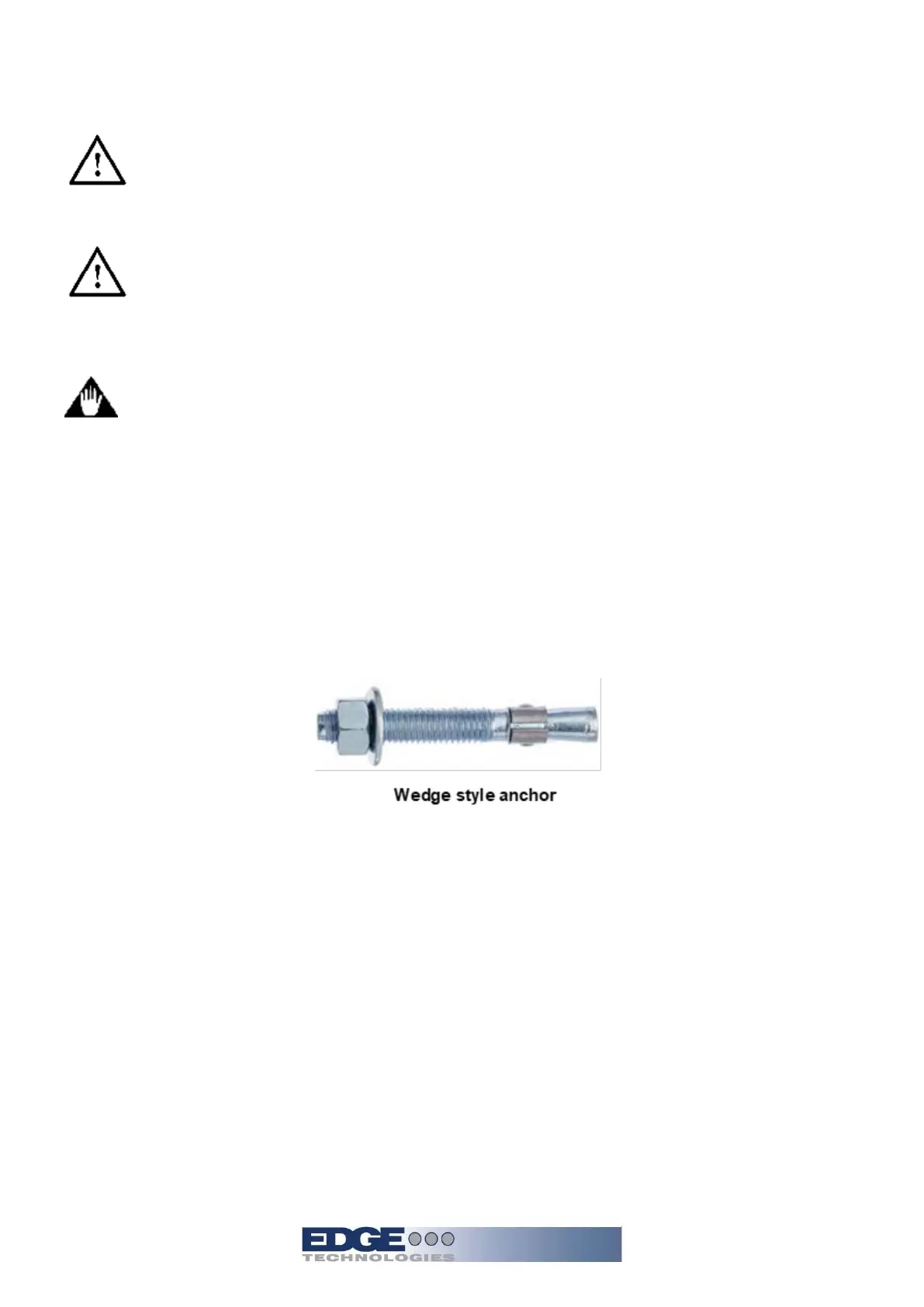

moving out of position. The machine is supplied with ½” diameter wedge anchor bolts to secure
the level pads to the floor. It is recommended to drill the holes for the anchor bolts completely
through the floor if possible or at least as deep as the anchor bolt is long so that the bolt may be
driven flush with the floor should the machine need to be moved. Alignment should be
rechecked after anchoring the machine to the floor. This includes moving the machine on the
axial track if equipped and rechecking alignment.
Note - Be sure the holes are drilled perpendicular to the floor. Drilling a hole on an angle
is not recommended.
