MINUTEMAN 320
59
REV 13.1:2020
10. Slide on nose (C) into nose adapter (H) up to point (D). Grove (D) will be flush with face
(A).
11. Tighten screws to hold nose in place.
Warning use extreme care and alertness when performing the
following step.

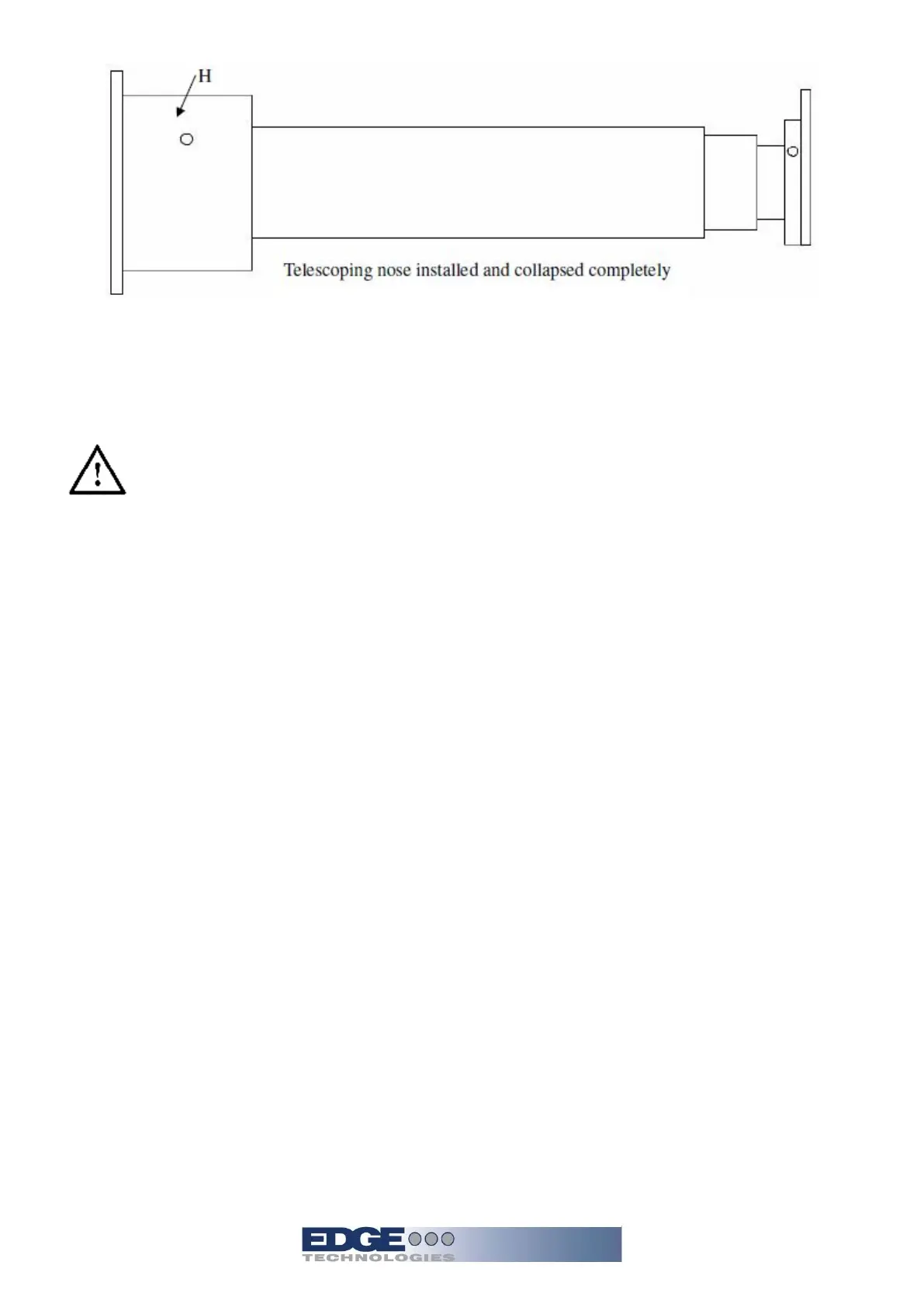

12. Collapse telescoping nose all the way, while slowly moving lathe Z axis to –Z over travel
position, check that moveable anti-vibration device inside shoulder (B) does not touch
new cut end of telescoping nose once lathe reaches –Z over travel. If it does, re-
measure all distances and re-cut telescoping nose. Corner break after cut.
13. Move lathe Z axis to +Z over travel or chuck change position and check that new cut end
of telescoping nose touches inside shoulder (B) on moveable anti-vibration device. If it
does not, the nose has been cut to short, acquire replacement nose.
14. Install cut end of telescoping nose to inside shoulder (B) of moveable anti-vibration
device and secure with screws.
15. Telescoping nose is now completed. If additional noses are part of the installation they
will require cutting to the same length.
