MINUTEMAN 320
105
REV 13.1:2020

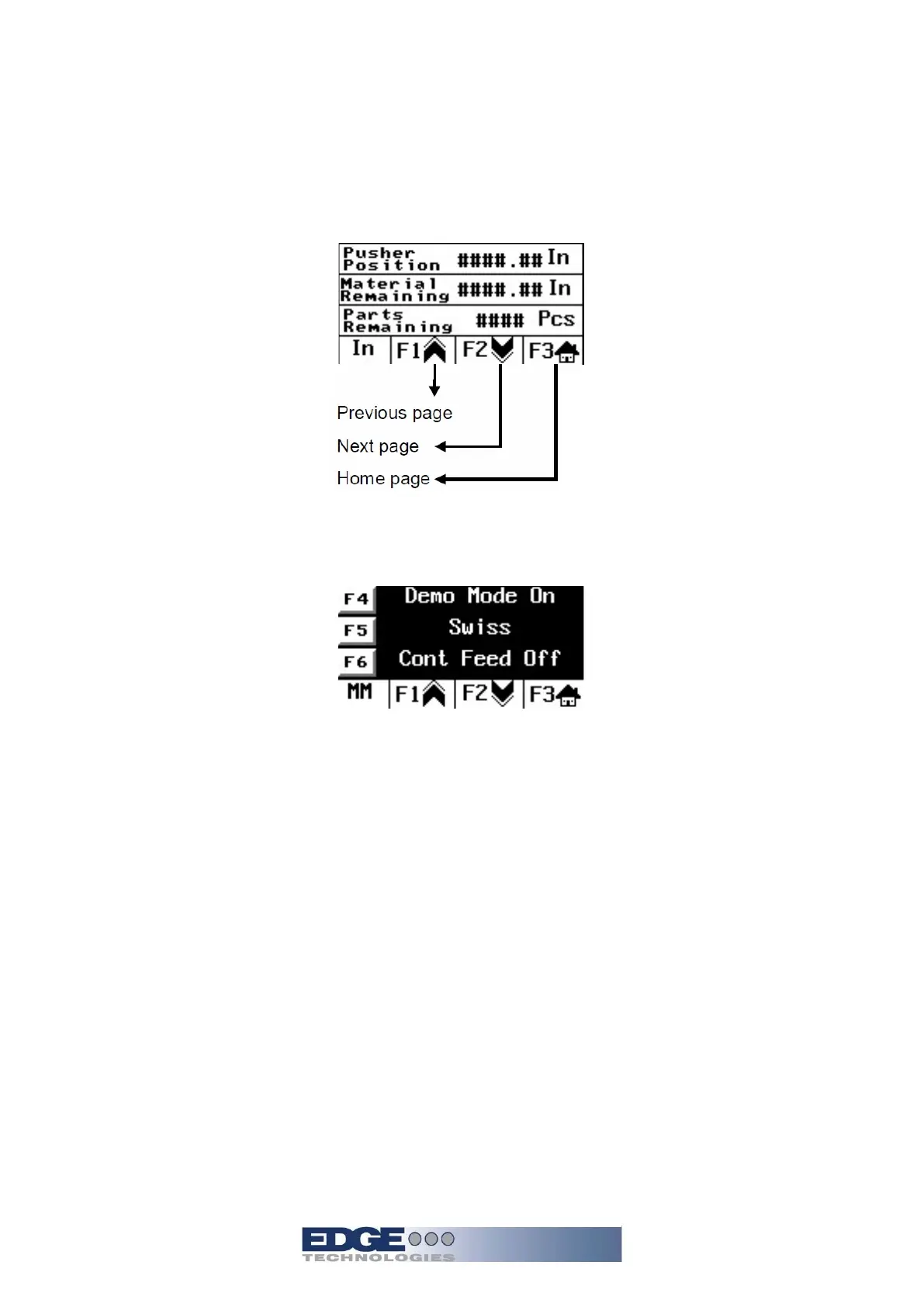

The monitor screen displays the following items while in auto,
• Pusher position – Position of pusher from bar feeder zero
• Material remaining – amount of material left on bar being machined
• Parts remaining – amount of parts left on bar being machined
•
F1 and F2 will toggle to available screens
The following screen is an example of the F4 through F9 screens. A passcode is required for
access. By pressing the indicated F key for the parameter the mode options will toggle though
the available option. Leaving the option type on the screen will save the selection.
