MINUTEMAN 320
46
REV 13.1:2020
The outer switch location is not adjustable. The adjustement will come from trimming the switch
plate attached to the synchronization belt slide.

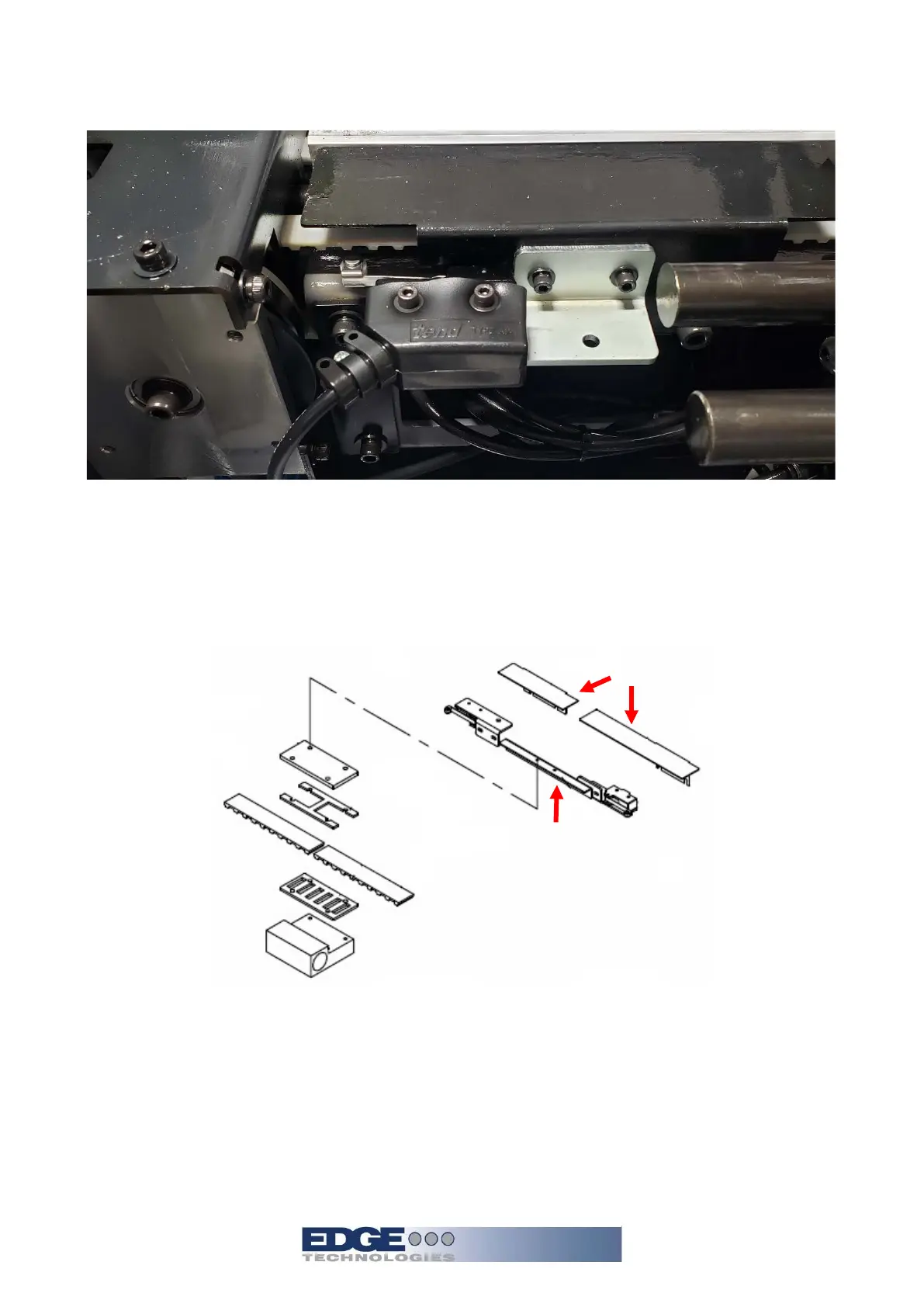

• The synch belt covers (A) must be removed to gain access to the switch plate (B).
• The switch plate is fastened with 2 screws. Remove the 2 screws and plate.
• Perform the required material removal
• Reinstall the switch plate and synch belt covers and check for bar feeder placement
B
Synchronization
belt slider block
