MINUTEMAN 320
84
REV 13.1:2020
Synchronization Belt Adjustment
Warning when adjusting synch belt place lathe and bar feeder into
emergencey stop.
Catuion do not operate bar feeder with synch belt covers installed.
1. Place bar feeder in emergency stop.
2. Open the bar feeder hood.

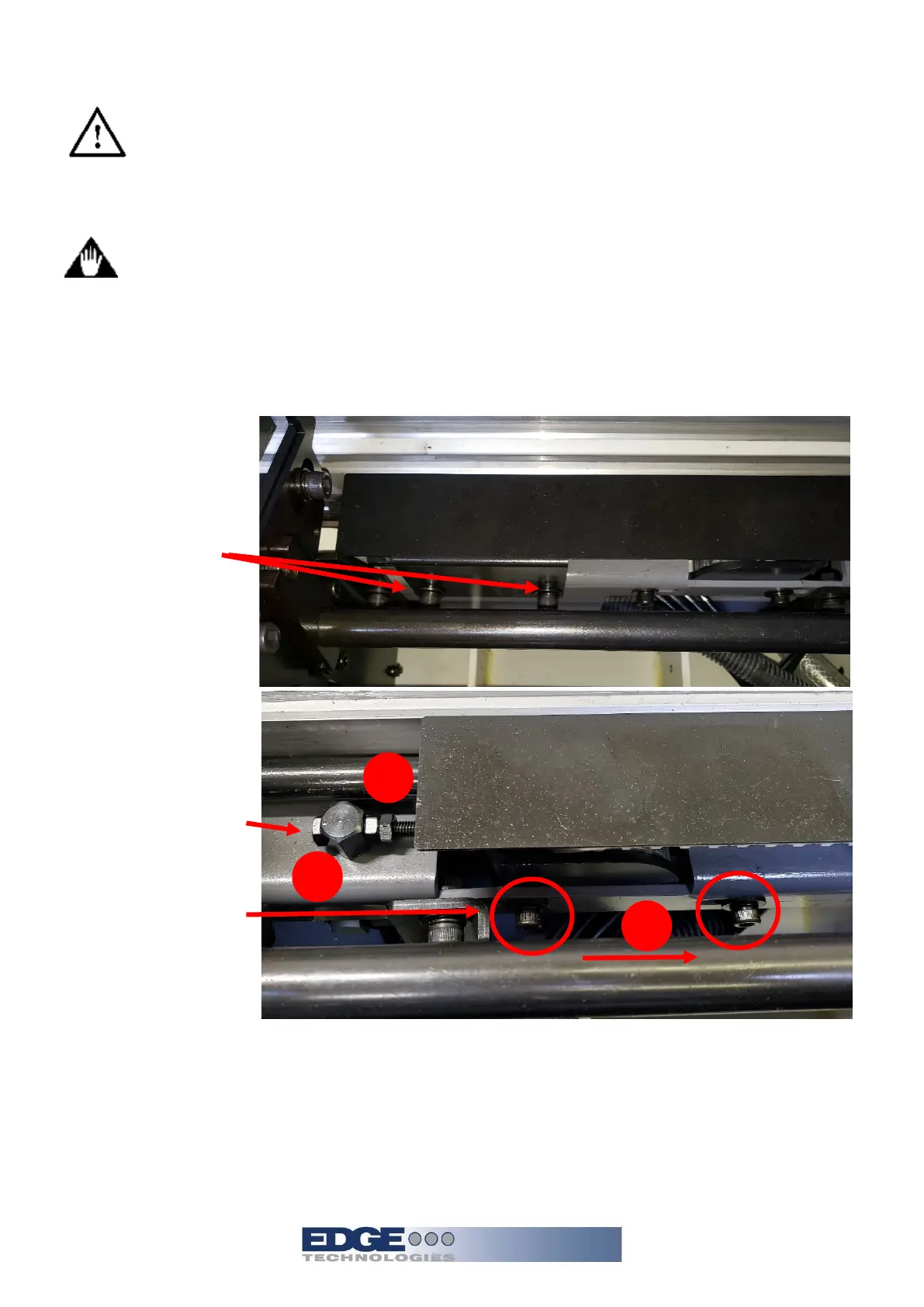

3. Remove
synch belt
cover. Loosen
2 screws and
lift cover up.
4. Loosen lock
nut (1).
Adjustment screw (3)
Lock screws (2)
5. Rotate the adjustment screw (3) clockwise to tighten belt tension/rotate counterclockwise
to loosen the belt.
6. Adjust belt tension to no more than 10mm of deflection. Do not over tighten the belt.
Premature failure of the belt may occur.
