Technical data

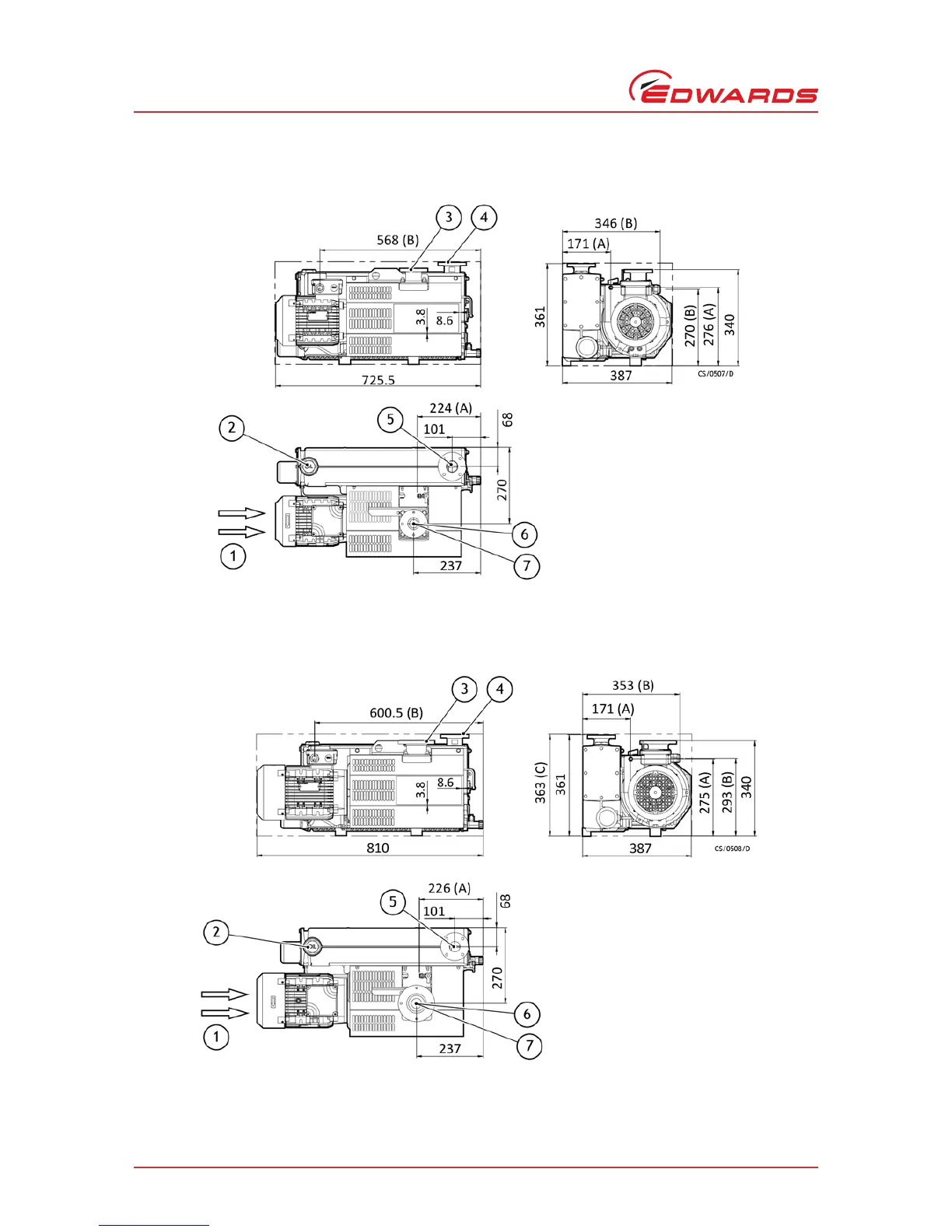

Figure 5 - ES65 dimensions (mm)
Figure 6 - ES100 dimensions (mm)
1. Cooling air
2. Oil filler plug
3. Inlet
4. Exhaust
5. ISO F DN40 (exhaust)
6. G1" (inlet)
7. ISO F DN40 (inlet)
A. Gas ballast inlet
B. Cable gland
1. Cooling air
2. Oil filler plug
3. Inlet
4. Exhaust
5. ISO F DN40 (exhaust)
6. G2" (inlet)
7. ISO F DN40 (inlet)
A. Gas ballast inlet
B. Cable gland
