Service, spares and accessories
7.4.6 Oil level sensor and 120 ºC sensor (ES200/ES300)

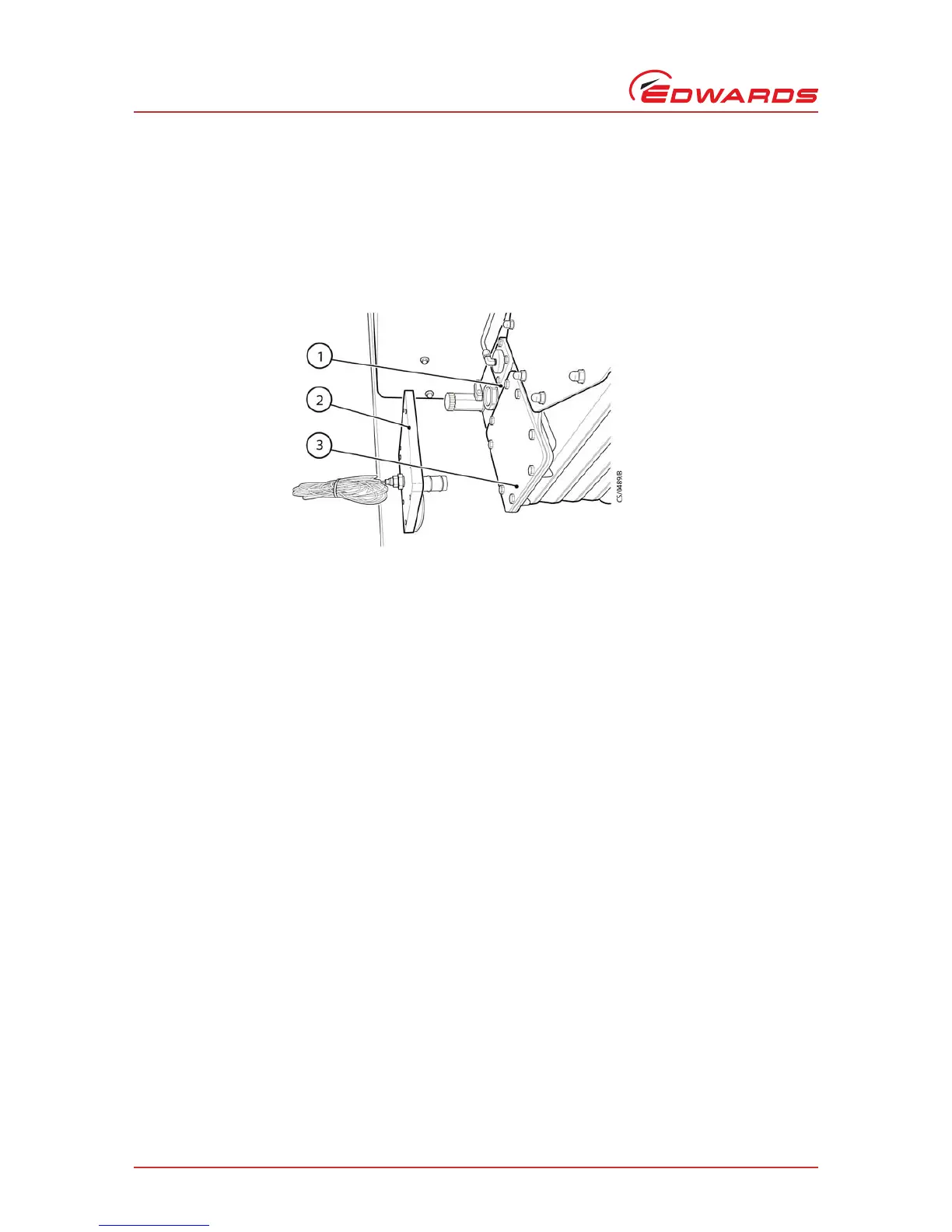

Figure 18 - ES200/ES300 oil level and 120 ºC sensor
Fitting Instructions (refer also to Table 13):
1. Drain oil from pump.
2. Remove the blank plate (Section 18, item 3) and O-ring.
3. Clean the area where the oil level sensor (2) and 120 ºC sensor (1) will be fitted.
4. Carry out a visual check on the sealing face of both the pump and the oil level sensor (2).
5. Secure using fixings provided.
Product Item Number
ES200/ES300 oil level and 120 ºC sensor A352-77-811
