Service, spares and accessories
7.4.4 PT100 temperature sensor (ES65/ES100)

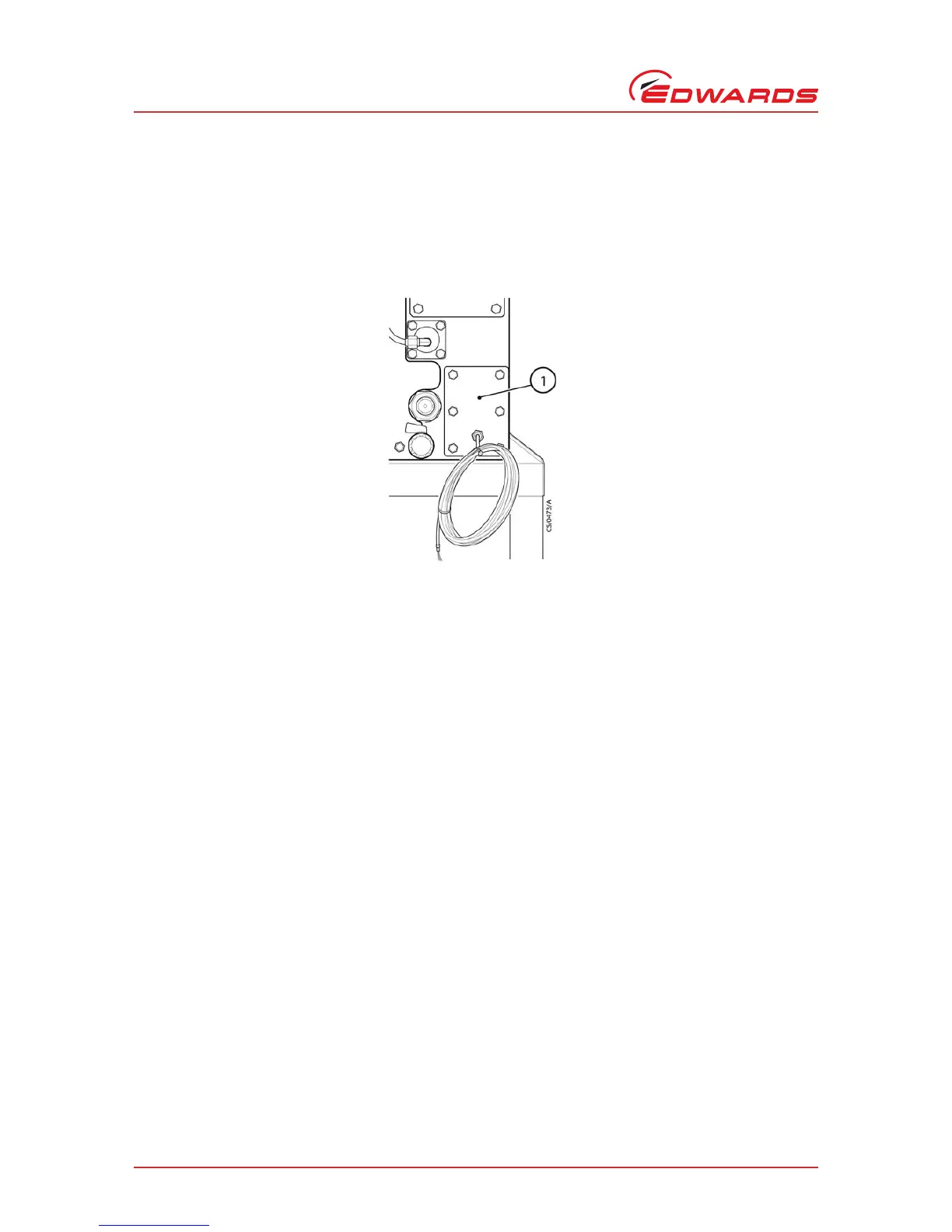

Figure 16 - ES65 / ES100 PT100 temperature sensor
Fitting Instructions (refer also to Table 13):
1. Drain oil from pump.
2. Remove the blank plate and seal.
3. Clean the area where the PT100 temperature sensor (Figure 16, item 1) will be fitted.
4. Carry out a visual check on the sealing face of both the pump and the PT100 temperature sensor.
5. Secure using fixings provided.
Product Item Number
ES65/ES100 PT100 temperature sensor A352-66-813
