Service, spares and accessories
7.4.2 Oil level sensor and 120 ºC sensor (ES65/ES100)

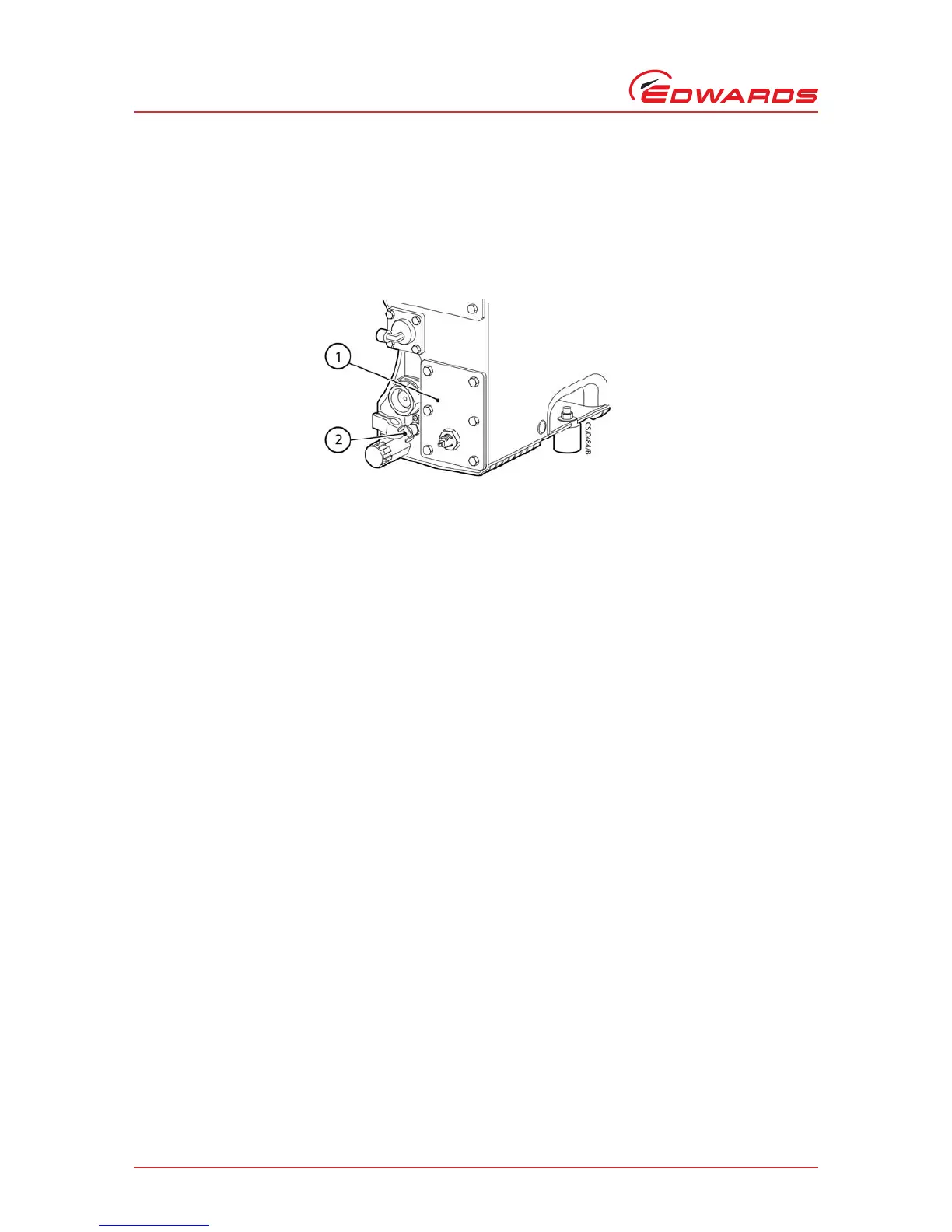

Figure 14 - ES65/ES100 oil level sensor and 120 ºC sensor
Fitting Instructions (refer also to Table 13).
1. Drain oil from pump.
2. Remove the blank plate and seal.
3. Clean the area where the oil level sensor (Figure 14, item 1) will be fitted.
4. Carry out a visual check on the sealing face of both the pump and the oil level sensor (1).
5. Secure the oil level sensor (1) using fixings provided.
6. Secure the 120 ºC sensor (2) using fixings provided.
Product Item Number
ES65/ES100 oil level and 120 ºC sensor A352-66-811
