Edwards ES100

© Edwards Limited 2015. All rights reserved. Page 7
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data
A352-03-880 Issue B

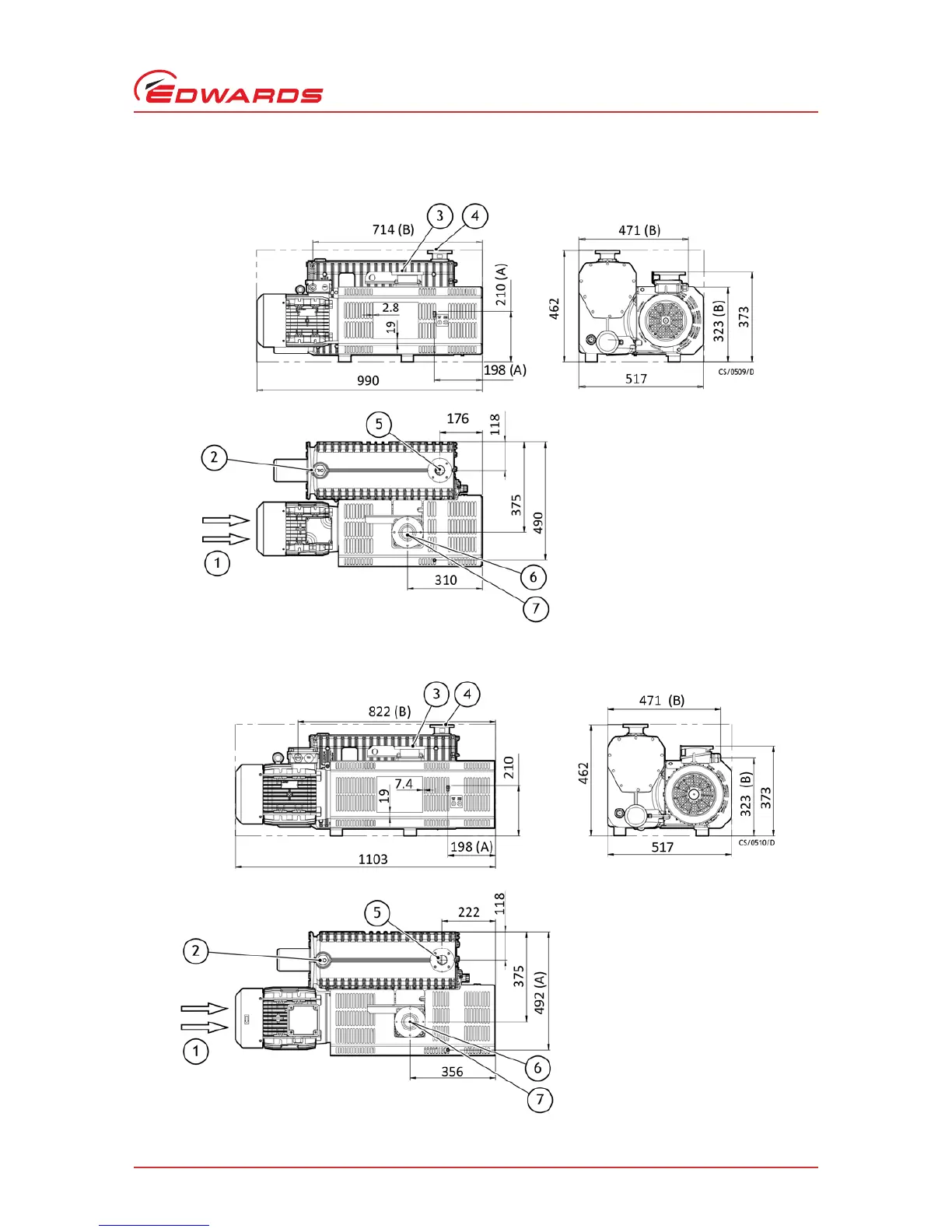

Figure 7 - ES200 dimensions (mm)
Figure 8 - ES300 dimensions (mm)
1. Cooling air
2. Oil filler plug
3. Inlet
4. Exhaust
5. ISO F DN40 (exhaust)
6. G2" (inlet)
7. ISO F DN63 (inlet)
A. Gas ballast inlet
B. Cable gland
1. Cooling air
2. Oil filler plug
3. Inlet
4. Exhaust
5. ISO F DN40 (exhaust)
6. G2" (inlet)
7. ISO F DN63 (inlet)
A. Gas ballast inlet
B. Cable gland
