STP-iXA3306 Series Turbomolecular Pump
MT-82E-001-H
Page 27
INSTALLATION
3

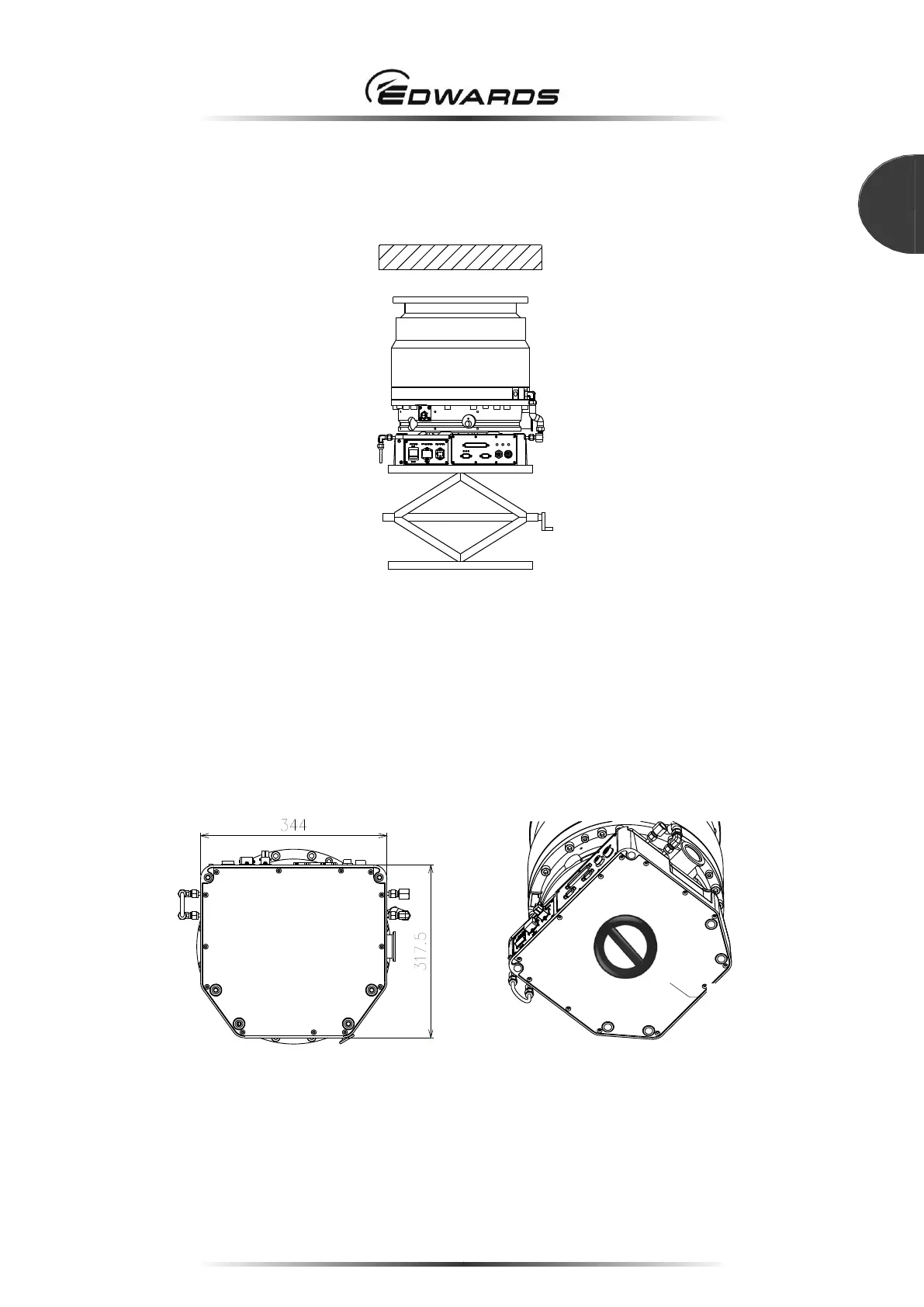

Use lifting devices when installing the STP pump under the equipment. A device due to jacking up
the STP pump should withstand the load of five times or more the weight of the STP pump.
Figure 12 - Jack-up the STP pump
When jacking up the bottom of the control unit, place the STP pump on the table which is larger than
base size (Figure 13 [A]) Jacking up the bottom plate (Figure 13 [B]) may deform the plate and cause
the breakage of internal parts. A device due to jacking up the STP pump should withstand the load of
five times or more the weight of the STP pump.
(A) Base size
(B) Prohibition part of Jack-up
Figure 13 - Control unit bottom face
Prohibition part of
Jack-up
