STP-iXA3306 Series Turbomolecular Pump
MT-82E-001-H
Page 40
INSTALLATION
3
3.4.4 Legs for securing the base
CAUTION
When securing the base, use stainless steel securing bolts with a tensile strength class is 70 or
more.

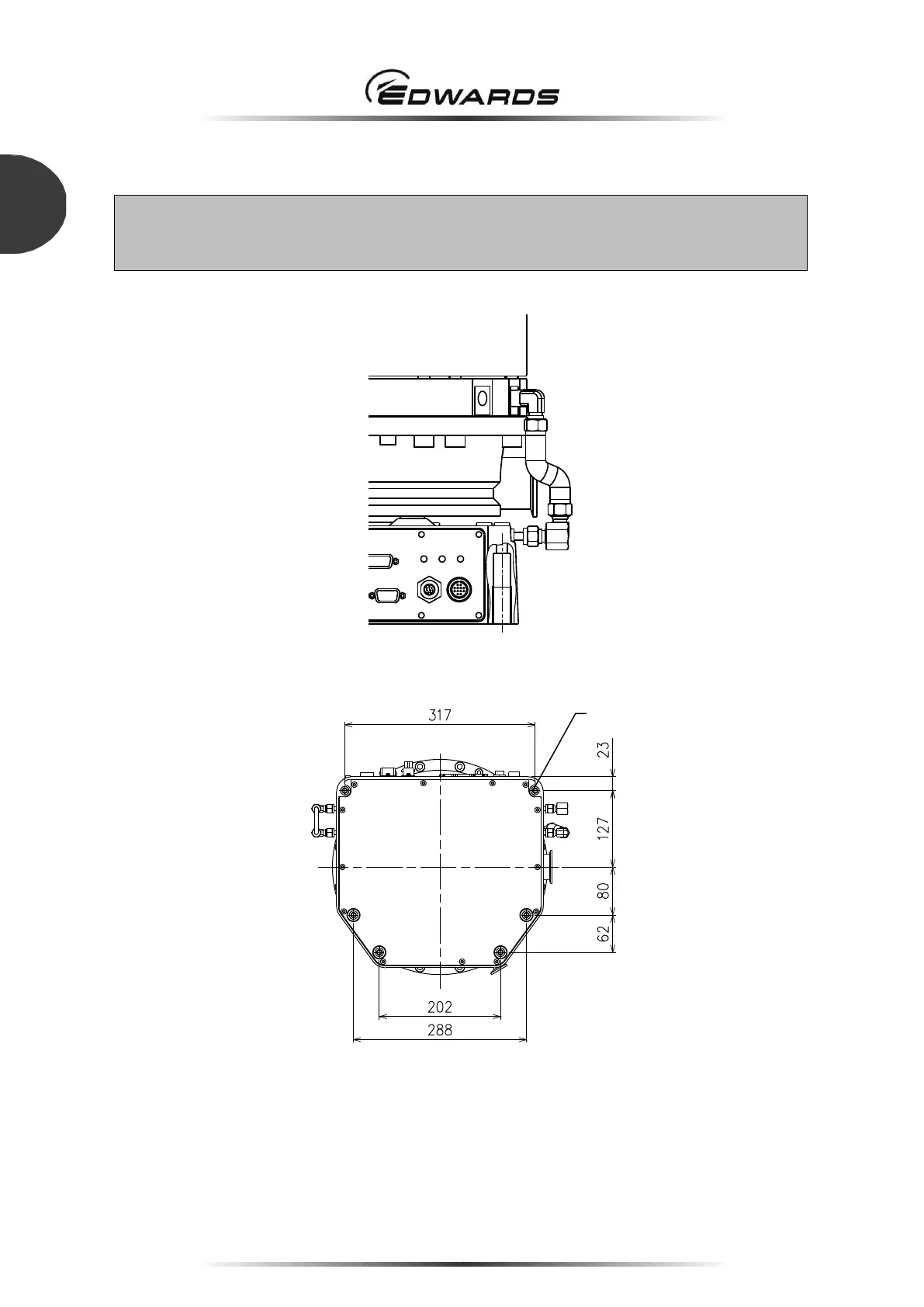

Figure 23 shows the position of the six screw holes for securing the base of the STP pump.
(A) Screw holes for securing the base
(B) Position of the screw holes
for securing the base
Figure 23 - Screw holes for securing the base
M16,
depth 30 mm
