STP-iXA3306 Series Turbomolecular Pump
MT-82E-001-H
Page 30
INSTALLATION
3
3.3.2 Name and function of the control unit

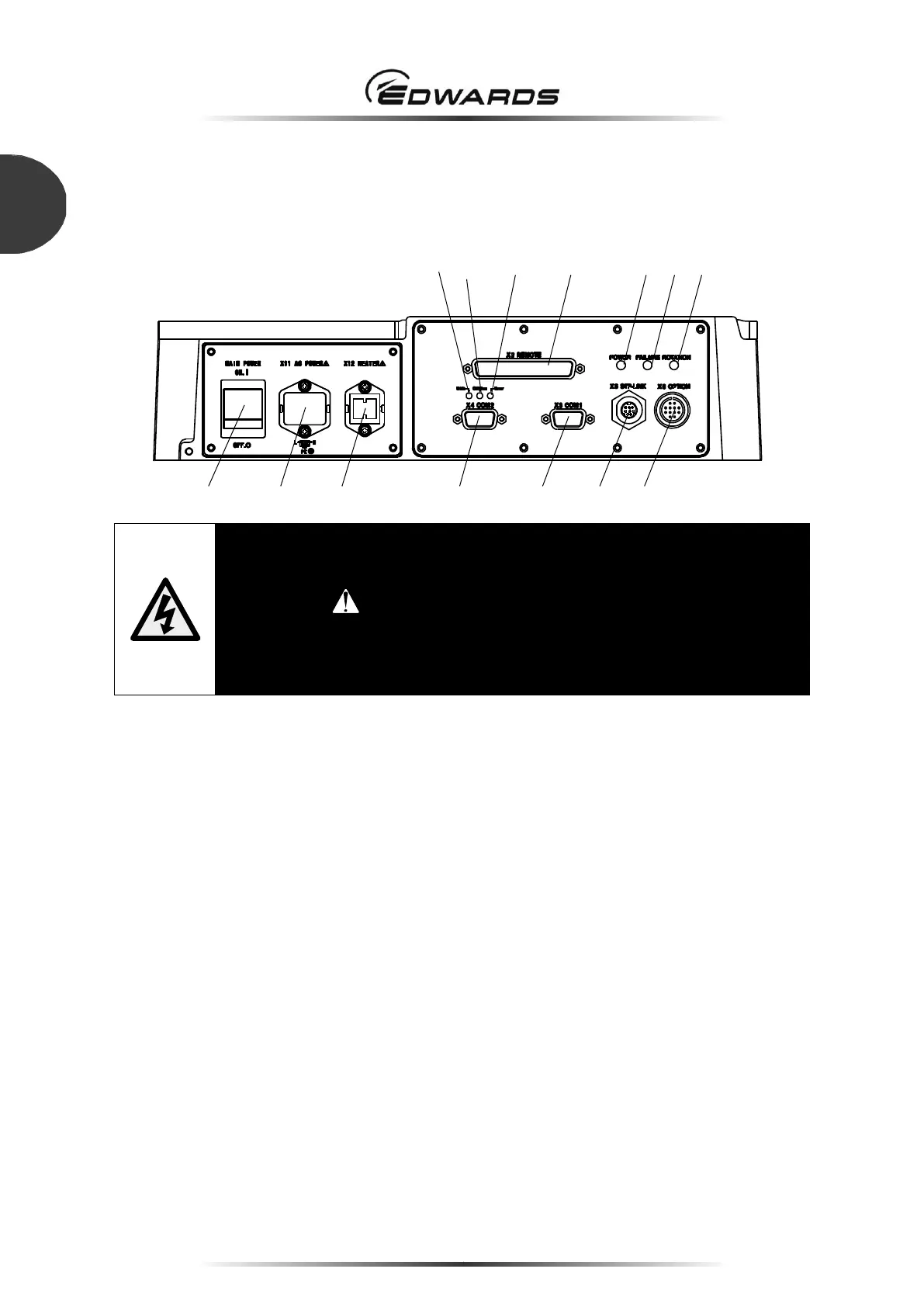

Figure 17 shows the front panel of the control unit.
WARNING
A hazardous live voltage may exist at the connectors that are marked with the
warning sign
. DO NOT touch the connecter. Doing so may result in electric
shock. When connecting/disconnecting the connecter, always power off the primary
power (switch the MAIN POWER to "OFF") and isolate (Lockout/Tagout) the
electrical energy source, water and gas, and other energy sources on the vacuum
equipment.
1
"MAIN POWER" switch
8
"OPTION" connector (X6)
2
"AC POWER" connector (X11)
9
"POWER" LED
3
"HEATER" connector (X12)
10
"FAILURE" LED
4
"REMOTE" connector (X2)
11
"ROTATION" LED
5
"COM1" connector (X3)
12
"Data" LED
6
"COM2" connector (X4)
13
"Off-Line" LED
7
"STP-LINK" connector (X5)
14
"Error" LED
Figure 17 - Control unit (Front panel)
Note: Refer to Table 9 for front panel functions.
1
3
5
6
10
12
11
2
8
7
9
14
13
4
