Edwards STP-iXA3306CV - X2 REMOTE Output Signal Pins (Continued); X2 REMOTE Output Signal Pins

STP-iXA3306 Series Turbomolecular Pump
MT-82E-001-H
Page 76
4
OPERATION
Pin
Description
Pins for optional signal output.
In state of the second speed option is "ENABLE", and second
speed is selected, the pins between (7)-(26) are closed and the
pins between (7)-(26) are opened.
Table 26 - X2 REMOTE output signal pins (continued)

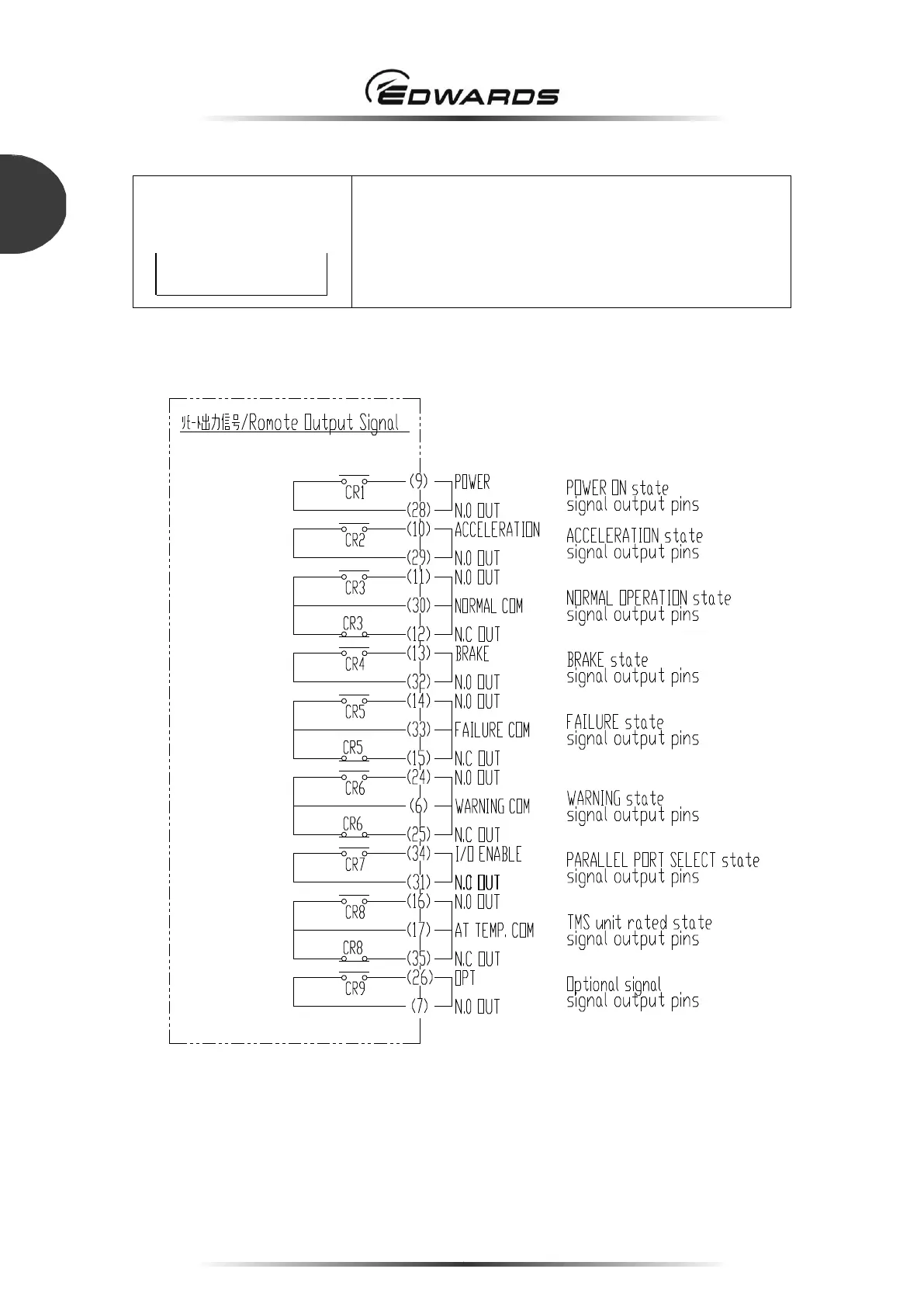

Figure 39 - X2 REMOTE output signal pins
(7) (26)
OPT
N.O OUT
