STP-iXA3306 Series Turbomolecular Pump
DO NOT the grip and pull the cooling water pipe (Figure 14) for cooling water when installing the
STP pump.

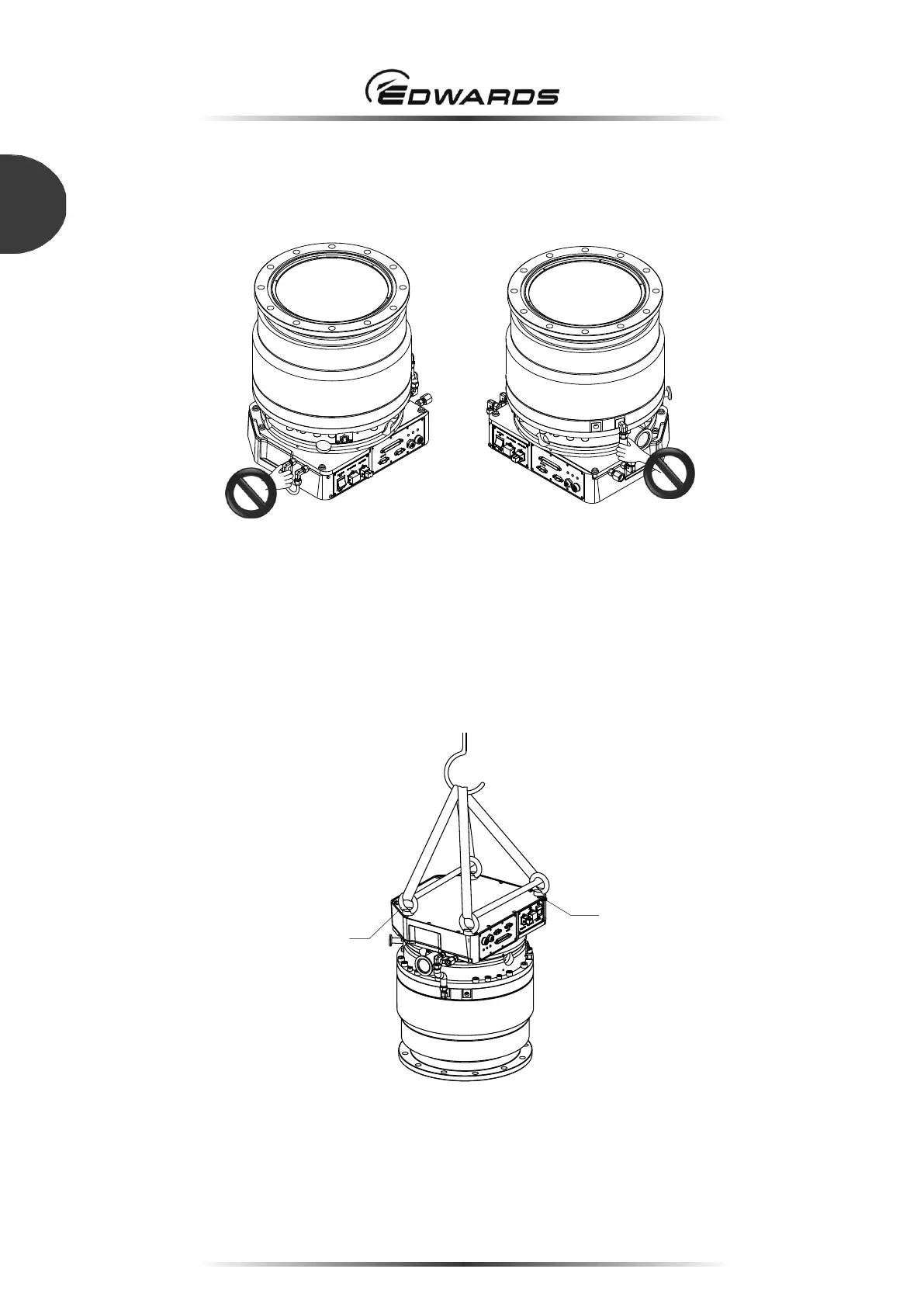

Figure 14 - Prohibited matter
When installing the STP pump to the vacuum equipment in upside-down position, the STP-iXA3306
series can be loft with the eyebolts attached to the screw holes for securing the base. (see Figure 15)
A crane and eyebolts due to lifting operations should withstand the load of five times or more the
weight of the STP pump, and rope should be seven time or more. Use an eyebolt which confirms to
ISO03266. When lifting the pump, use 2 or more ropes.
Figure 15 - STP pump with eyebolts
Screw holes for securing
the base
