The media is fed to the printer from the media roll on the rear air shaft, through the pinch roller, above the tension roller,
over the print table. From the print table, through the front tension roller, over the pinch roller to the air shaft. See
Figure
6-30 for options on the media path.

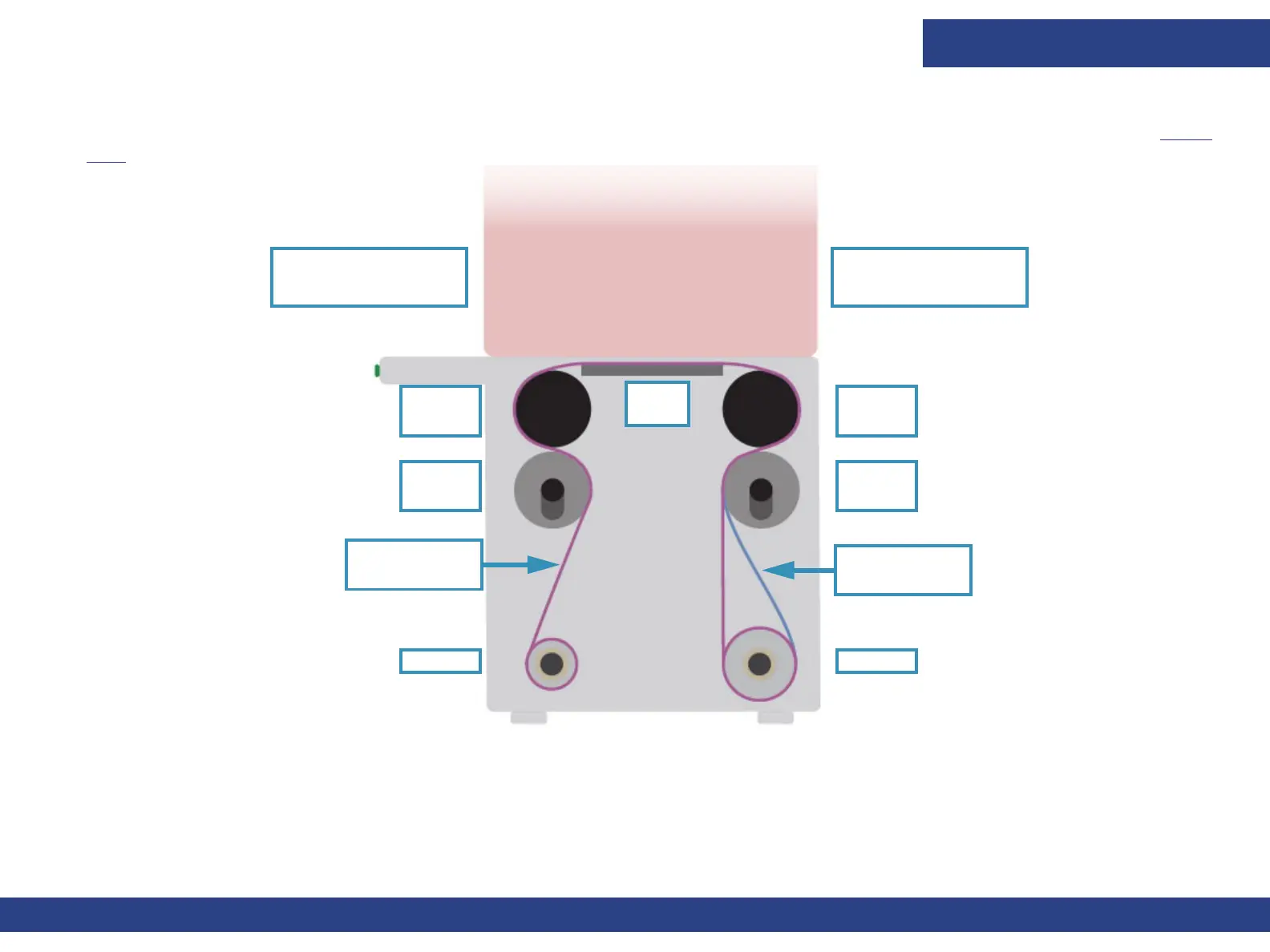

Figure 6-30
Shaft (Y)
Roller
Pinch
Roller
Air Shaft
FRONT
Operator Workstation
Print
Table
Air Shaft
REAR
Pinch
Roller
Tension
(T) Roller
Blue Line =
Media Face Out
Purple Line =
Media Face In
