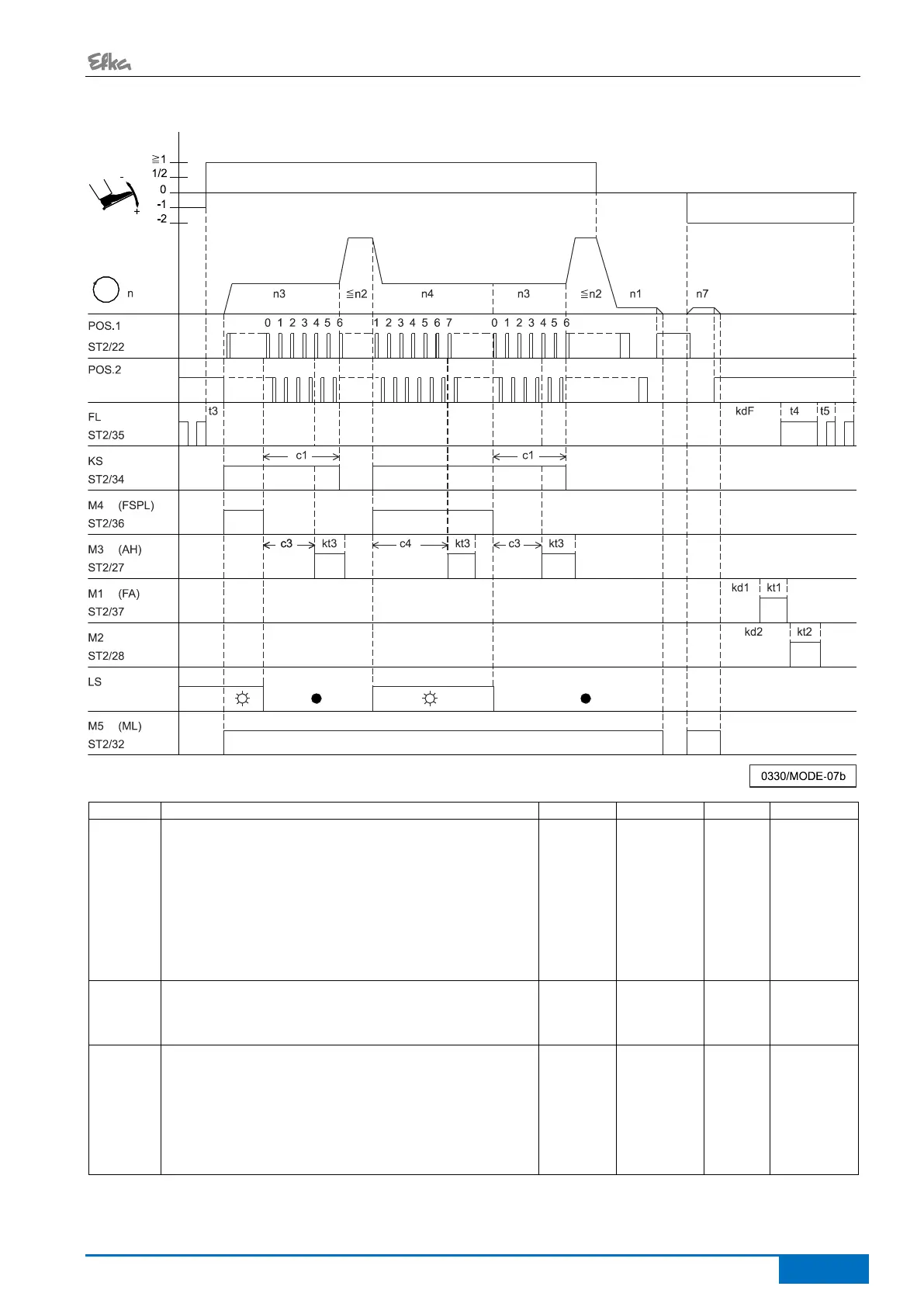

Mode 7 (overlock) parameter 232 = 0 (tape cutter) / parameter 018 = 1 (seam end without stop)
Mark
Function
Parameters
Control
V810
V820
FAm
LS
LS
UoS
-Pd
SPO
kSA
kSE
USS
Mode 7
Counts c1, c2, c3 and c4
Light barrier compensating stitches
Light barrier
Sequence “overlock mode at the seam end without stop”
Function “pedal in pos. –1/–2” activated in the seam
Chain suction at the seam end until pedal in pos. 0 (neutral)
Stitch counting at the start of the seam at fixed speed n3
Stitch counting at the seam end at fixed speed n4
Tape cutter function
290 = 7
On
004 = 0
009 = 1
018 = 1
019 = 3
022 = 1
143 = 1
144 = 1
232 = 0
Key E/+
Key 1/2
Key 1/4
n1
n2
n3
n7
Positioning speed
Maximum speed
Speed for start counting
Trimming speed
110
111
112
116
c1
c3
c4
t3
kd1/kd2
kt1/kt2
kt3
kdF
Start counting for chain suction
Start counting for tape cutter
End counting for tape cutter
Start delay from lifted sewing foot
Delay times of outputs M1/M2
ON periods of outputs M1/M2
ON period of tape cutter
Switch-on delay of sewing foot lifting
001
002
003
202
280/282
281/283
285
288
