- AB620A5035 Instruction Manual

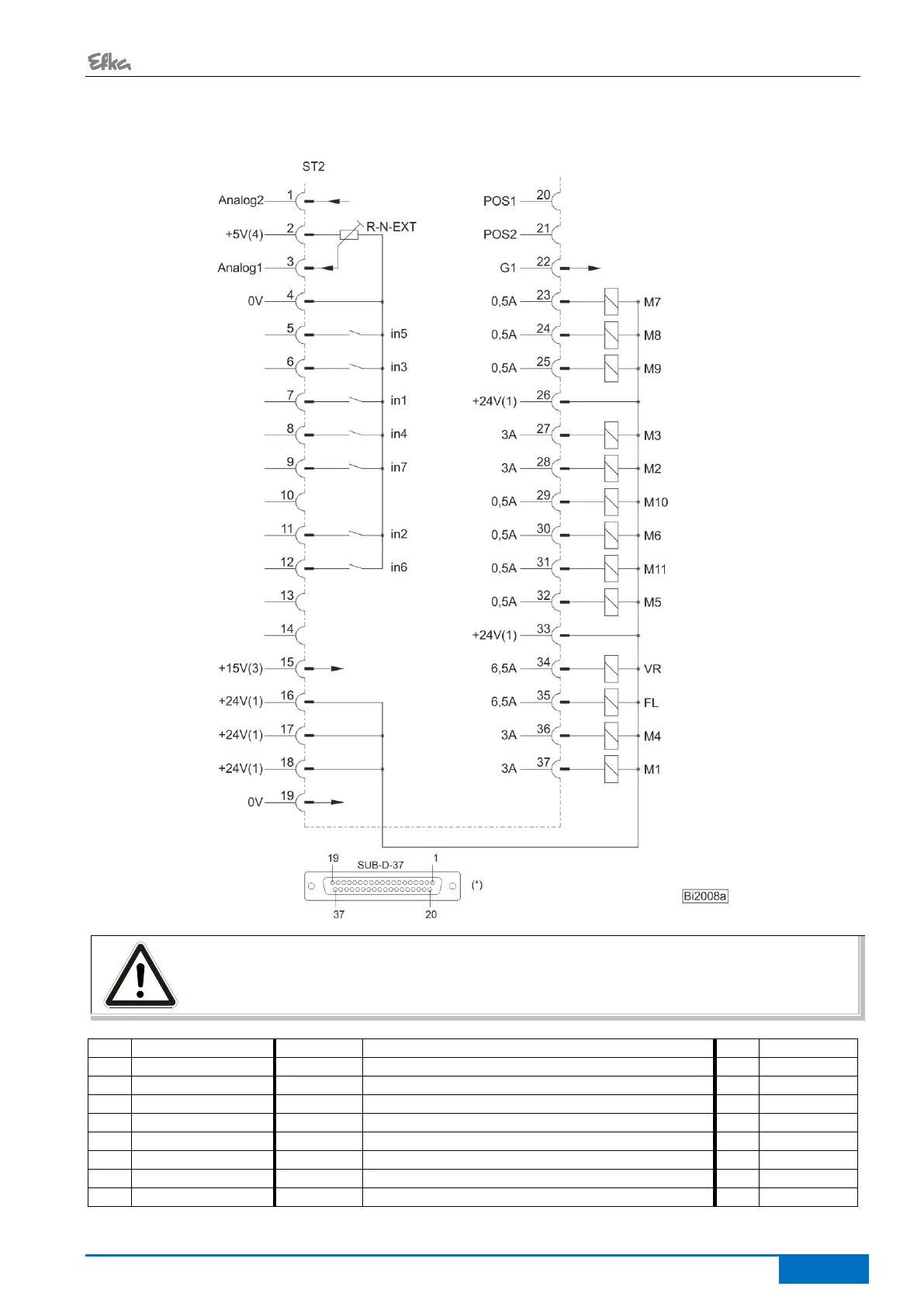

10.3 Connection Diagrams
Inputs switched to 0V
ATTENTION
When connecting the outputs, ensure that a total power of 96VA constant load will not be
exceeded!
in1
Input 1
R-N-EXT
External potentiometer for speed limitatiom
M4
Output 4
in2
Input 2
VR
Backtacking
M5
Output 5
in3
Input 3
POS1
Position 1
M6
Output 6
in4
Input 4
POS2
Position 2
M7
Output 7
in5
Input 5
FL
Sewing foot lifting
M8
Output 8
in6
Input 6
G1
Generator signal
M9
Output 9
in7
Input 7
M1
Output 1
M10
Output 10
M2
Output 2
M11
Output 11
M3
Output 3
