- AB620A5035 Instruction Manual

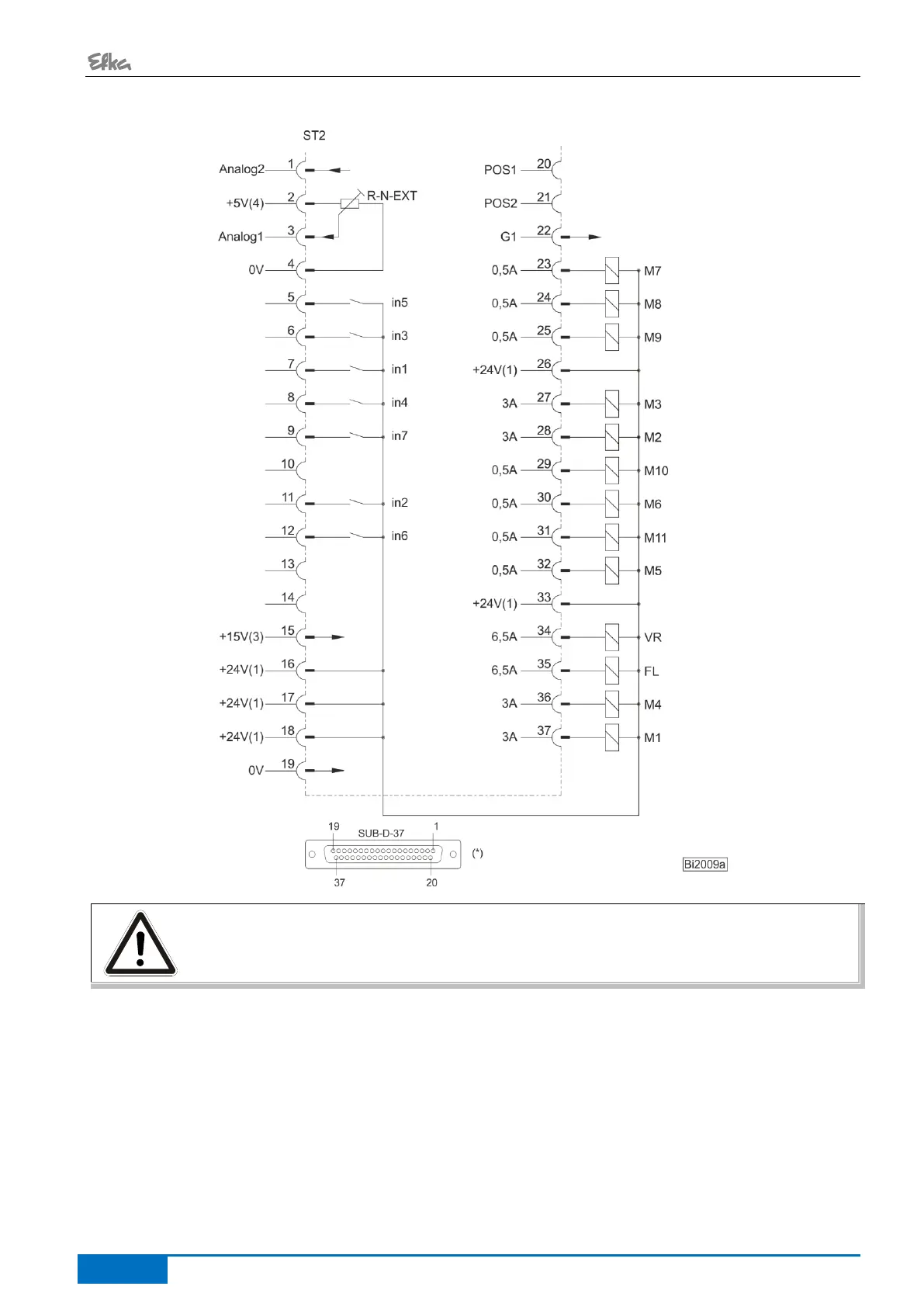

Inputs switched to +24 V
ATTENTION
When connecting the outputs, ensure that a total power of 96VA constant load will not be
exceeded!
1) Nominal voltage +24 V, no-load voltage max. +30 V momentarily after power on
2) Transistor output with open collector max. +40 V, I
max
10 mA
3) Nominal voltage +15 V, I
max
30 mA
4) Nominal voltage +5 V, I
max
20 mA
*) View: Front view of the control (component side) and/or rear view of the outgoing connecting cable
