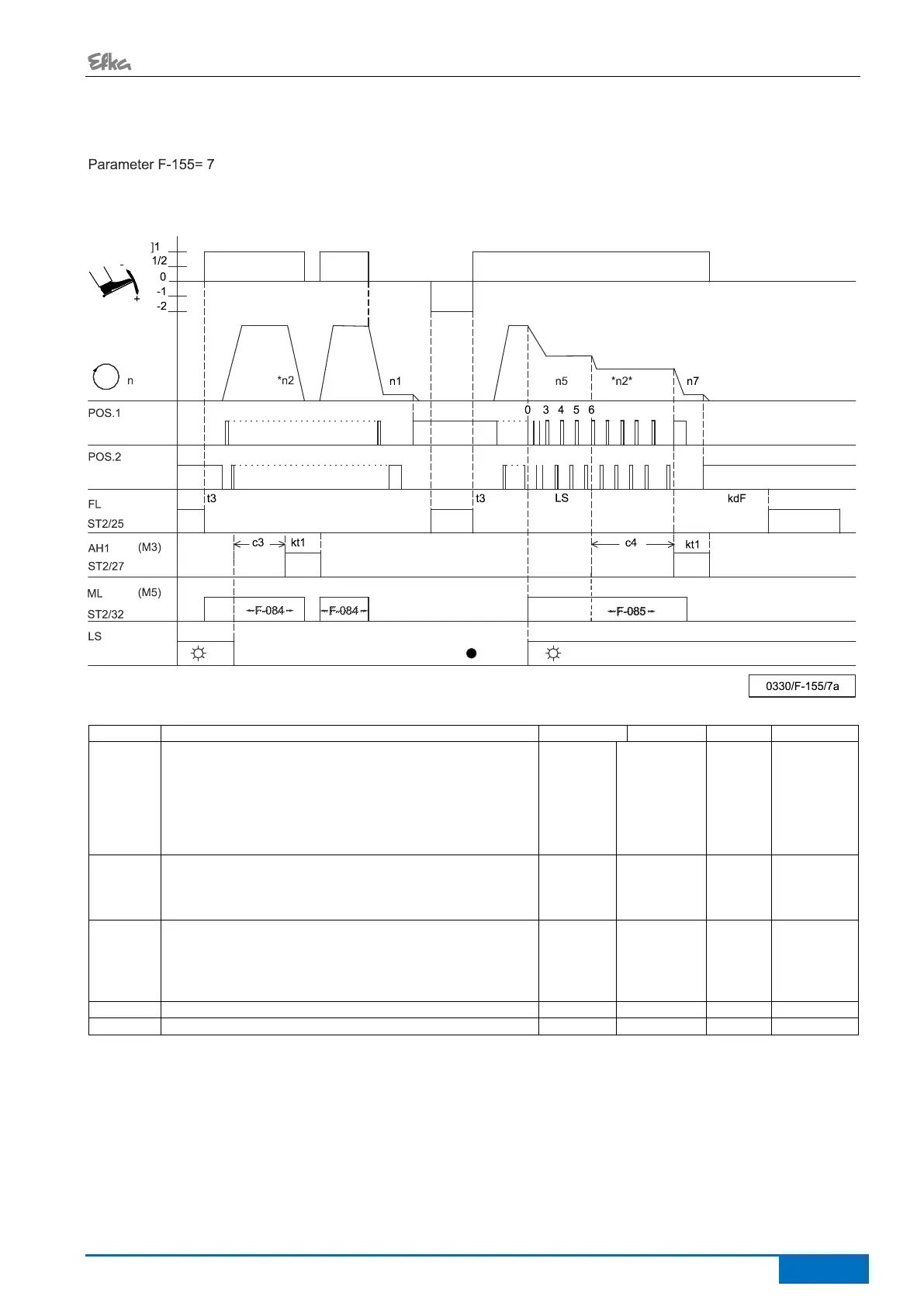

Mode 7 (overlock) chain suction controlled via light barrier and chain suction signal interrupted during
stop
Mark
Function
Parameters
Control
LS
UoS
-Pd
LSS
PLS
USS
Sewing foot lifting at the seam end
Light barrier
Sequence “overlock mode with stop”
Function “pedal in pos. –2” blocked
Start blockage with light barrier uncovered
Speed n5 after light barrier sensing
Tape cutter function
On
009 =1
018 =0
019 =2
192 =0
232 =0
Key -
n1
n2
n5
n7
Positioning speed
Maximum speed
Speed after light barrier sensing
Trimming speed
110
111
114
116
c3
c4
LS
kt1
kdF
Start counting for tape cutter
End counting for tape cutter
Light barrier compensating stitches
ON period of tape cutter
Switch-on delay of sewing foot lifting
002
003
004
281
288
Mle
Run-out stitch chain suction on seam start
084
Mla
Run-out stitch chain suction on seam end
085
