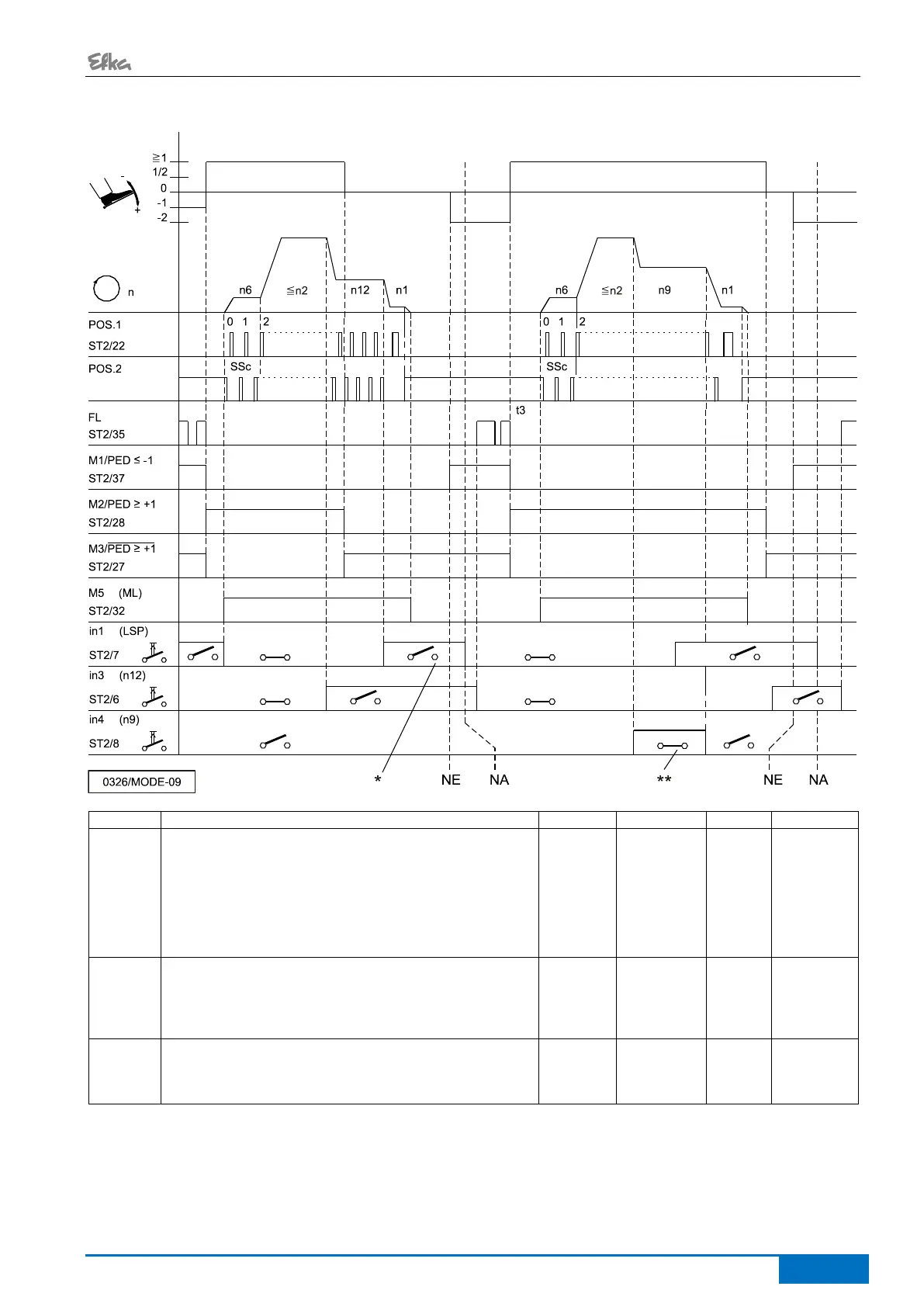

Mode 9 (backlatch Yamato)
Mark
Function
Parameters
Control
V810
V820
FAm
SSt
in1
in3
PGm
Mode 9
Basic position 2
Softstart
Machine run blockage activated with open switch
Automatic speed on an open switch
(The function of input 3 is inverted in mode 9)
Setting an external sensor to position 2.
(A sensor must be connected!)
On
290 =9
134 =1
240 =6
242 =10
270
Key >>
Key 4
Key 7
n1
n2
n6
n9
n12
Positioning speed
Maximum speed
Softstart speed
Limited speed n9
Automatic speed
110
111
115
122
118
SSc
t3
t4
t5
Softstart stitches
Start delay from lifted sewing foot
Full power of sewing foot lifting
Pulsing of sewing foot lifting
100
202
203
204
*) With this setting, machine run blockage (safety switch) takes priority over automatic speed!
**) Automatic speed n9 takes priority over machine run blockage (safety switch)!
NA Start of seam
NE Seam end
