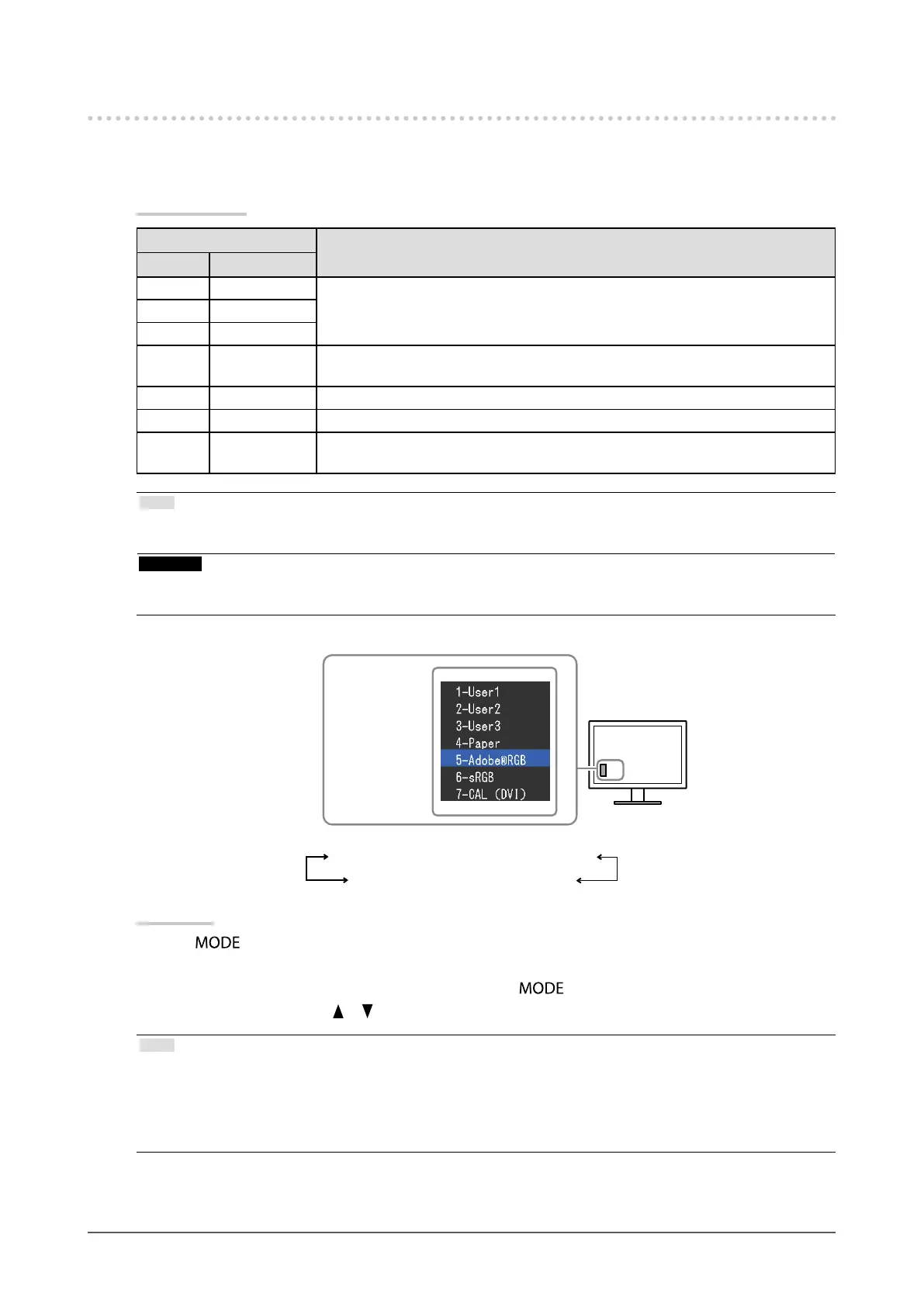

Chapter2AdjustingScreens
2-3. Adjusting Color
●
To select the display mode (color mode)
This function allows easy selection of a desired mode according to monitor application.
Display Modes
Mode
Purpose
CS230 CX240
1-User1 1-User1 Availableforthecolorsettingsaccordingtoyourpreference.
2-User2 2-User2
3-User3 3-User3
4-Paper 4-Paper Producesaprintedpapereffect.Suitablefordisplayingimagesfrommediasuch
asbooksanddocuments.
- 5-Adobe
®
RGB SuitableforcolormatchingwithAdobe
®
RGBcompatibleperipherals.
5-sRGB 6-sRGB SuitableforcolormatchingwithsRGBcompatibleperipherals.
6-CAL 7-CAL Displaysthescreenadjustedby“ColorNavigator”colormanagementsoftware
and“ColorNavigatorElements”photocolormatchingsoftware.
Note
• In CAL mode, ColorNavigator and ColorNavigator Elements can be used for adjustment.
• Available CAL mode differs depending on each input signal.
Attention
• Avoid operating any function of the monitor while using ColorNavigator and/or ColorNavigator Elements. Regarding
ColorNavigator and ColorNavigator Elements, see “To use ColorNavigator / ColorNavigator Elements” (page 10).
Example:AtDVIinput(CX240)
Themodemenu
appears.
1-User1←→2-User2←→3-User3←→4-Paper
7-CAL←→6-sRGB←→5-Adobe
®
RGB
Procedure
1. Press
.
The mode menu appears at the bottom left of the screen.
2. The mode among the list is highlighted in turn each time is pressed.
You can switch the mode with or while the mode menu is displayed.
Note
• The Adjustment menu and the Mode menu cannot be displayed at the same time.
• You can disable a specic mode to be selected. For more information, see “3-1. Enabling/Disabling Mode Selection”
(page 32).
• “ScreenManager Pro for LCD” allows you to select the color mode automatically according to the application used (see
“Chapter 3 Auto FineContrast” in the “ScreenManager Pro for LCD” User’s Manual).

Eizo ColorEdge CS230 Specifications

General

3D	No
Pixel pitch	0.2652 x 0.2652 mm
Aspect ratio	16:9
Product type	PC monitor
Response time	10.5 ms
Display diagonal	23 \
Display technology	LED
Vertical scan range	47.5 - 61 Hz
Horizontal scan range	26 - 68 kHz
Viewable size diagonal	584 mm
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
USB hub version	2.0
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
Pivot angle	0 - 90 °
Tilt angle range	0 - 30 °
Number of OSD languages	9
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	54 W
Power consumption (standby)	0.5 W
Power consumption (typical)	21 W
Certification	CUDO, TCO 6.0, TUV/S, TUV/Ergonomics, TUV/GS, cTUVus, CE, c-Tick, CB, VCCI-B, FCC-B, ICES-003-B, RoHS, WEEE, GOST-R
Product color	Black
Market positioning	Graphics design
Cables included	AC, DVI, USB
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	245.5 mm
Height (with stand)	526.5 mm
Weight (with stand)	7500 g
Depth (without stand)	75 mm
Width (without stand)	544 mm
Height (without stand)	353 mm
Weight (without stand)	4800 g
