Eizo ColorEdge CS230 User Manual

18

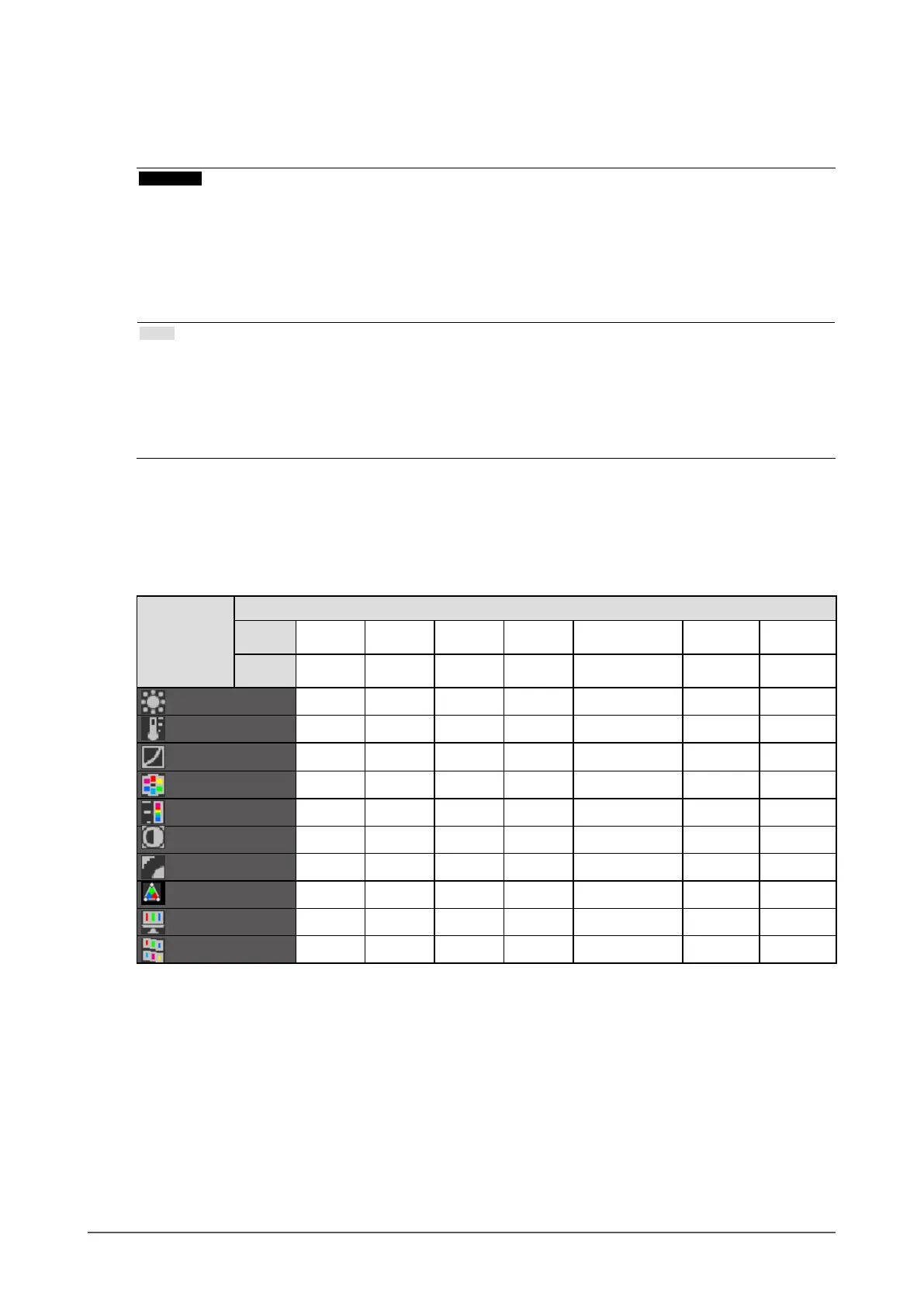

Chapter2AdjustingScreens
●
To perform advanced adjustments
“Color” of the Adjustment menu allows you to congure and save a separate set of color settings for each
mode.
Attention
• As it takes about 30 minutes (CS230) / 7 minutes (CS240: under our measurement conditions) for the performance of
electrical parts to stabilize, adjust the monitor 30 minutes (CS230) / 7 minutes (CX240) or more after the monitor power
has been turned on.
• Perform the range adjustment rst when adjusting color for analog signals (see “To adjust color gradation automatically”
(page 27)).
• The same image may be seen in different colors on multiple monitors due to their monitor-specic characteristics. Make
ne color adjustment visually when matching colors on multiple monitors.
Note
• The values shown in “%” or “K” are available only as reference.
• Using the “ScreenManager Pro for LCD” allows you to perform the color adjustment by using the mouse and
keyboard of your PC. The adjusted conditions can be stored as the color data to be read in later. (See “Chapter 4 Color
Adjustment” in the User’s Manual for “ScreenManager Pro for LCD”.)
• Using ColorNavigator enables the monitor adjustment that prioritizes color matching of multiple monitors. For details,
refer to the ColorNavigator User’s Manual.
●
Adjustable settings in each mode
The adjustable settings depend on the mode. (You cannot select any non-adjustable or non-settable function.)
The adjustments or settings made for each mode are applied to all input signals.
√: Adjustable -: Not adjustable
Function
Color Mode
CS230
1-User1 2-User2 3-User3 4-Paper - 5-sRGB 6-CAL
CX240
1-User1 2-User2 3-User3 4-Paper 5-Adobe
®
RGB 6-sRGB 7-CAL
Brightness √ √ √ √ √ √ -
Temperature √ √ √ √ √ √ -
Gamma √ √ √ - √ √ -
Hue √ √ √ - - - -
Saturation √ √ √ - - - -
ContrastEnhancer √ √ √ - - - -
OutlineEnhancer √ √ √ √ √ √ -
Clipping - - - - √ √ -
Gain √ √ √ - - - -
6Colors √ √ √ - - - -

Eizo ColorEdge CS230 Specifications

General

3D	No
Pixel pitch	0.2652 x 0.2652 mm
Aspect ratio	16:9
Product type	PC monitor
Response time	10.5 ms
Display diagonal	23 \
Display technology	LED
Vertical scan range	47.5 - 61 Hz
Horizontal scan range	26 - 68 kHz
Viewable size diagonal	584 mm
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
USB hub version	2.0
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
Pivot angle	0 - 90 °
Tilt angle range	0 - 30 °
Number of OSD languages	9
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	54 W
Power consumption (standby)	0.5 W
Power consumption (typical)	21 W
Certification	CUDO, TCO 6.0, TUV/S, TUV/Ergonomics, TUV/GS, cTUVus, CE, c-Tick, CB, VCCI-B, FCC-B, ICES-003-B, RoHS, WEEE, GOST-R
Product color	Black
Market positioning	Graphics design
Cables included	AC, DVI, USB
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	245.5 mm
Height (with stand)	526.5 mm
Weight (with stand)	7500 g
Depth (without stand)	75 mm
Width (without stand)	544 mm
Height (without stand)	353 mm
Weight (without stand)	4800 g
