Chapter7Reference
Chapter 7 Reference
7-1. Attaching the Optional Arm
An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site
for the corresponding optional arm (or optional stand). http://www.eizo.com
Attention
• When attaching an arm or stand, follow the instructions of their User’s Manual.
• When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming to the VESA
standard.
- Clearance between the screw holes: 100 mm × 100 mm
- Thickness of plate: 2.6 mm
- Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables.
• When using another manufacturer’s arm or stand, use the following screws to secure it.
- Screws xing the stand to the monitor.
• When using an arm or stand, attach it to meet the following tilt angles of the monitor.
- Up 45˚, down 45˚
• Connect the cables after attaching an arm or stand.
• Do not move the removed stand up and down. Doing so may result in injury or device damage.
• The monitor and arm or stand are heavy. Dropping them may result in injury or equipment damage.
• When setting the monitor to the portrait style, turn the monitor screen 90˚ in clockwise direction.
Procedure
1.
Lay the LCD monitor on a soft cloth spread over on a stable surface with the
panel surface facing down.
2.
Remove the stand.
Prepare a screwdriver. Loosen the screws (four) securing the unit and the stand with the screwdriver.

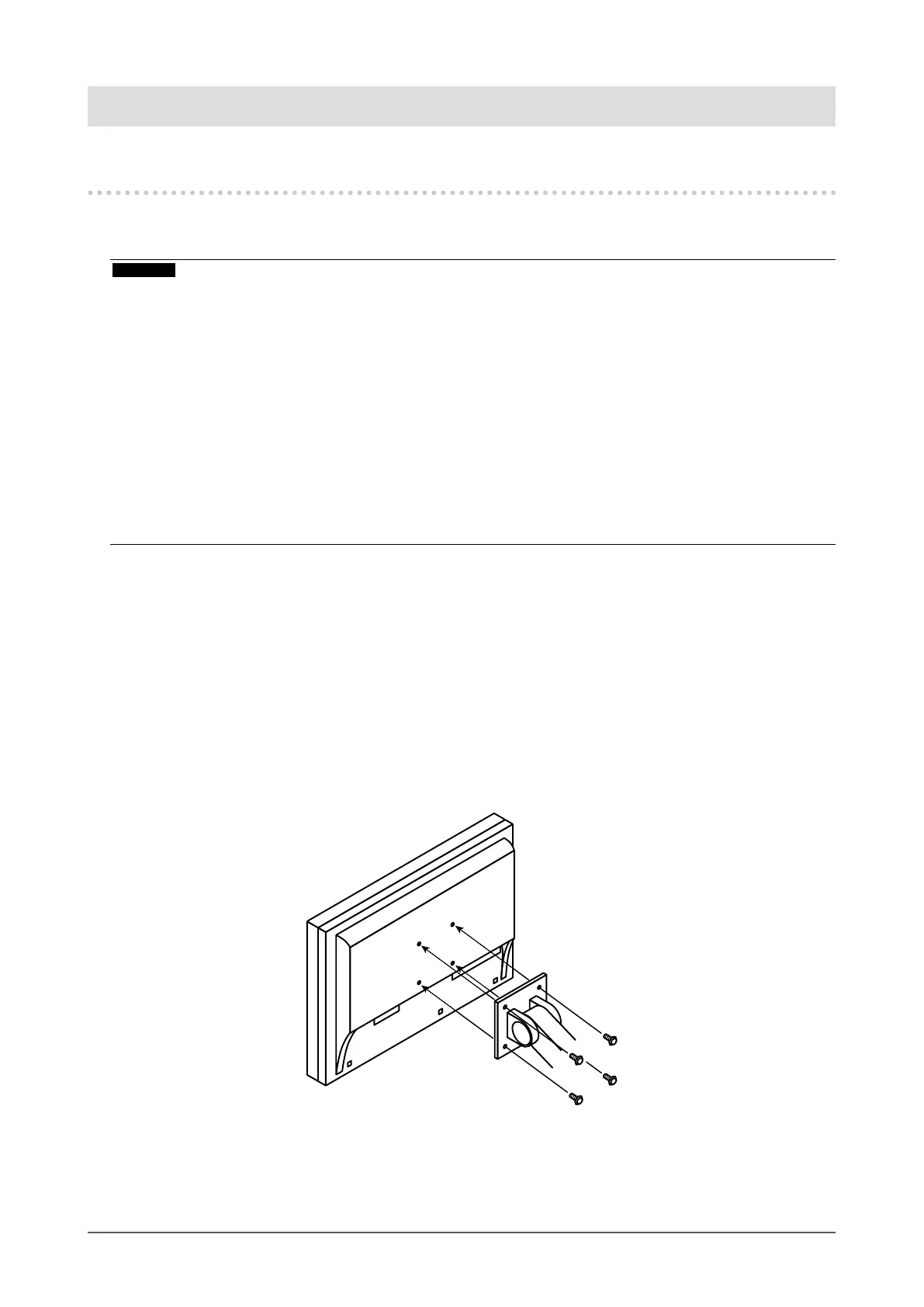

3.
Attach the arm or stand to the monitor.
Secure the monitor to the arm or stand using the screws xing the stand to the monitor.

Eizo ColorEdge CS230 Specifications

General

3D	No
Pixel pitch	0.2652 x 0.2652 mm
Aspect ratio	16:9
Product type	PC monitor
Response time	10.5 ms
Display diagonal	23 \
Display technology	LED
Vertical scan range	47.5 - 61 Hz
Horizontal scan range	26 - 68 kHz
Viewable size diagonal	584 mm
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
USB hub version	2.0
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
Pivot angle	0 - 90 °
Tilt angle range	0 - 30 °
Number of OSD languages	9
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	54 W
Power consumption (standby)	0.5 W
Power consumption (typical)	21 W
Certification	CUDO, TCO 6.0, TUV/S, TUV/Ergonomics, TUV/GS, cTUVus, CE, c-Tick, CB, VCCI-B, FCC-B, ICES-003-B, RoHS, WEEE, GOST-R
Product color	Black
Market positioning	Graphics design
Cables included	AC, DVI, USB
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	245.5 mm
Height (with stand)	526.5 mm
Weight (with stand)	7500 g
Depth (without stand)	75 mm
Width (without stand)	544 mm
Height (without stand)	353 mm
Weight (without stand)	4800 g
