Eizo ColorEdge CS230 User Manual

26

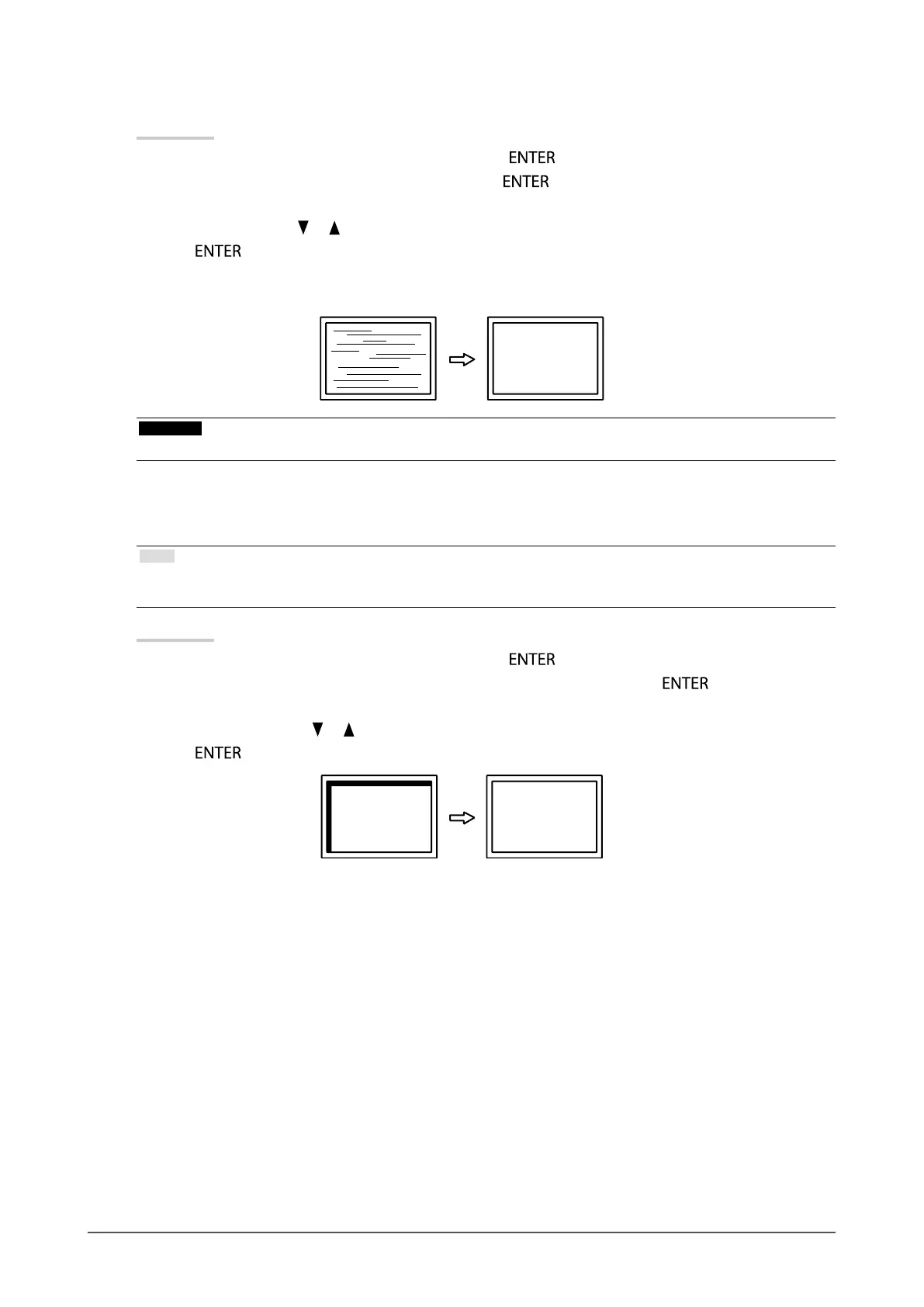

Chapter2AdjustingScreens
●
To remove ickering or blurring
Procedure
1. Choose “Analog Adjustment” from “Screen”, and press
.
2. Choose “Phase” from “Analog Adjustment”, and press
.
The “Phase” menu appears.
3. Adjust the phase with or to minimize ickering or blurring.
4. Press
to exit.
When vertical bars appear on the screen after adjustment, go back to “To eliminate vertical bars”.
(Clock → Phase → Position)
Attention
• Flickering or blurring may not be eliminated depending on your PC or graphics board.
●
To correct the screen position
Note
• Since the number of pixels and the pixel positions are xed on the LCD monitor, only one position is provided to display
images correctly. The position adjustment is made to shift an image to the correct position.
Procedure
1. Choose “Analog Adjustment” from “Screen”, and press
.
2. Choose “Hor. Position” or “Ver. Position” from “Analog Adjustment”, and press
.
The “Hor.Position” or “Ver.Position” menu appears.
3. Adjust the position with or .
4. Press
to exit.
5. Close Pattern 1.

Eizo ColorEdge CS230 Specifications

General

3D	No
Pixel pitch	0.2652 x 0.2652 mm
Aspect ratio	16:9
Product type	PC monitor
Response time	10.5 ms
Display diagonal	23 \
Display technology	LED
Vertical scan range	47.5 - 61 Hz
Horizontal scan range	26 - 68 kHz
Viewable size diagonal	584 mm
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
USB hub version	2.0
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
Pivot angle	0 - 90 °
Tilt angle range	0 - 30 °
Number of OSD languages	9
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	54 W
Power consumption (standby)	0.5 W
Power consumption (typical)	21 W
Certification	CUDO, TCO 6.0, TUV/S, TUV/Ergonomics, TUV/GS, cTUVus, CE, c-Tick, CB, VCCI-B, FCC-B, ICES-003-B, RoHS, WEEE, GOST-R
Product color	Black
Market positioning	Graphics design
Cables included	AC, DVI, USB
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	245.5 mm
Height (with stand)	526.5 mm
Weight (with stand)	7500 g
Depth (without stand)	75 mm
Width (without stand)	544 mm
Height (without stand)	353 mm
Weight (without stand)	4800 g
