Eizo ColorEdge CS230 User Manual

25
Chapter2AdjustingScreens
2.
Prepare to use analog screen adjustment patterns.
Load the “EIZO LCD Utility Disk” to your PC, and then open the “Screen adjustment pattern les”.
Note
• For details and instructions on opening the “Screen adjustment pattern les”, refer to the Readme.txt le.
3.
Perform the auto adjustment again with the analog screen adjustment pattern
displayed.
●

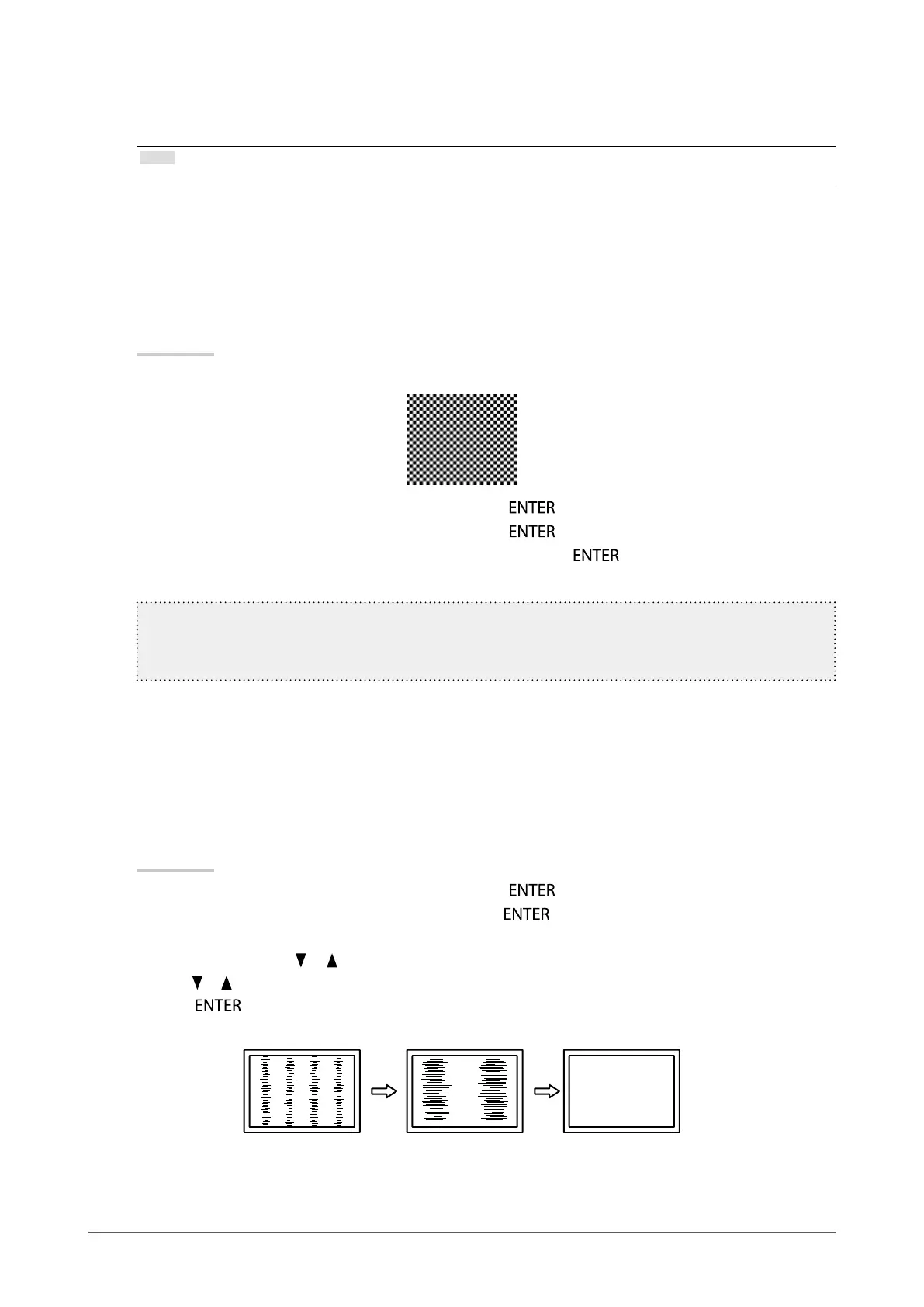

To adjust ickering, screen position, and screen size automatically
Procedure
1. Display Pattern 1 in full screen on the monitor using the “Screen adjustment pattern les”.
2. Choose “Screen” from the Adjustment menu, and press .
3. Choose “Analog Adjustment” from “Screen”, and press
.
4. Choose “Auto Adjustment” from “Analog Adjustment”, and press
.
Flickering, screen position, and screen size are corrected by the auto-adjustment function.
IfthescreenisnotdisplayedcorrectlyevenafterperformingAutoAdjustment,performtheadjustments
accordingtotheproceduresonthefollowingpages.Ifthescreenisdisplayedcorrectly,goto“Toenhance
outlineofimage”(page21).
4.
Choose “Screen” from the Adjustment menu to perform advanced
adjustments.
Adjust the clock, phase and position, in this order.
●
To eliminate vertical bars
Procedure
1. Choose “Analog Adjustment” from “Screen”, and press
.
2. Choose “Clock” from “Analog Adjustment”, and press
.
The “Clock” menu appears.
3. Adjust the clock with or to eliminate vertical bars.
Press or slowly so as not to miss the adjustment point.
4. Press to exit.
When blurring, ickering or bars appear on the screen after adjustment, proceed to “To remove ickering or blurring”.

Eizo ColorEdge CS230 Specifications

General

3D	No
Pixel pitch	0.2652 x 0.2652 mm
Aspect ratio	16:9
Product type	PC monitor
Response time	10.5 ms
Display diagonal	23 \
Display technology	LED
Vertical scan range	47.5 - 61 Hz
Horizontal scan range	26 - 68 kHz
Viewable size diagonal	584 mm
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
USB hub version	2.0
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
Pivot angle	0 - 90 °
Tilt angle range	0 - 30 °
Number of OSD languages	9
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	54 W
Power consumption (standby)	0.5 W
Power consumption (typical)	21 W
Certification	CUDO, TCO 6.0, TUV/S, TUV/Ergonomics, TUV/GS, cTUVus, CE, c-Tick, CB, VCCI-B, FCC-B, ICES-003-B, RoHS, WEEE, GOST-R
Product color	Black
Market positioning	Graphics design
Cables included	AC, DVI, USB
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	245.5 mm
Height (with stand)	526.5 mm
Weight (with stand)	7500 g
Depth (without stand)	75 mm
Width (without stand)	544 mm
Height (without stand)	353 mm
Weight (without stand)	4800 g
