Eizo ColorEdge CS230 User Manual

48
Chapter7Reference

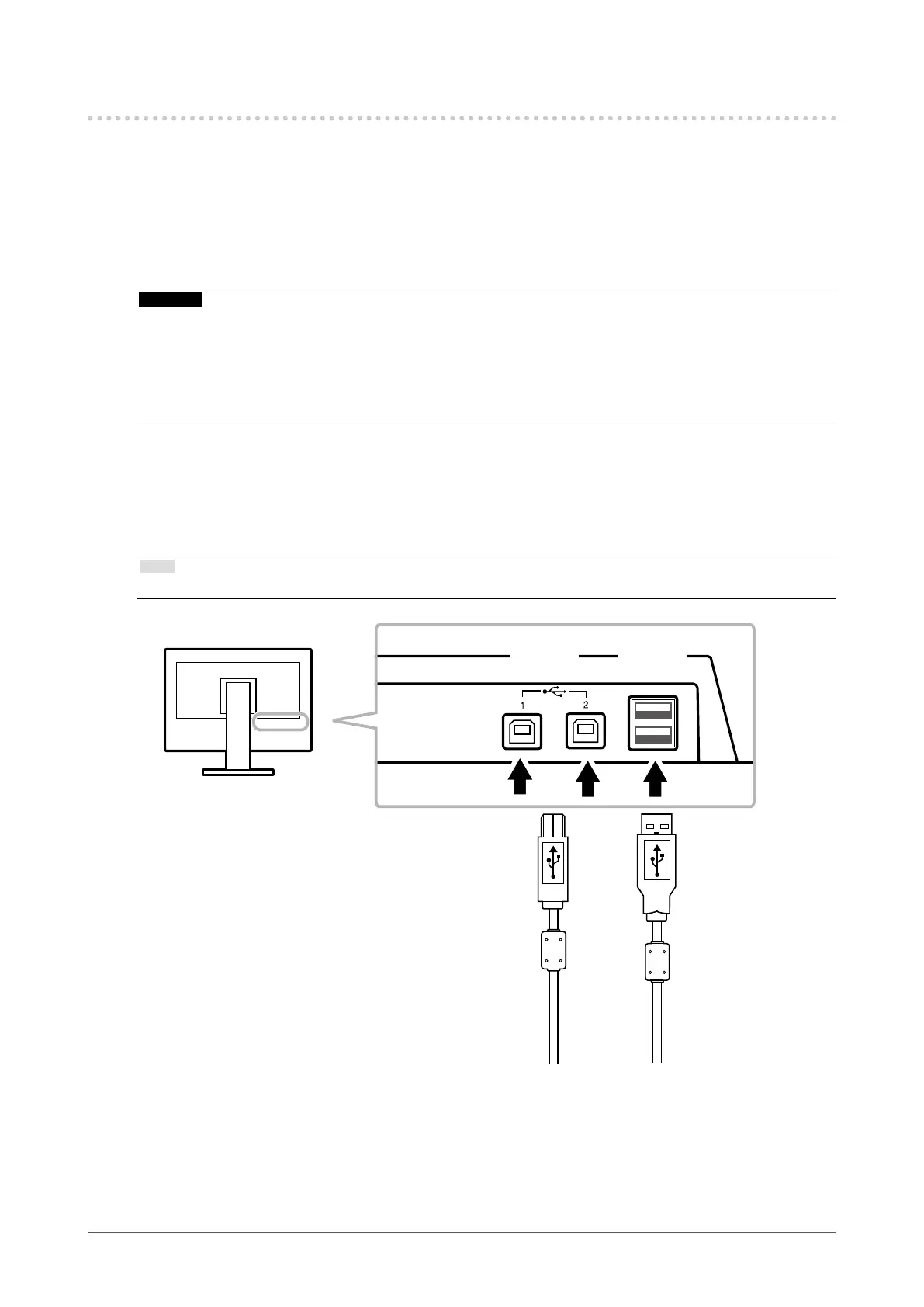

7-3. Making Use of USB (Universal Serial Bus)
This monitor has a USB hub. Connected to a PC compatible with USB, this monitor functions as a USB hub
allowing connection to peripheral USB devices.
●
System Requirement
• A PC equipped with a USB port.
• Windows 2000/XP/Vista/7 or Mac OS 9.2.2 and Mac OS X 10.2 or later
• USB cable
Attention
• This monitor may not work depending on PC, OS or peripheral devices. For USB compatibility of peripheral devices,
contact their manufacturers.
• Devices connected to the USB upstream port and USB downstream port work when the monitor is in power saving
mode or when the power button of the monitor is Off. Therefore, power consumption of the monitor varies with
connected devices even in the power saving mode.
• When the main power of the monitor is Off, device connected to the USB downstream port does not operate.
●
Procedure
1. Connect the signal cable between a PC and the monitor, and turn on the PC.
2. Using the USB cable, connect the computer’s downstream port and the monitor’s upstream port 1.
3. Connect the peripheral USB device to the USB downstream port of the monitor.
Note
• By default, USB upstream port 1 is enabled. To connect two PCs, see “3-8. Switching USB Port Automatically” (page 34).
USB
downstream
port
USB
upstream
port

Eizo ColorEdge CS230 Specifications

General

3D	No
Pixel pitch	0.2652 x 0.2652 mm
Aspect ratio	16:9
Product type	PC monitor
Response time	10.5 ms
Display diagonal	23 \
Display technology	LED
Vertical scan range	47.5 - 61 Hz
Horizontal scan range	26 - 68 kHz
Viewable size diagonal	584 mm
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
USB hub version	2.0
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
Pivot angle	0 - 90 °
Tilt angle range	0 - 30 °
Number of OSD languages	9
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	54 W
Power consumption (standby)	0.5 W
Power consumption (typical)	21 W
Certification	CUDO, TCO 6.0, TUV/S, TUV/Ergonomics, TUV/GS, cTUVus, CE, c-Tick, CB, VCCI-B, FCC-B, ICES-003-B, RoHS, WEEE, GOST-R
Product color	Black
Market positioning	Graphics design
Cables included	AC, DVI, USB
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	245.5 mm
Height (with stand)	526.5 mm
Weight (with stand)	7500 g
Depth (without stand)	75 mm
Width (without stand)	544 mm
Height (without stand)	353 mm
Weight (without stand)	4800 g
