E L A N H O M E S Y S T E M S
INSTALLATION MANUAL
© ELAN Home Systems 2009 • All rights reserved. Page 17
S86A
Stereo Zones
To create an independent stereo zone, simply connect the S86A’s Speaker Outputs to a pair of speakers. Make sure
to take into account the amplifier’s 8 Ohm minimum impedance when choosing and configuring speakers. Volume
will be controlled using IR or RS-232 commands at pre-amp level. Any and all speakers connected to these chan-
nels will ramp volume up/down together. Use a VIA! Touch Panel, keypad, Olé touchpad or hand-held remote con-
trol to control functions (including volume) in zones with this configuration. Figure 2-2 shows a typical example of
independent stereo zones.
S86A

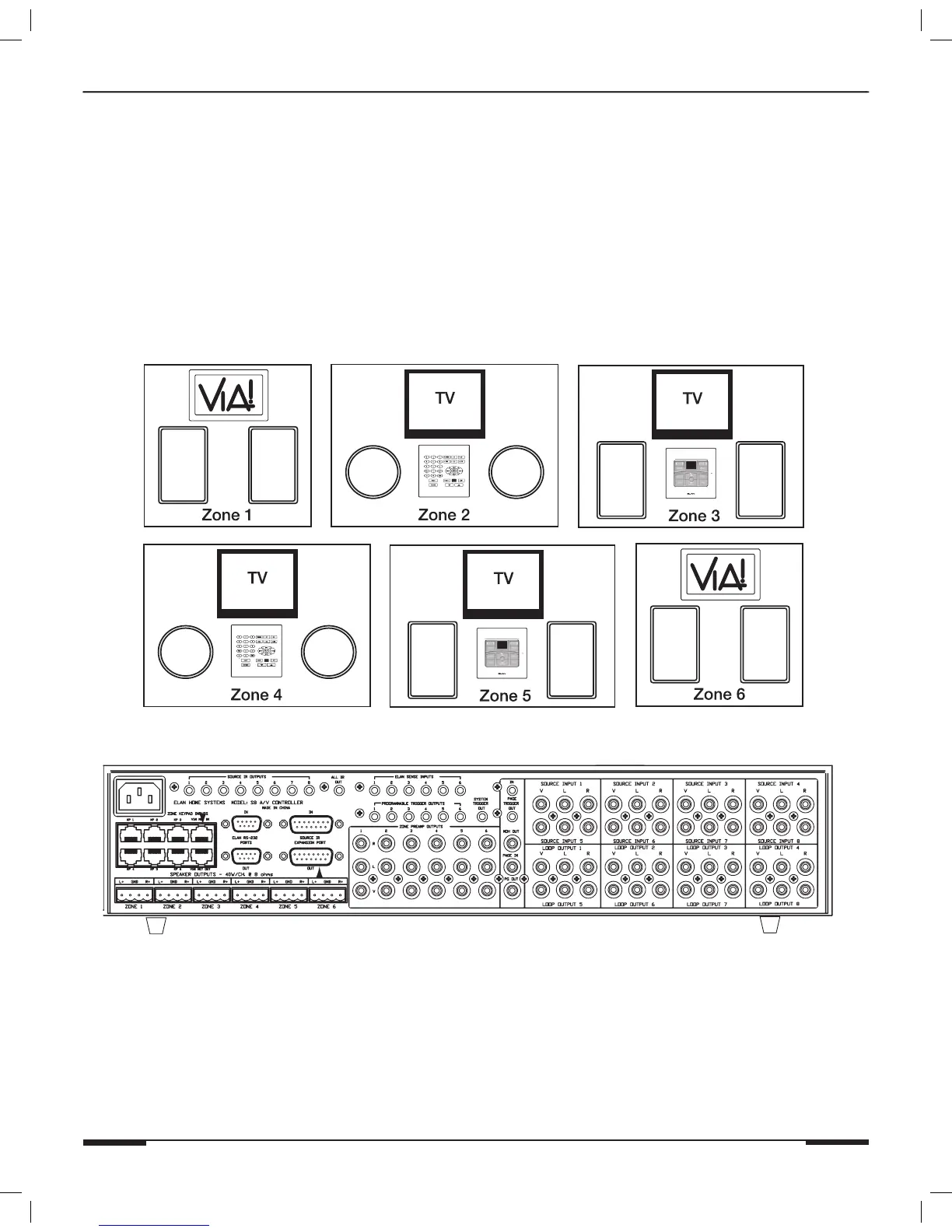

Figure 2-2: Stereo Zones
