E L A N H O M E S Y S T E M S
INSTALLATION MANUAL
Page 30 © ELAN Home Systems 2009 • All rights reserved.
S86A
“C” Punchdown Locations

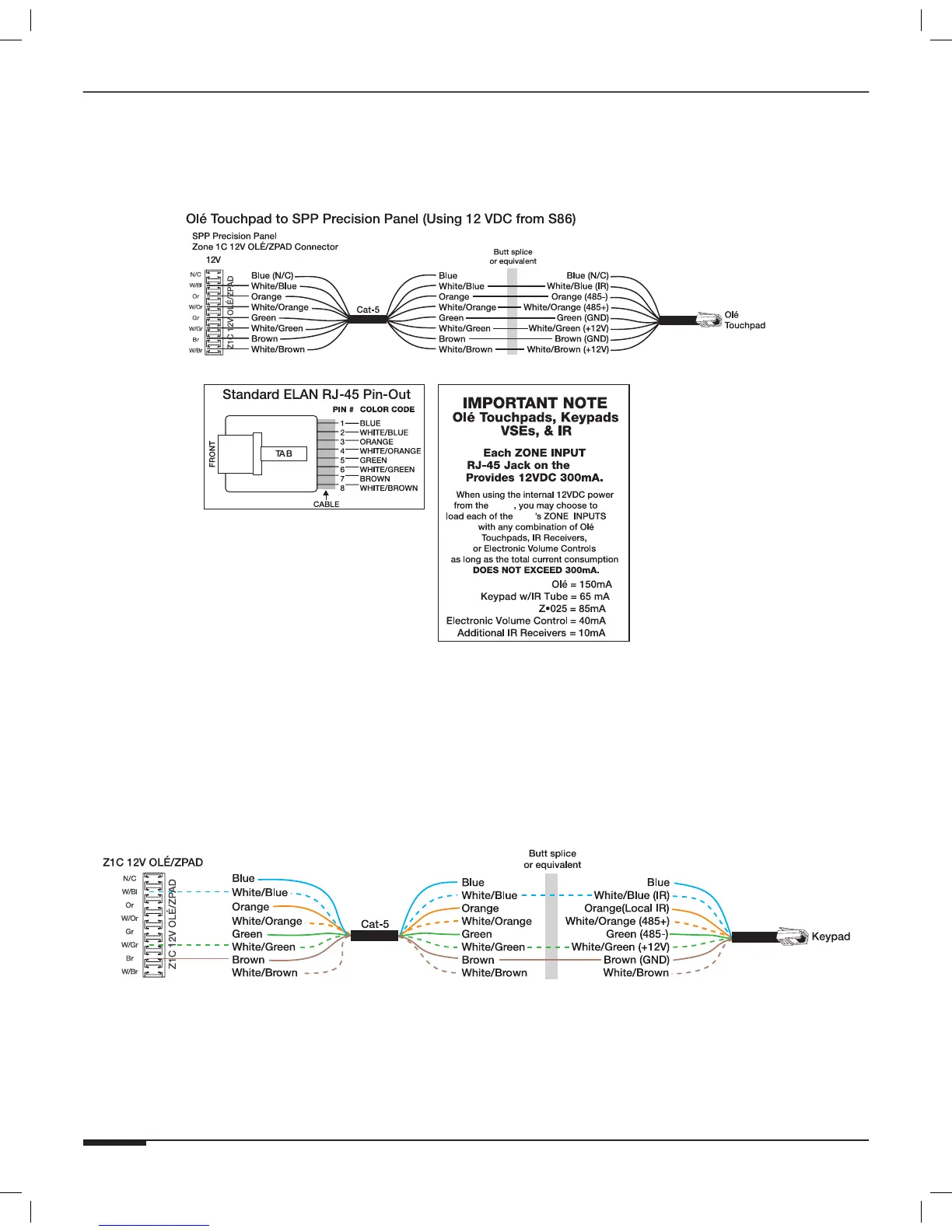

Figure 3-9 shows connectivity to the “C” location and utilizing internal 12VDC power from the S86A Multi-Room
Controller.
S86A
S86A
S86A
Figure 3-9: Olé Touchpad “C” Internal 12VDC Connections
Z•Pad Connections
“C” Punchdown Locations
It is possible to use ELAN Z•Pad keypads as zone controllers in an S86A-based system. These keypads will con-
trol IR sources and S86A Controller function, but they WILL NOT receive RS- 485 status feedback. This means that
source selection status, shared source status, etc. will not be available to these keypads. Source selection and con-
trol are enabled and will function correctly.
Figure 3-10. Z•Pad Connections
Note: ELAN Z PAD keypads will NOT receive status feedback when
connected to the S86A.
To Next Page
