S86A
Video Applications
The S86A has built-in Composite Video switching capabilities that allow for multiple configuration options. Each
audio Source Input has a corresponding Video Input, so that up to eight video sources can be utilized. Each Loop
Output also has a corresponding video output, for applications that share sources, or for multi-chassis S86A con-
figurations. Each Zone Preamp Output has a video output, so that up to six TVs, VIA! Touch Panels, or monitors can
receive video from any Source Input
Audio and video can track each other on a one-to-one, source-for-source, zone-for-zone basis, or can be pro-
grammed for independent switching. This will allow multiple video inputs to be assigned to a single source, or

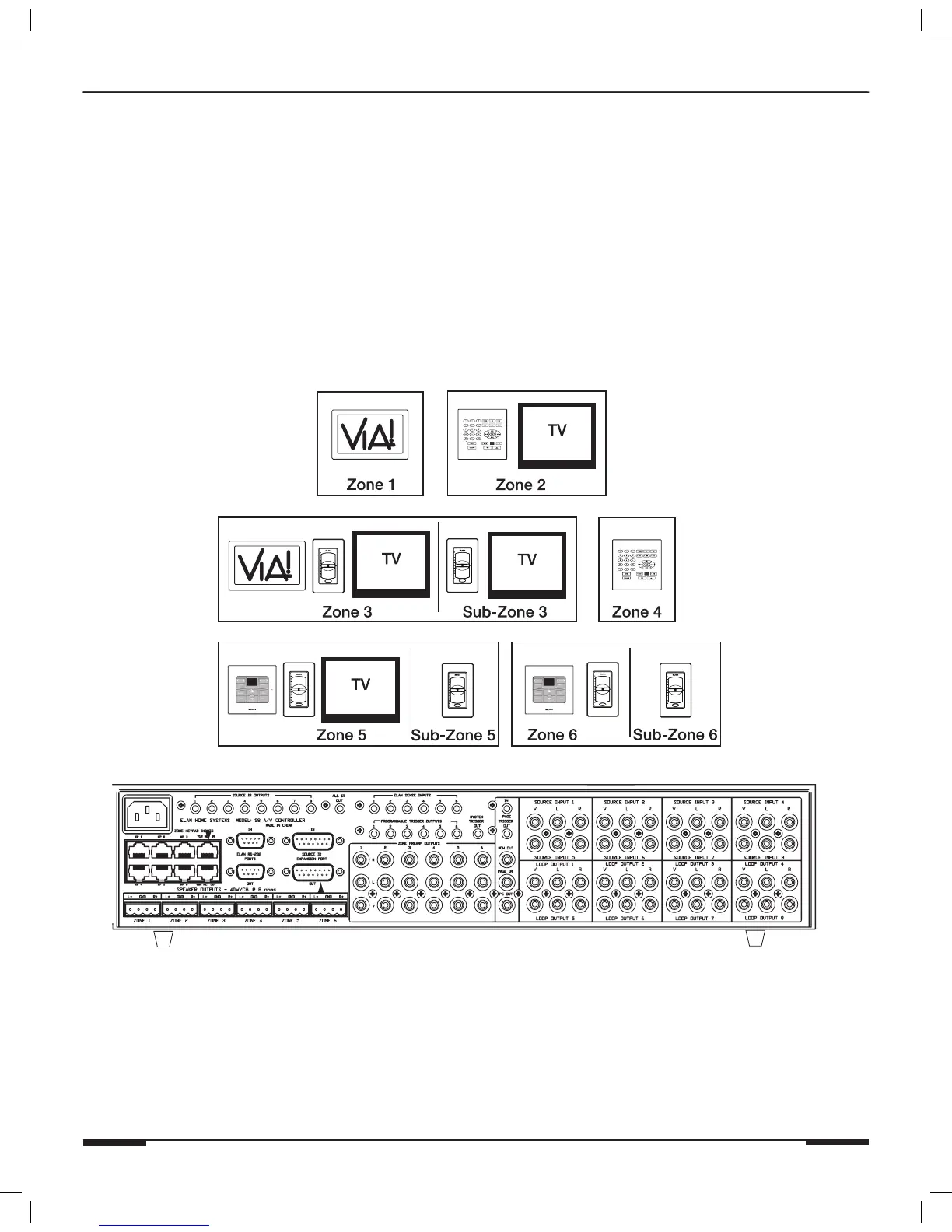

multiple video outputs to be routed to a single zone. Figure 2-6 shows a six zone system with certain zones that
have multiple video outputs, other zones with a single video output, and others with no video outputs. See
Chapter 3: Connections for specific examples of Source Video Input applications.
S86A
Figure 2-6: Video Zone Output Application Example
