Elan s86a - Loop Output Connections

E L A N H O M E S Y S T E M S
INSTALLATION MANUAL
Page 46 © ELAN Home Systems 2009 • All rights reserved.
S86A
Loop Output Connections
Ideal for sharing sources with Home Theaters, the Loop Outputs pass line-level audio and composite video directly
out of the corresponding Source Input. The audio and video are buffered, therefore no signal loss will occur. Use
RCA audio/video cables to connect a Loop Output to additional S86A chassis or a Home Theater receiver.
S86A #1
S86A #2 S86A #4
S86A #3

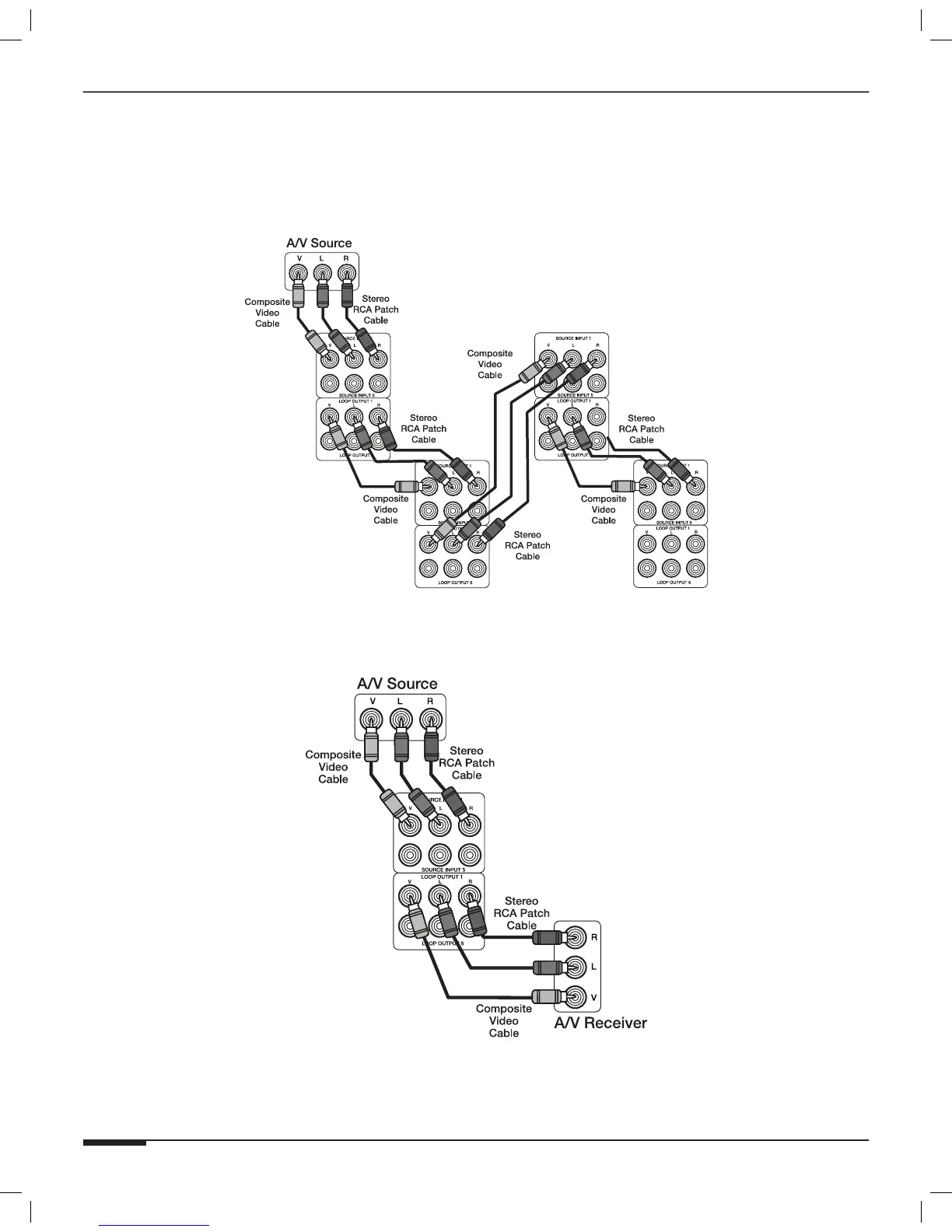

Figure 3-36: Loop Output Connections-Multiple Chassis
S86A
Figure 3-37: Loop Output Connections-A/V Receiver
