S86A
Zone Preamp Outputs-Video
The video Zone Preamp Outputs are used to send signals to TVs, VIA! Touch Panels, or monitors located in the
various zones of the house. By default, each zone has a single video output. It is possible to have multiple outputs
going to the same zone. Use VIA!TOOLS or ELANTOOLS setup software to configure these outputs (see Advanced
Video Switching-Composite Video). If more complex video switching is needed for a particular system, ELAN rec-
ommends the use of a V8 Video Controller to switch up to eight sources to up to eight zones (or use up to three
V8s to switch up to eight sources to up to twenty-four zones). See Loop Output Connections- Advanced Video
Switching for details.

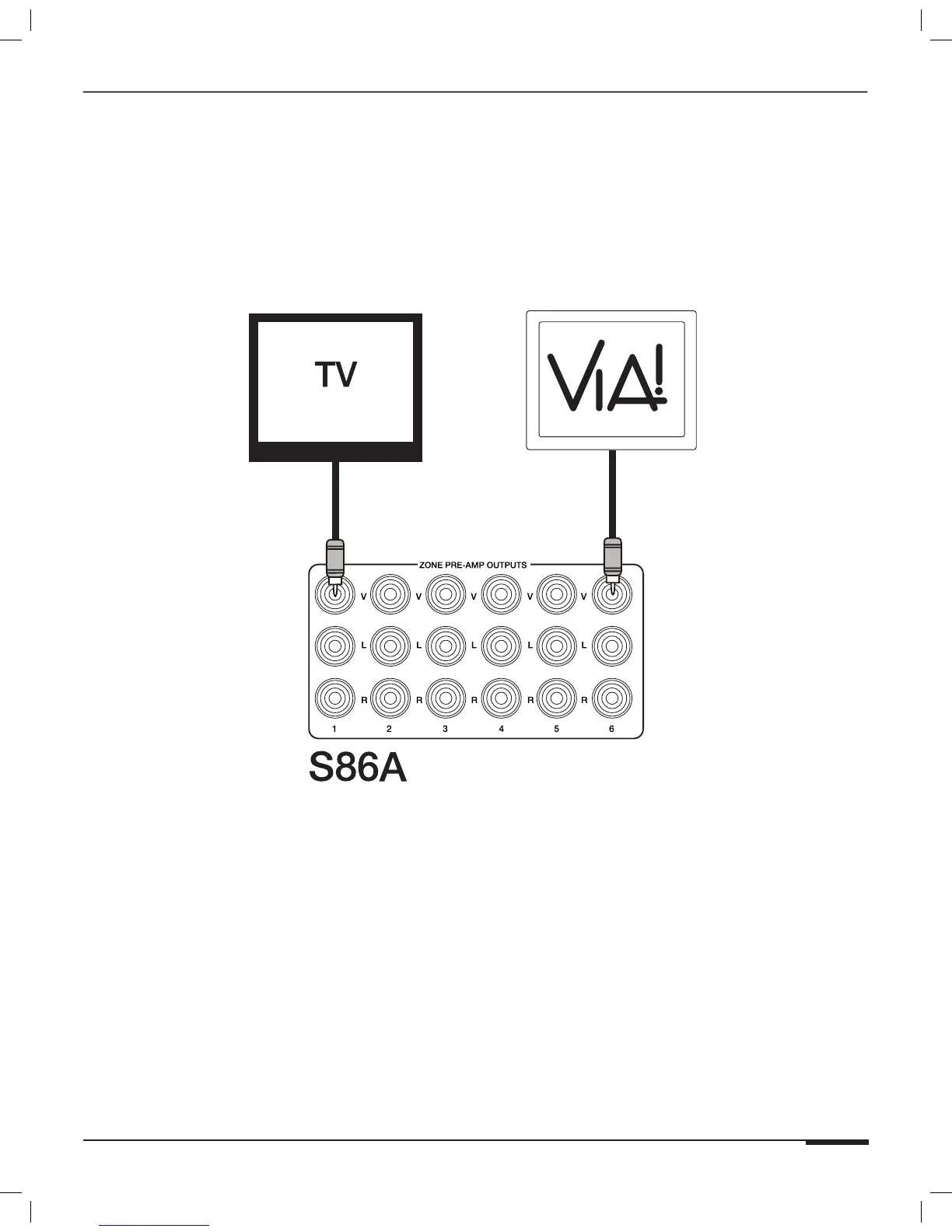

Figure 3-43: Zone Preamp Outputs-Video
