S86A
Programmable Trigger Connections
Devices that are remotely located can utilize the SPP’s TRIGGERS Connections in order to receive signals based
on zone activation or system activation. The Programmable Trigger Outputs can be controlled using IR or Serial
Commands. Examples include remotely located amplifiers and/or power controllers.

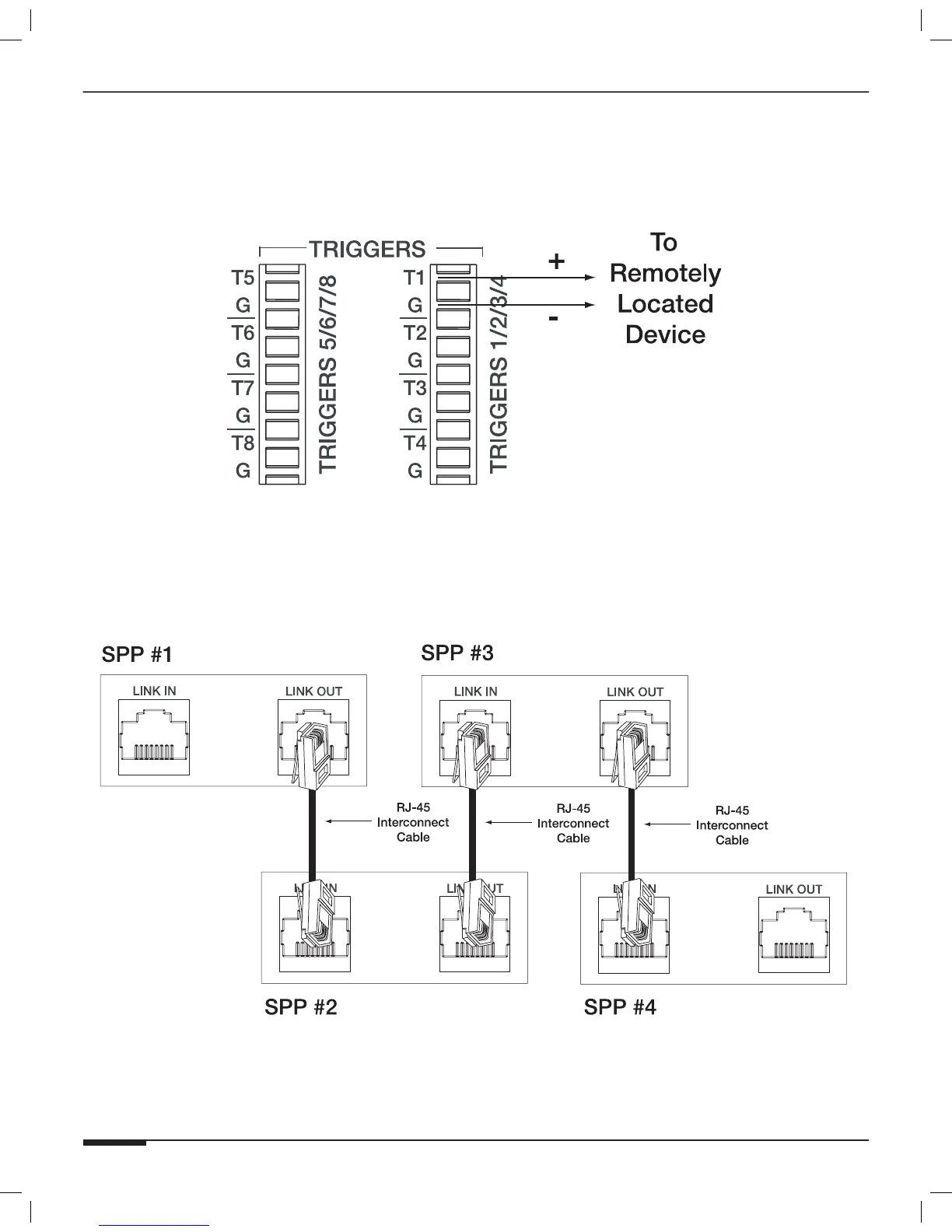

Figure 3-13: Programmable Trigger Connections
LINK IN/LINK OUT Connections
Use the LINK IN and LINK OUT RJ-45 connectors to link multiple S86A chassis and multiple SPP Precision Panels.
Use an RJ-45 to RJ-45 Interconnect cable from the LINK IN jack of the first SPP Panel to the LINK IN jack of the
second SPP Panel and so on.
Figure 3-14: Link In/Link Out Connections
