S86A
Connections When Using an ELAN SPP
System Precision Panel - Rear
Note: Prior to making any connections on the SPP, place the
appropriate overlay on the rear of the Precision Panel for the
system type that is being installed. For S86A-based systems, use
the overlay called S86.
P/N9801438 REV:X6

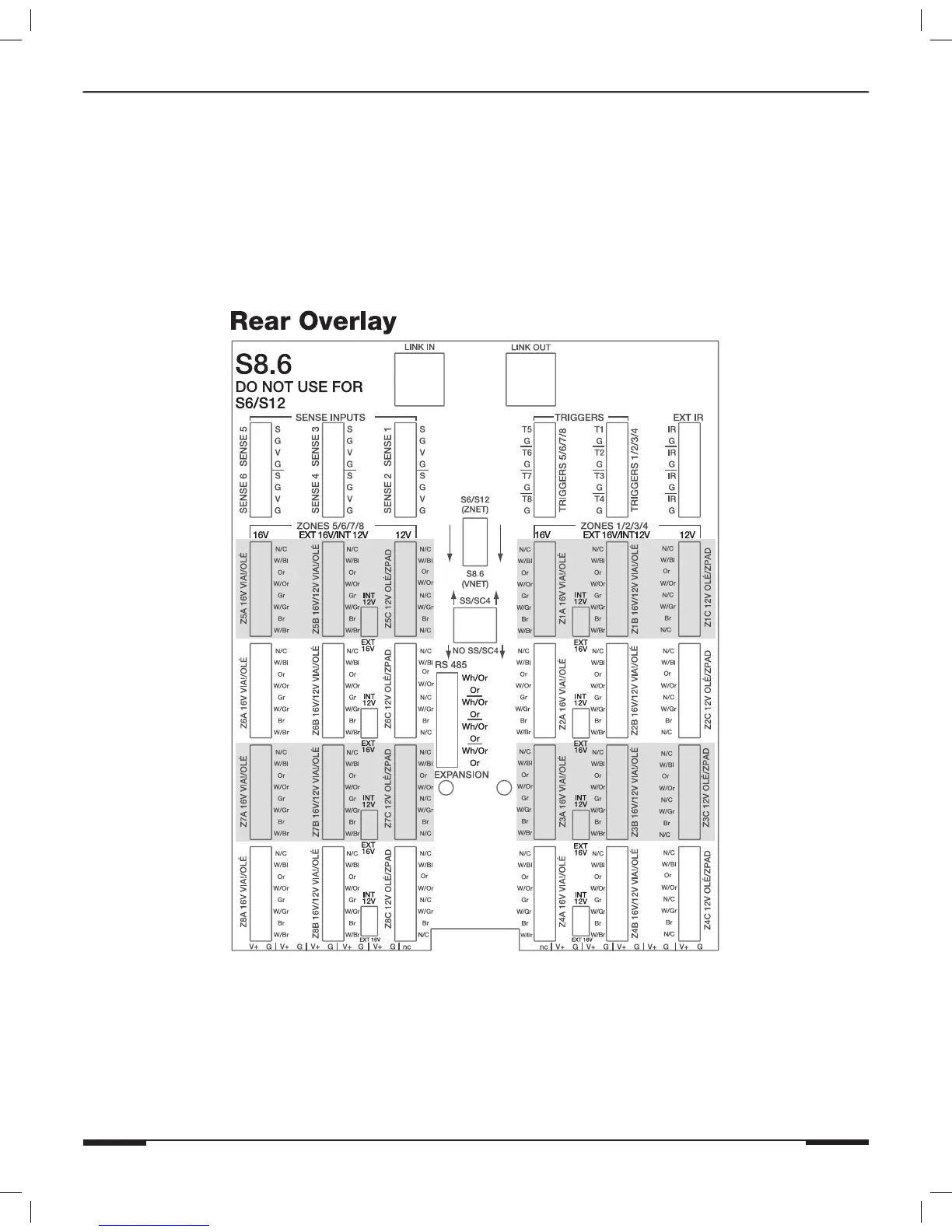

Figure 3-3: SPP “S86A” Overlay
