Each SPP punchdown location can contain two wires; one on top of the other. Use the included 110 punch-down
tool to make connections to the rear panel of the SPP. Make sure to use the included punchdown caps so that
connections do not inadvertently become loose! Use the included Rear Panel Overlay to simplify punchdowns. The
SPP Precision Panel includes two Overlays - choose the one labelled “S86”. This Overlay provides a color-by-color
punchdown template specifically for the S86A Multi-Room Controller.
P/N9801438 REV:X6

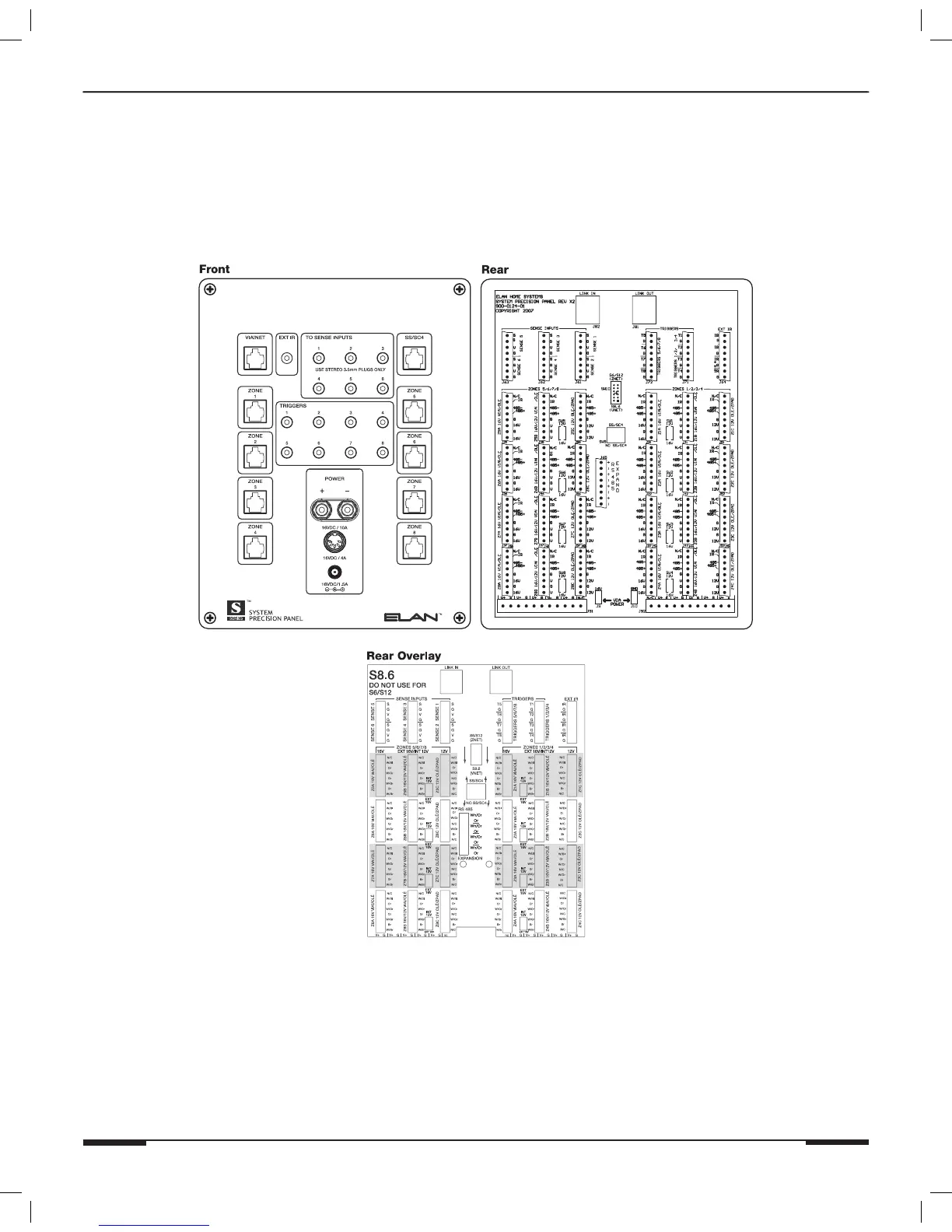

Figure 3-2: SPP Precision Panel
