S86A
“B” Punchdown Locations-12V
The SPP Precision panel has the ability to connect touchpanels, keypads and Olé Touchpads in various combina-
tions in each zone. The “B” punchdown location can either pass 12VDC power from the S86A Controller (Internal
Power) or 16VDC from a power supply connected to the front of the SPP (External). Figure 3-8 shows connectivity
to the “B” location and utilizing internal 12VDC power from the S86A Muli-Room Controller.
Note: Place the “INT 12V/EXT 16V” switch in the UP (“INT 12V”)
position for this application.
S86A
S86A
S86A
BLUE
WHITE/BLUE
ORANGE
WHITE/ORANGE
GREEN
WHITE/GREEN
BROWN
WHITE/BROWN
1
2
3
4
5
6
7
8
PIN # COLOR CODE
FRONT
CABLE
Standard ELAN RJ-45 Pin-Out
TAB

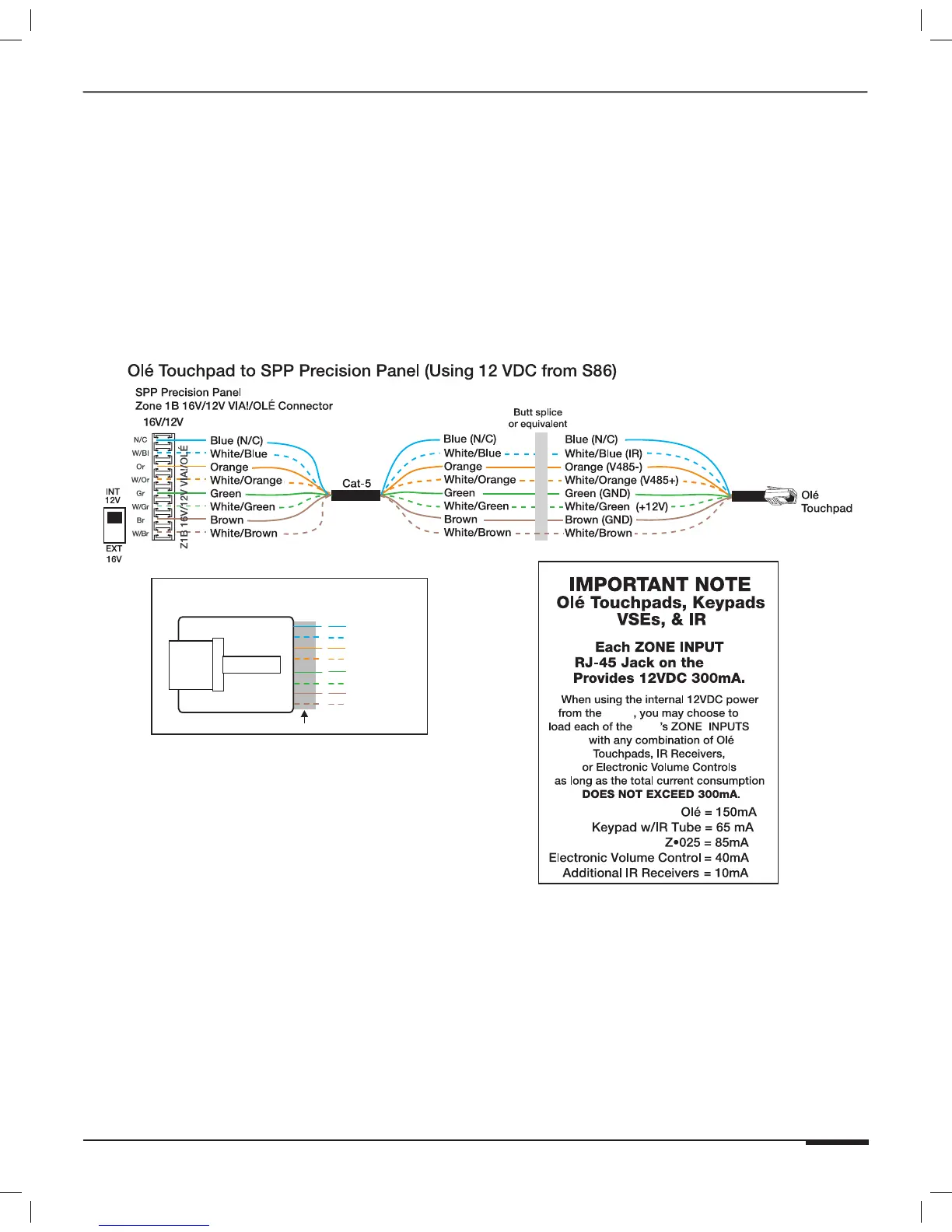

Figure 3-8: Olé Touchpad “B” Internal 12VDC Connections
