Components of the EPIR3 security system
4
2
3
1
5
7
INSIDE VIEW
GSM
16
12
9
13
10
11
8
6
12
14
13 17
15
18
3
8
14
BACK SIDE
BELL+
Z2
BELL-/COM
BELL+
Z2
BELL-/COM
1

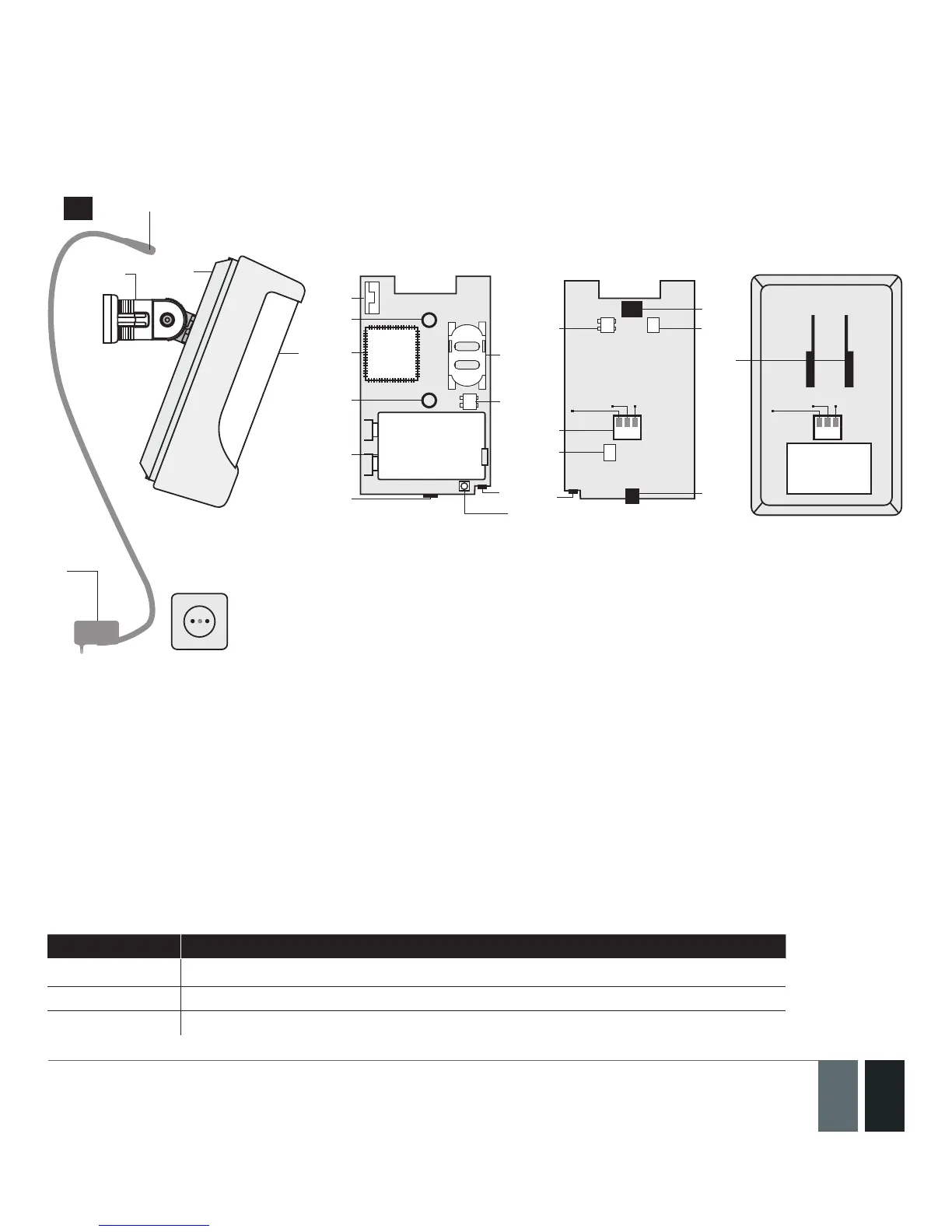

1. EPIR3 holder for xing on the wall
2. Lens for movement detector and LED
3. Power supply socket
4. AC/DC power supply
5. Power supply connection lead
6. Reset button to restore default parameters
7. Holder to x the unit in place
8. Mini-USB connector to allow programming via your PC
9. Holder for SIM card
10. GSM module
11. Back-up battery in case of mains power supply
failure
12. Motion detector to sense possible intruders
13. TAMPER button to alert you if anyone interferes
with the unit
14. Microphone to allow you to listen in to an incident
using your mobile phone
15. Wired zone for wired sensor & output for siren or
indicator connection
16. Built-in GSM antenna
17. Fuse F1 model - MINISMDC050F 0.5A
18. Fuse F2 model - MINISMDC020F 0.2A
Connector Description
BELL- / COM Siren output negative terminal / output terminal / common return terminal
Z2 Security zone terminal
BELL+ Siren output positive terminal
