ADL 2010 / 01 20/57 599 72 63-27

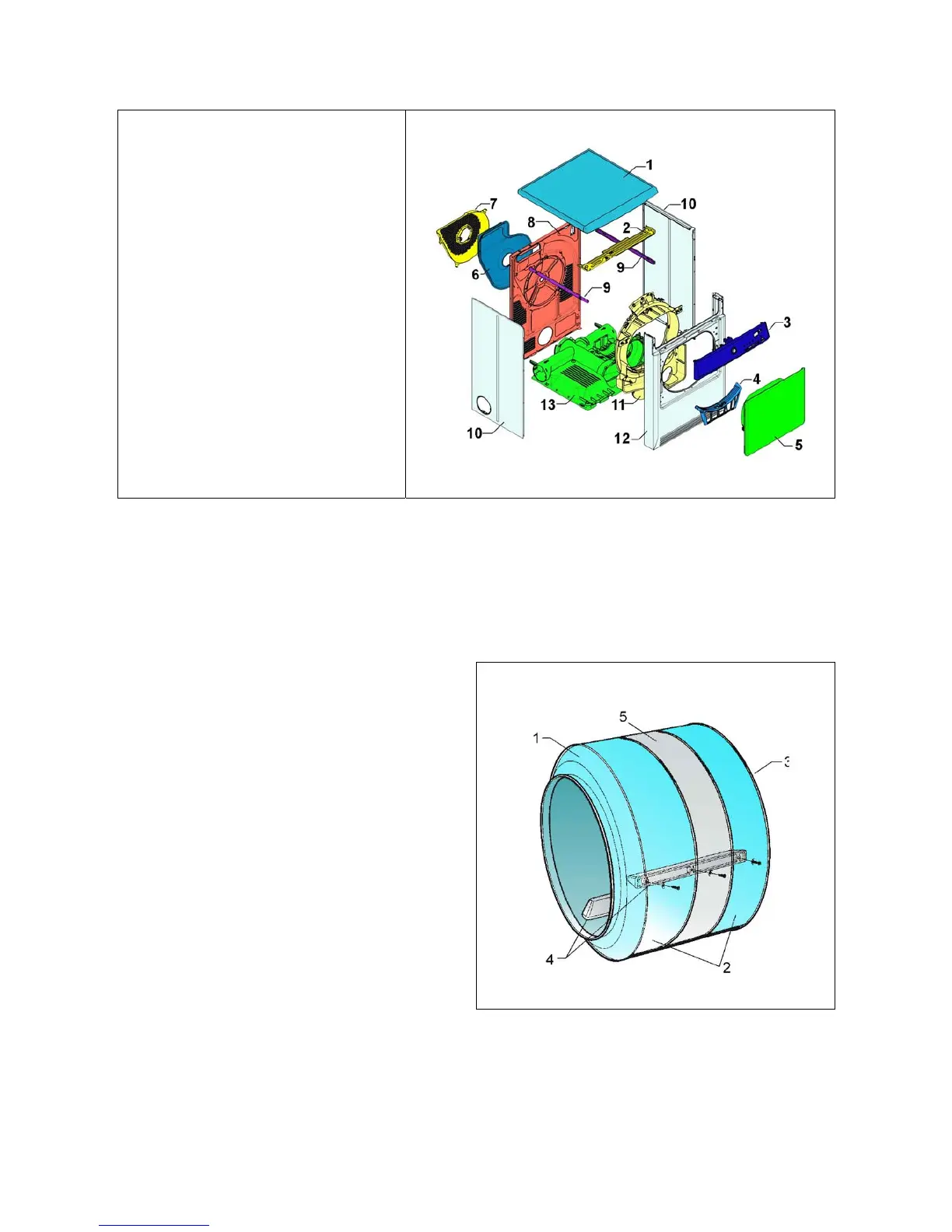

6.2 Construction
1. Worktop
2. Support for controls
3. Control panel
4. Fluff filter
5. Door
6. Back panel cover
7. Back panel cover guard
8. Back panel
9. Crossbar
10. Sides
11. Conduit
12. Front
13. Base
The front and sides are made of painted
sheet metal, whereas the back is in zinc-
coated sheet metal. They are fastened
using self-tapping screws and are
connected to the base.
The shaped base, in carboran, supports
all the main elements.
6.3 Drum
The drum is made up of two half-casings, one at the
front and one at the back, joined by a plastic strip
(5).
The fact that the two half-casings are separated
allows the conductivity meter to measure the
conductivity of the washing inside the drum.
Parts 1-2-3 are joined together by crimping.
The plastic blades are fixed to the drum casing using
screws.
Drum components are made of steel plate.
The drum rear pin is fastened onto the rear flange by
means of riveted eyelets.
1. Front flange
2. Drum casing
3. Rear flange
4. Blades
5. Plastic strip
